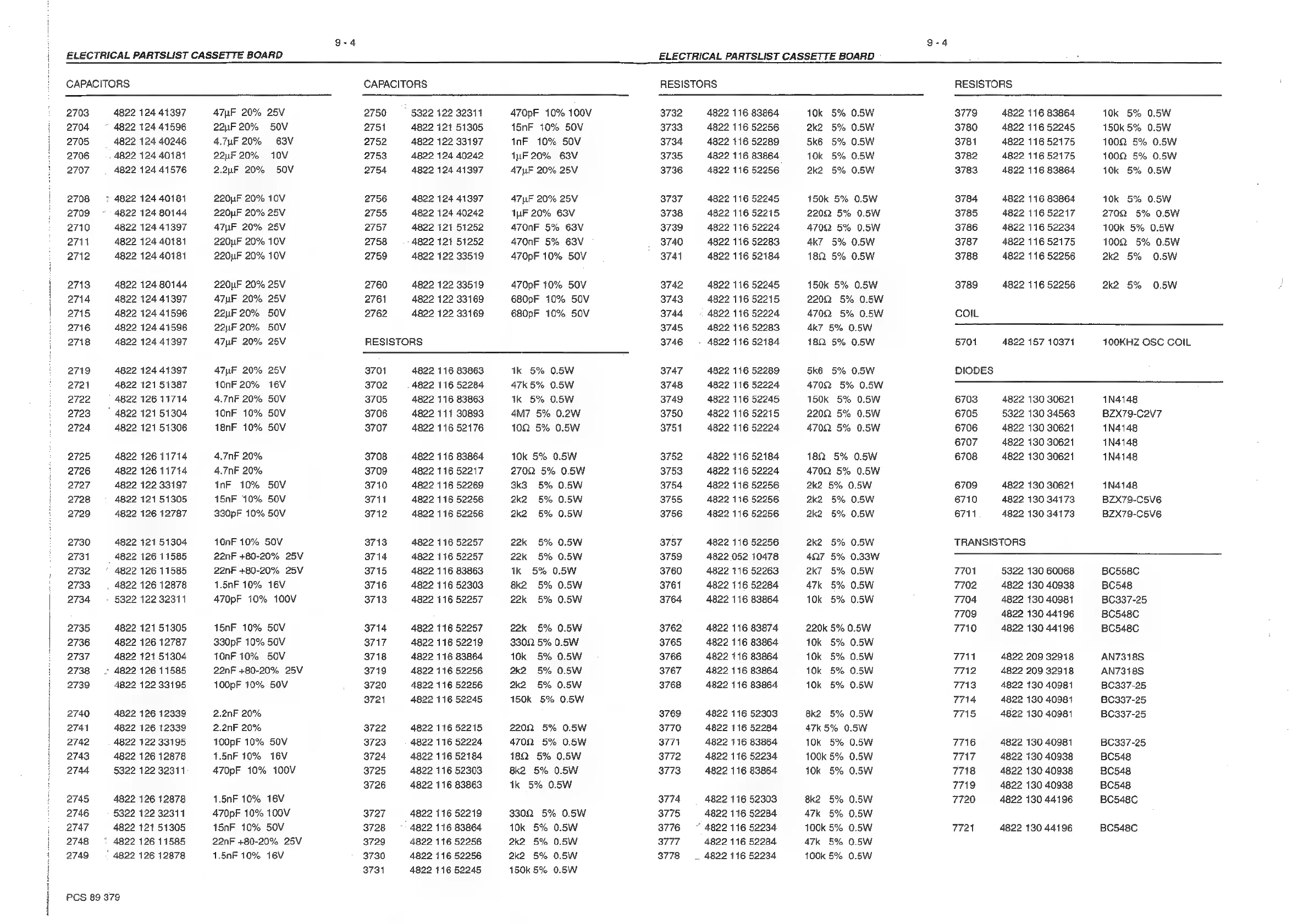

ELECTRICAL PARTSLIST CASSETTE BOARD ELECTRICAL PARTSLIST CASSETTE BOARD
CAPACITORS CAPACITORS RESISTORS RESISTORS
2703 4822. 124 41397 47uF 20% 25V 2750 © 5322 122 32311 470pF 10% 100V 3732 4822 116 83864 10k 5% 0.5W 3779 4822 116 83864 10k 5% 0.5W
2704 © 4822 124 41596 22uF 20% 50V 2751 4822 121 51305 15nF 10% S50V 3733 4822. 116 52256 2k2 5% 0.5W 3780 4822. 116 52245 150k 5% 0.5W
2705 4822 124 40246 4.7uF 20% 63V 2752 4822 122 33197 1nF 10% S50V 3734 4822 116 52289 5k6 5% 0.5W 3781 4822 116 52175 1002 5% 0.5W
2706 == 4822. 124 40181 22uF 20% 10V 2753 4822 124 40242 1uF 20% 63V 3735 4822. 116 83864 10k 5% 0.5W 3782 4822 116 52175 1002 5% 0.5W
2707 = 4822. 124 41576 2.2uF 20% 50V 2754 4822 124 41397 47uUF 20% 25V 3736 4822 116 52256 2k2 5% 0.5W 3783 4822 116 83864 10k 5% 0.5W
2708 = 4822. 124. 40181 220uF 20% 10V 2756 4822 124 41397 A7uF 20% 25V 3737 4822 116 52245 150k 5% 0.5W 3784 4822 116 83864 10k 5% 0.5W
2709 «= 4822. 124. 80144 220uF 20% 25V 2755 4822 124 40242 1uF 20% 63V 3738 4822 116 52215 2202 5% 0.5W 3785 4822 116 52217 2702 5% 0.5W
2710 4822. 124 41397 47uF 20% 25V 2757 =. 4822 121 51252 470nF 5% 63V 3739 4822 116 52224 4702 5% 0.5W 3786 © 4822. 116 52234 100k 5% 0.5W
2711 4822 124 40181 220uF 20% 10V 2758 = 4822. 121 51252 470nF 5% 63V 3740 4822 116 52283 4k7 5% 0.5W 3787 4822 116 52175 1002 5% 0.5W
2712 = 4822 124 40181 220uF 20% 10V 2759 4822 122 33519 470pF 10% 50V 3741 4822 116 52184 182 5% 0.5W 3788 4822 116 52256 2k2 5% 0.5W
| 2713 4822 124 80144 220uF 20% 25V 2760 4822 122 33519 470pF 10% 50V 3742 4822 116 52245 150k 5% 0.5W 3789 4822 116 52256 2k2 5% 0.5W
| 2714-4822 124 41397 47uF 20% 25V 2761 4822 122 33169 680pF 10% 50V 3743 4822. 116 52215 2202 5% 0.5W
| 2715 4822 124 41596 22uF 20% 50V 2762 4822 122 33169 680pF 10% 50V 3744 © 4822 116 52224 4702 5% 0.5W COIL
2716 4822 124 41596 22uF 20% 50V 3745 4822 116 52283 4k7 5% 0.5W
2718 4822 124 41397 A7pF 20% 25V RESISTORS 3746 © 4822 116 52184 18Q 5% 0.5W 5701 4822 157 10371 100KHZ OSC COIL
2719 4822: 124 41397 47pF 20% 25V 3701 4822 116 83863 1k 5% 0.5W 3747 4822 116 52289 5k6 5% 0.5W DIODES
2721 4822 121 51387 10nF 20% 16V 3702 = 4822. 116 52284 47k 5% 0.5W 3748 = 4822 116 52224 4702 5% 0.5W
2722 = 4822 126 11714 4.7nF 20% 50V 3705 4822 116 83863 1k 5% 0.5W 3749 4822 116 52245 150k 5% 0.5W 6703 4822 130 30621 1N4148
2723 = 4822. 12151304 10nF 10% 50V 3706 4822 111 30893 4M7 5% 0.2W 3750 4822 116 52215 2202 5% 0.5W 6705 5822 130 34563 BZX79-C2V7
2724 4822 121 51306 18nF 10% 50V 3707 4822 116 52176 102 5% 0.5W 3751 4822 116 52224 470Q 5% 0.5W 6706 4822 130 30621 1N4148
6707 4822 130 30621 1N4148
2725 4822 126 11714 4.7nF 20% 3708 4822 116 83864 10k 5% 0.5W 3752 4822 116 52184 182 5% 0.5W 6708 4822 130 30621 1N4148
2726 «= 4822. 126 11714 4.7nF 20% 3709 4822. 116 52217 2702 5% 0.5W 3753 4822. 116 52224 470Q 5% 0.5W
2727 4822 122 33197 inF 10% 50V 3710 4822 116 52269 3k3 5% 0.5W 3754 4822 116 52256 2k2 5% 0.5W 6709 4822 130 30621 1N4148
2728 «= 4822 121 51305 15nF 10% 50V 3711 4822 116 52256 2k2 5% 0.5W 3755 4822 116 52256 2k2 5% 0.5W 6710 4822 130 34173 BZX79-C5V6
2729 4822 126 12787 330pF 10% 50V 3712 4822 116 52256 2k2 5% 0.5W 3756 4822 116 52256 2k2 5% 0.5W 6711 4822 130 34173 BZX79-C5V6
2730 4822: 121 51304 10nF 10% 50V 3713 4822 116 52257 22k 5% 0.5W 3757 4822 116 52256 2k2 5% 0.5W TRANSISTORS
2731 4822 126 11585 22nF +80-20% 25V 3714 4822 116 52257 22k 5% 0.5W 3759 4822 052 10478 407 5% 0.33W
2732 © 4822 126 11585 22nF +80-20% 25V 3715 4822 116 83863 1k 5% 0.5W 3760 4822. 116 52263 2k7 5% 0.5W 7701 5322 130 60068 BCS558C
2733 © 4822: 126 12878 1.5nF 10% 16V 3716 4822 116 52303 8k2 5% 0.5W 3761 4822 116 52284 47k 5% 0.5W 7702 4822 130 40938 BC548
| 2734 = 8322 122 32311 470pF 10% 100V 3713 4822 116 52257 22k 5% 0.5W 3764 4822 116 83864 10k 5% 0.5W 7704 4822 130 40981 BC337-25
i 7709 4822 130 44196 BC548C
2735 4822 121 51305 15nF 10% 50V 3714 4822 116 52257 22k 5% 0.5W 3762 4822. 116 83874 220k 5% 0.5W 7710 4822. 130 44196 BC548C
2736 © 4822 126 12787 330pF 10% 50V 3717 4822 116 52219 3302 5% 0.5W 3765 4822 116 83864 10k 5% 0.5W
2737-4822 121 51304 10nF 10% 50V 3718 4822 116 83864 10k 5% 0.5W 3766 4822 116 83864 10k 5% 0.5W 7711 4822 209 32918 AN7318S
2738 «= 4822 126 11585 22nF +80-20% 25V 3719 4822. 116 52256 2k2 5% 0.5W 3767 4822 116 83864 10k 5% 0.5W 7712 4822 209 32918 AN7318S
| 2739 «= 4822 122 33195 100pF 10% 50V 3720 4822. 116 52256 2k2 5% 0.5W 3768 4822 116 83864 10k 5% 0.5W 7713 4822 130 40981 BC337-25
j 3721 4822 116 52245 150k 5% 0.5W 7714 4822 130 40981 BC337-25
| 2740 4822 126 12839 2.2nF 20% 3769 4822 116 52303 8k2 5% 0.5W 7715 4822 130 40981 BC337-25
| 2741 4822 126 12339 2.2nF 20% 3722 4822. 116 52215 2202 5% 0.5W 3770 4822. 116 52284 47k 5% 0.5W
| 2742 = 4822 122 33195 100pF 10% 50V 3723 © 4822 116 52224 4702 5% 0.5W 3771 4822 116 83864 10k 5% 0.5W 7716 4822 130 40981 BC337-25
| 2743-4822 126 12878 1.5nF 10% 16V 3724 4822. 116 52184 18Q 5% 0.5W 3772 4822. 116 52234 100k 5% 0.5W 7717-4822. 130 40938 BC548
| 2744 5322 122 92311 470pF 10% 100V 3725 4822. 116 52303 8k2 5% 0.5W 3773 4822. 116 83864 10k 5% 0.5W 7718 4822 130 40938 BC548
3726 4822. 116 83863 1k 5% 0.5W 7719 4822 130 40938 BC548
2745 = 4822 126 12878 1.5nF 10% 16V 3774 4822 116 52303 8k2 5% 0.5W 7720 4822 130 44196 BC548C
2746 «= 5322 122 32311 470pF 10% 100V 3727 4822. 116 52219 3302 5% 0.5W 3775 4822. 116 52284 47k 5% 0.5W
2747 = 4822 121 51305 15nF 10% SOV 3728 © 4822. 116 83864 10k 5% 0.5W 3776 = 4822. 116 52234 100k 5% 0.5W 7721 4822 130 44196 BC548C
2748 = -4822 126 11585 22nF +80-20% 25V 3729 4822 116 52256 2k2 5% 0.5W 3777 4822 116 52284 47k 5% 0.5W
2749 = 4822 126 12878 1.5nF 10% 16V 3730 4822 116 52256 2k2 5% 0.5W 3778 = 4822 116 52234 100k 5% 0.5W
3731 4822 116 52245 150k 5% 0.5W
