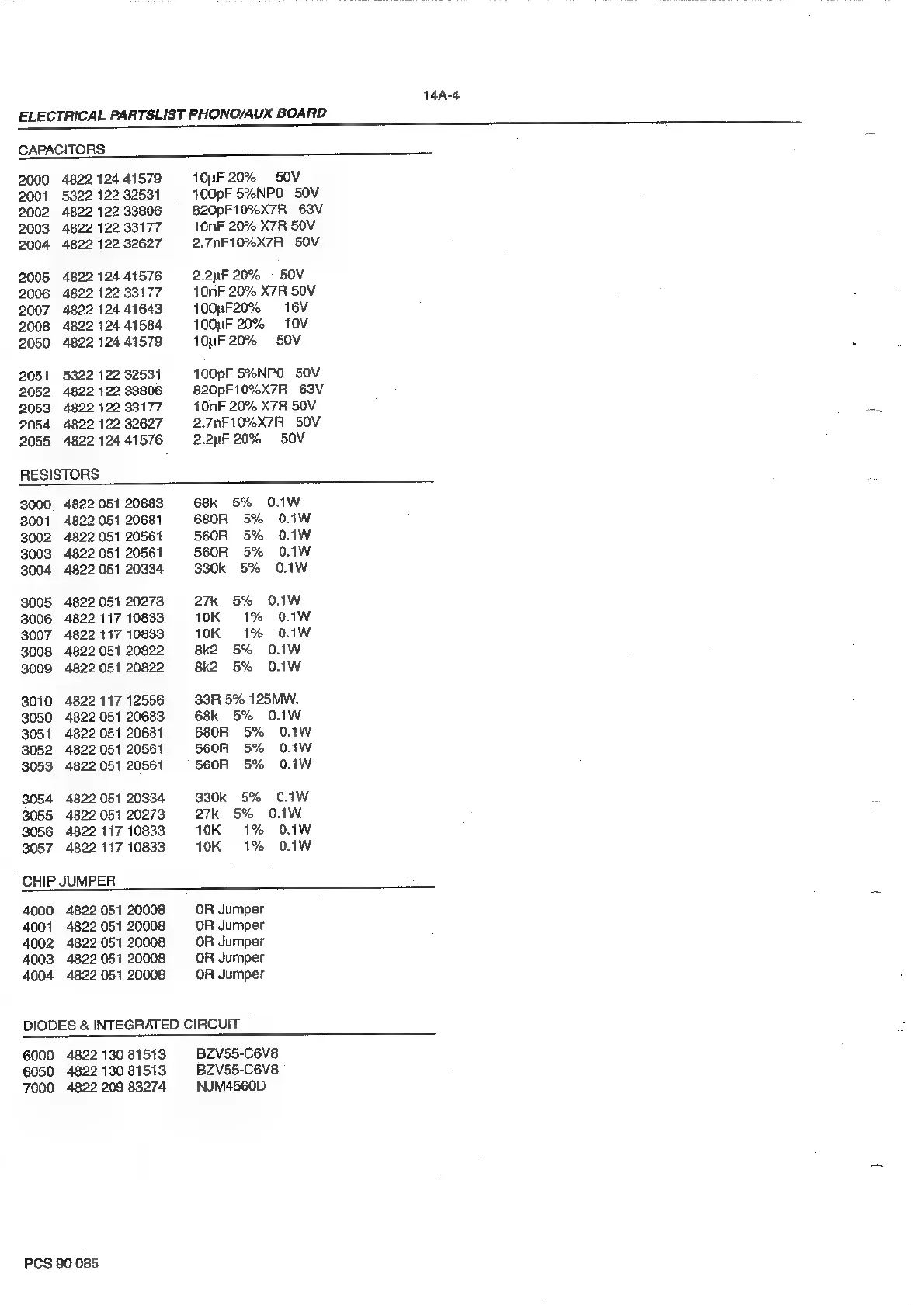

Philips AS660C/41 - Page 83

ELECTRICAL
PARTSLIST
PHONO/AUX
BOARD
CAPACITORS
2000
2001
2002
2003
2004
2005
2006
2007
2008
2050
2051
2052
2053
2054
2055
14A-4
4822 124 41579
9322 122 32531
4822 122 33806
4822 122 33177
4822 122 32627
4822 124 41576
4822 122 33177
4822 124 41643
4822 124 41584
4822 124 41579
5322 122 32531
4822 122 33806
4822 122 33177
4822 122 32627
4822 124 41576
RESISTORS
10uF 20% 50V
100pF 5%NPO SOV
820pF10%X7R 63V
10nF 20% X7R 50V
2.7NF10%X7R_ 5OV
2.2uF 20% - 50V
10nF 20% X7R 50V
100nF20% 16V
1O0WF 20% 10V
10pF 20% 50V
100pF 5%NPO 50V
820pF10%X7R 63V
10nF 20% X7R 50V
2.7nF10%X7R_ SOV
2.2uF 20% 50V
3000
3001
3002
3003
3004
3005
3006
3007
3008
3009
3010
3050
3051
3052
3053
3054
3055
3056
3057
4822 051 20683
4822 051 20681
4822 051 20561
4822 051 20561
4822 051 20334
4822 051 20273
4822 117 10833
4822 117 10833
4822 051 20822
4822 051 20822
4822 117 12556
4822 051 20683
4822 051 20681
4822 051 20561
4822 051 20561
4822 051 20334
4822 051 20273
4822 117 10833
4822 117 10833
CHIP JUMPER
68k 5% 0.1W
680R 5% 0.1W
560R 5% 0.1W
560R 5% 0.1W
330k 5% 0.1W
27k 5% 0.1W
10K 1% 0.1W
10K 1% 0.1W
8k2 5% 0.1W
8k2 5% O0.1W
33R 5% 125MW.
68k 5% 0.1W
680R 5% 0.1W
560R 5% 0.1W
560R 5% 0.1W
330k 5% 0.1W
27k 5% 0.1W
10K 1% 0.1W
10K 1% O.1W
4000
4001
4002
4003
4004
4822 051 20008
4822 051 20008
4822 051 20008
4822 051 20008
4822 051 20008
OR Jumper
OR Jumper
OR Jumper
OR Jumper
OR Jumper
DIODES & INTEGRATED CIRCUIT
6000
6050
7000
4822 130 81513
4822 130 81513
4822 209 83274
PCS 90 085
BZV55-C6V8
BZV55-C6V8
NJM4560D
