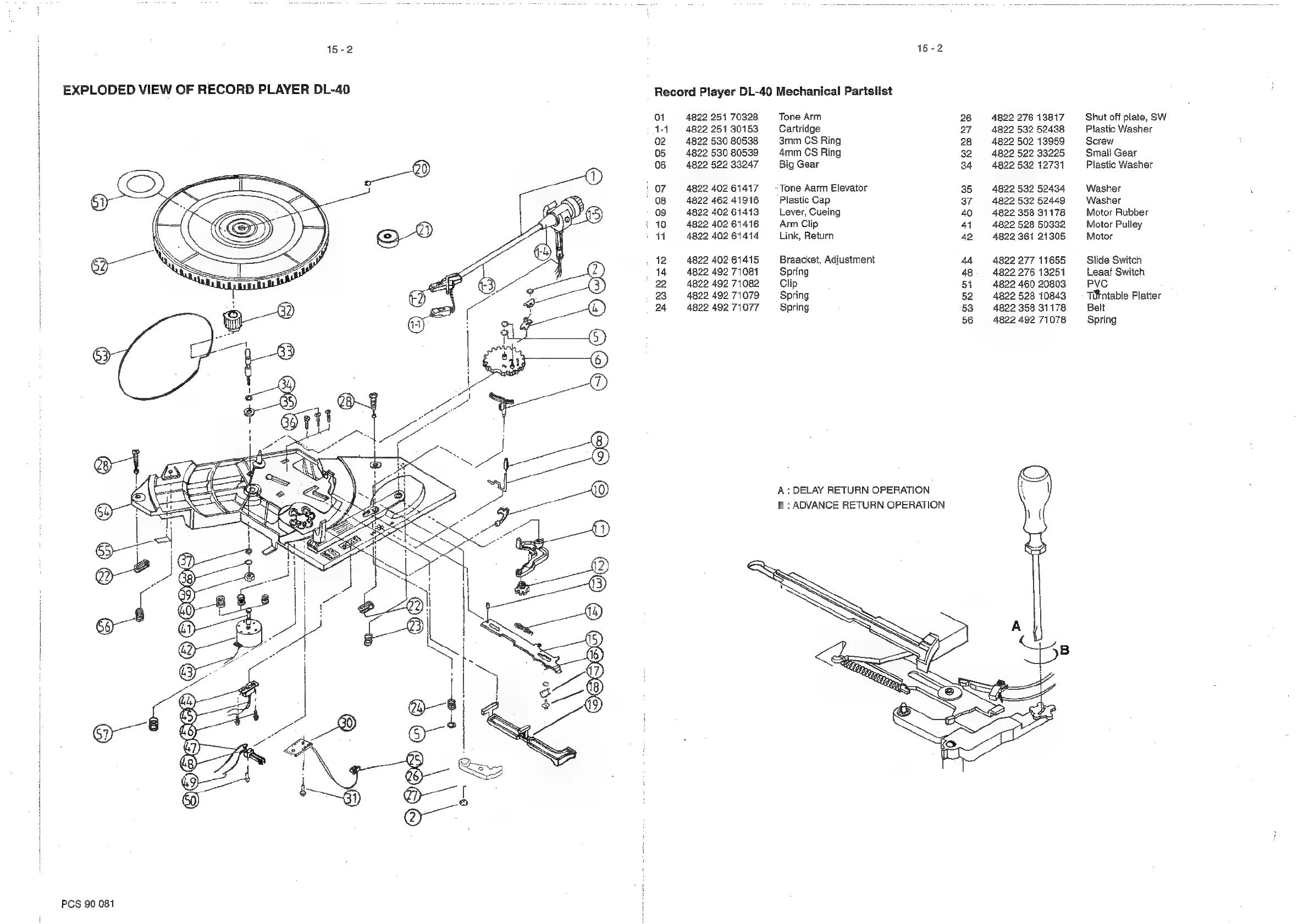

EXPLODED VIEW OF RECORD PLAYER DL-40
PCS 90 081
15-2
Record Player DL-40 Mechanical Partslist
01 4822 251 70328 Tone Arm 26 4822 276 13817
1-1 4822 251 30153 Cartridge 27 4822 532 52438
02 4822 530 80538 3mm CS Ring 28 4822 502 13959
05 4822 530 80539 4mm CS Ring 32 4822 522 33225
06 4822 522 33247 Big Gear 34 4822 532 12731
' 07 4822 40261417 — Tone Aarm Elevator 35 4822 532 52434
08 4822 462 41916 Plastic Cap 37 4822 532 52449
og 4822 402 61413 Lever, Cueing 40 4822 358 31178
‘10 4822 402 61416 Arm Clip 4 4822 528 50332
W 4822 402 61414 Link, Return 42 4822 361 21305
, 12 4822 402 61415 Braacket, Adjustment 44 4822 277 11655
14 4822 492 71081 Spring 48 4822 276 13251
22 4822 492 71082 Clip 51 4822 460 20803
23 4822 492 71079 Spring 52 4822 528 10843
24 4822 492 71077 Spring 53 4822 358 31178
56 4822 492 71078
A: DELAY RETURN OPERATION
B : ADVANCE RETURN OPERATION
Shut off plate, SW
Plastic Washer
Screw
Small Gear
Plastic Washer
Washer
Washer
Motor Rubber
Motor Pulley
Motor
Slide Switch
Leaaf Switch
PVC
TWintable Platter
Belt
Spring
