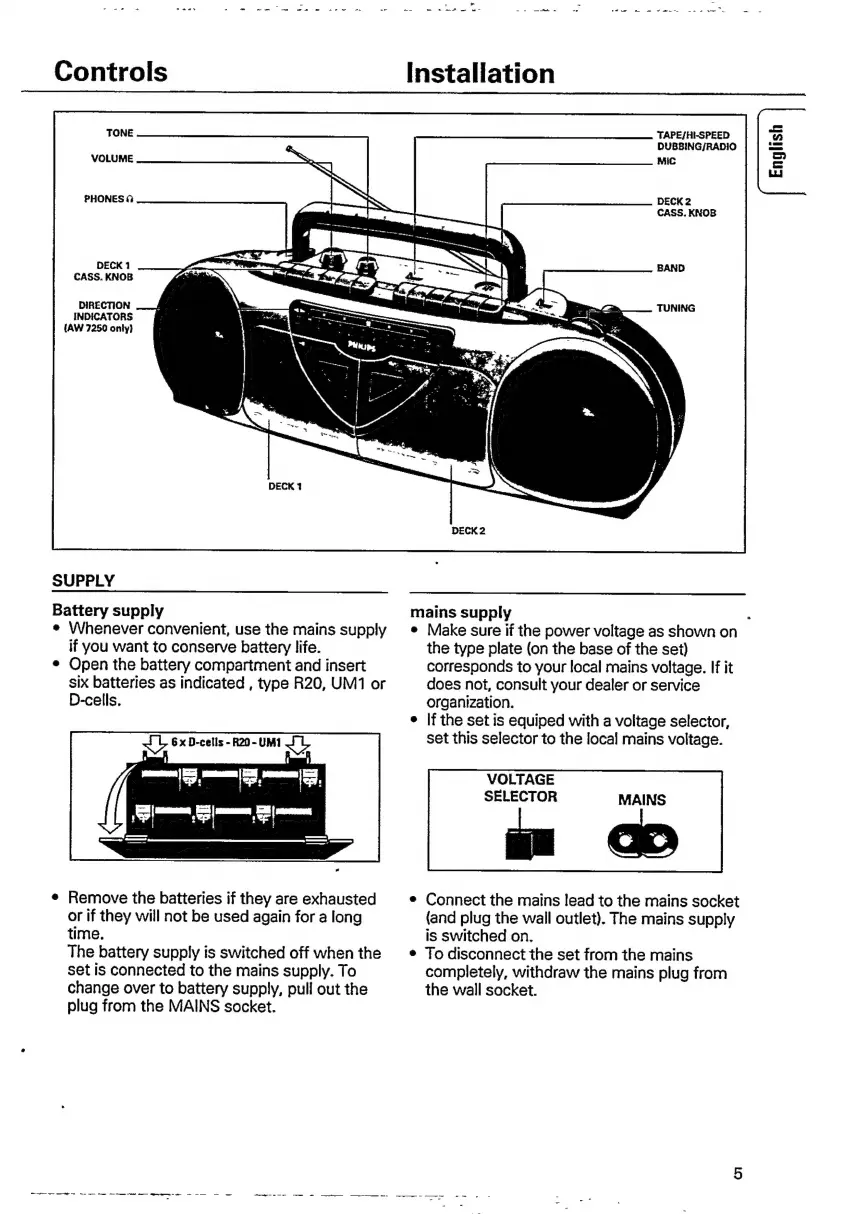

Controls
TONE
VOLUME
PHONES à
DECK 1
CASS. KNOB
DIRECTION
INDICATORS
{AW 7250 only}
SUPPLY
Battery supply
e Whenever convenient, use the mains supply
if you want to conserve battery life.
e Open the battery compartment and insert
six batteries as indicated , type R20, UM1 or
D-cells.
6 x D-cells - R20 - UM1
—S—H—SS,
A
e Remove the batteries if they are exhausted °
or if they will not be used again for a long
time.
The battery supply is switched off when the e
set is connected to the mains supply. To
change over to battery supply, pull out the
plug from the MAINS socket.
een e —=— -. — — — — (000 eee --— — =
vë e = + e Ln ` -
TAPE/HI-SPEED
DUBBING/RADIO
MIC
English
DECK 2
CASS. KNOB
mains supply ;
e Make sure if the power voltage as shown on
the type plate (on the base of the set)
corresponds to your local mains voltage. If it
does not, consult your dealer or service
organization.
If the set is equiped with a voltage selector,
set this selector to the local mains voltage.
VOLTAGE
SELECTOR
a
Connect the mains lead to the mains socket
(and plug the wall outlet). The mains supply
is switched on.
To disconnect the set from the mains
completely, withdraw the mains plug from
the wall socket.
