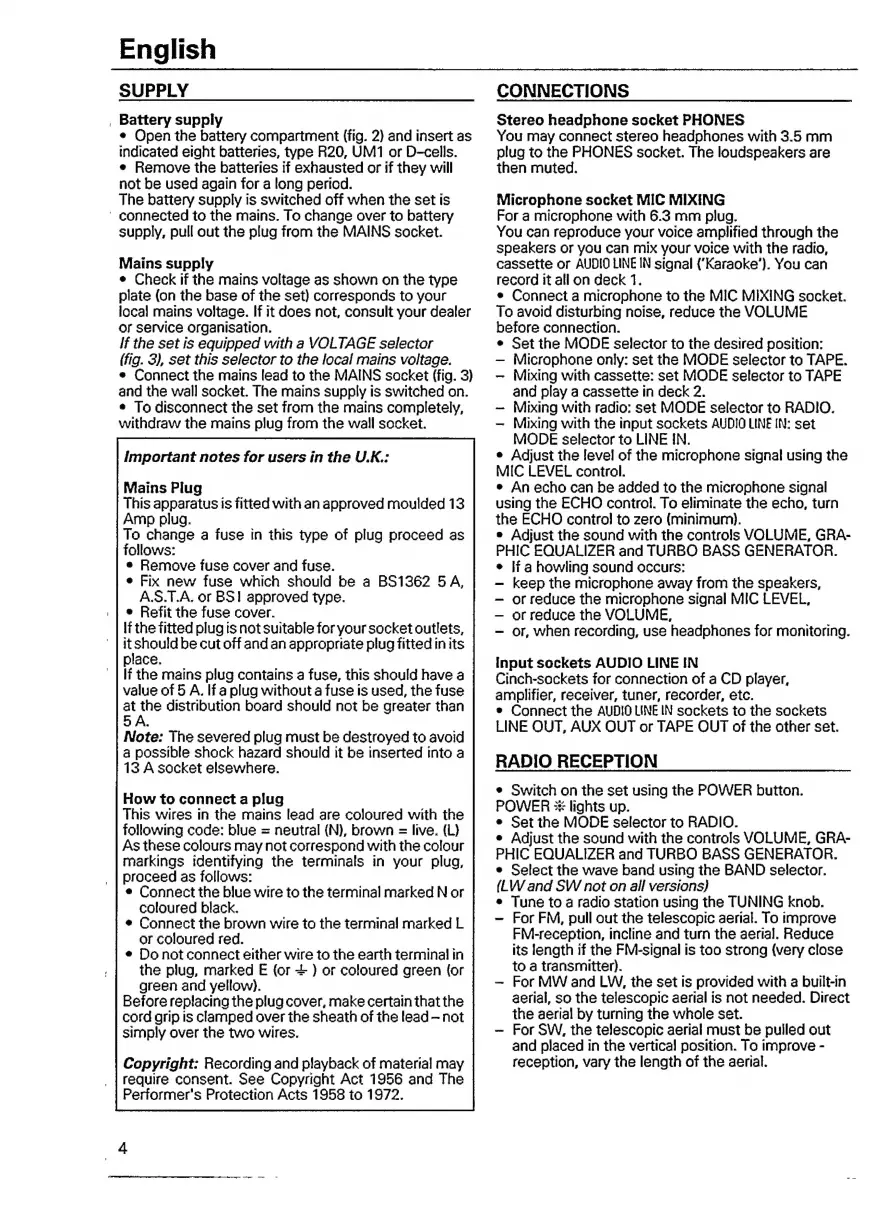

SUPPLY
, Battery supply
e Open the battery compartment (fig. 2) and insert as
indicated eight batteries, type R20, UM1 or D-cells.
e Remove the batteries if exhausted or if they will
not be used again for a long period.
The battery supply is switched off when the set is
' connected to the mains. To change over to battery
supply, pull out the plug from the MAINS socket.
Mains supply
e Check if the mains voltage as shown on the type
plate (on the base of the set) corresponds to your
local mains voltage. If it does not, consult your dealer
or service organisation.
If the set is equipped with a VOLTAGE selector
(fig. 3), set this selector to the local mains voltage.
e Connect the mains lead to the MAINS socket (fig. 3)
and the wall socket. The mains supply is switched on.
e To disconnect the set from the mains completely,
withdraw the mains plug from the wall socket.
Important notes for users in the U.K.:
Mains Plug
This apparatus is fitted with an approved moulded 13
Amp plug.
To change a fuse in this type of plug proceed as
follows:
e Remove fuse cover and fuse.
e Fix new fuse which should be a BS1362 5A,
ASTA or BS! approved type.
e Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets,
ol be cut off and an appropriate plug fitted in its
place.
lf the mains plug contains a fuse, this should have a
value of 5 A. If a plug without a fuse is used, the fuse
at Sc distribution board should not be greater than
БА.
Note: The severed plug must be destroyed to avoid
a possible shock hazard should it be inserted into a
13 A socket elsewhere.
How to connect a plug
This wires in the mains lead are coloured with the
following code: blue = neutral (N), brown = live. (L)
As these colours may not correspond with the colour
markings identifying the terminals in your plug,
proceed as follows:
e Connect the blue wire to the terminal marked N or
coloured black.
e Connect the brown wire to the terminal marked L
or coloured red.
e Do not connect either wire to the earth terminal in
the plug, marked E (or + ) or coloured green (or
green and yellow).
Before replacing the plug cover, make certain that the
cord grip is clamped over the sheath of the lead – пої
simply over the two wires.
Copyright: Recording and playback of material may
require consent. See Copyright Act 1956 and The
Pertormer's Protection Acts 1958 to 1972.
CONNECTIONS
Stereo headphone socket PHONES
You may connect stereo headphones with 3.5 mm
plug to the PHONES socket. The loudspeakers are
then muted.
Microphone socket MIC MIXING
For a microphone with 6.3 mm plug.
You can reproduce your voice amplified through the
speakers or you can mix your voice with the radio,
cassette or AUDIO LINE IN signal (‘Karaoke’). You can
record it all on deck 1.
e Connect a microphone to the MIC MIXING socket.
To avoid disturbing noise, reduce the VOLUME
before connection.
e Set the MODE selector to the desired position:
— Microphone only: set the MODE selector to ТАРЕ.
— Mixing with cassette: set MODE selector to TAPE
and play a cassette in deck 2.
— Mixing with radio: set MODE selector to RADIO.
— Mixing with the input sockets AUDIO LINE IN: set
MODE selector to LINE IN.
e Adjust the level of the microphone signal using the
MIC LEVEL control.
e Ап echo can be added to the microphone signal
using the ECHO contro!. To eliminate the echo, turn
the ECHO contro! to zero (minimum).
e Adjust the sound with the controls VOLUME, GRA-
PHIC EQUALIZER and TURBO BASS GENERATOR.
• lía howling sound occurs:
keep the microphone away from the speakers,
or reduce the microphone signal MIC LEVEL,
or reduce the VOLUME,
or, when recording, use headphones for monitoring.
input sockets AUDIO LINE IN
Cinch-sockets for connection of a CD player,
amplifier, receiver, tuner, recorder, etc.
e Connect the AUDIO LINE IN sockets to the sockets
LINE OUT, AUX OUT or TAPE OUT of the other set.
RADIO RECEPTION
e Switch on the set using the POWER button.
POWER = lights up.
e Set the MODE selector to RADIO.
e Adjust the sound with the controls VOLUME, GRA-
PHIC EQUALIZER and TURBO BASS GENERATOR.
e Select the wave band using the BAND selector.
(LW and SW not on all versions)
e Tune to a radio station using the TUNING knob.
– For FM, pull out the telescopic aerial. To improve
FM-reception, incline and turn the aerial. Reduce
its length if the FM-signal is too strong (very close
to a transmitter).
– For MW and LW, the set is provided with a built-in
aerial, so the telescopic aerial is not needed. Direct
the aerial by turning the whole set.
~ For SW, the telescopic aerial must be pulled out
and placed in the vertical position. To improve -
reception, vary the length of the aerial.
