9
2. Setting up the monitor

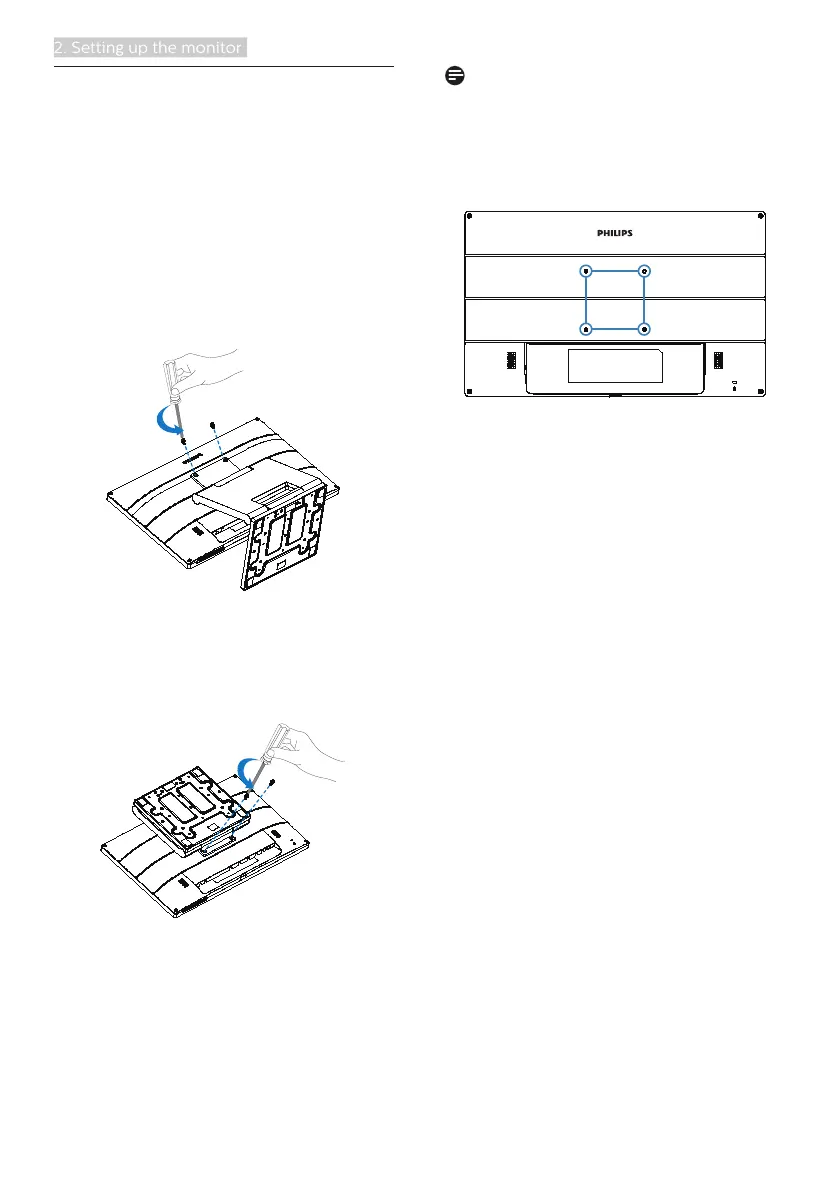

2.3 Remove the Base Assembly
for VESA Mounting
Before you start disassembling the
monitor base, please follow the
instructions below to avoid any possible
damage or injury.
1. Place the monitor face down on a
smooth surface. Pay attention not
to scratch or damage the screen.
Then use a screwdriver to remove
the screws.
2. Move the stand into position
as shown in picture. Then use a
screwdriver to remove the screws,
and then detach the stand from the
monitor.
Note
This monitor accepts a 100mm x 100mm
VESA-Compliant mounting interface.
VESA Mounting Screw M4. Always
contact manufacturer for wall-mount
installation.
100mm
100mm
