C2 Series
Recessed Emergency Lighting
Page 2 of 2
Philips Lightolier
e: lol.webmaster@philips.com
t: (508) 679-8131
w: www.lightolier.com
C2 Series May 29, 2012
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2012. All rights reserved.
Job Information Type:
Ordering Information
C2 = Recessed
Emergency
Lighting Unit
Series
Note
1) Some option combinations may impact UL listing. Consult factory for specifics.
2) 15 minute delay.
C2
1= One
2 = Two
3= Three
4 = Four
Blank= No
Heads
# of Heads
T1 = 120 VAC Time Delay
2
T2 = 277 VAC Time Delay
2
V = Voltmeter
A = Ammeter
F1 = 120 VAC Fuse
F2 = 277 VAC Fuse
P1 = 120 VAC Power Switch
P2 = 277 VAC Power Switch
Factory Installed Options
1
1 = 6 V
2 = 12 V
DC Voltage
6 V Lead Calcium
25L = 25 W Unit
50L = 50 W Unit
6 V Nickel Calcium
14N = 14 W Unit
25N = 25 W Unit
12 V Lead Calcium
50L = 50 W Unit
12 V Nickel Calcium
25N = 25 W Unit
50N = 50 W Unit
Battery
6V Round Wedge Base
RT6 = 5.4 W Tungsten
RT7 = 7.2 W Tungsten
RT9 = 9 W Tungsten
RH7 = 7 W Halogen
RH10 = 10 W Halogen
RH12 = 12 W Halogen
12V Round Wedge Base
RT9 = 9 W Tungsten
RT12 = 12.5 W Tungsten
RT18 = 17.9 W Tungsten
RH12 = 12 W Halogen
Lamp Heads

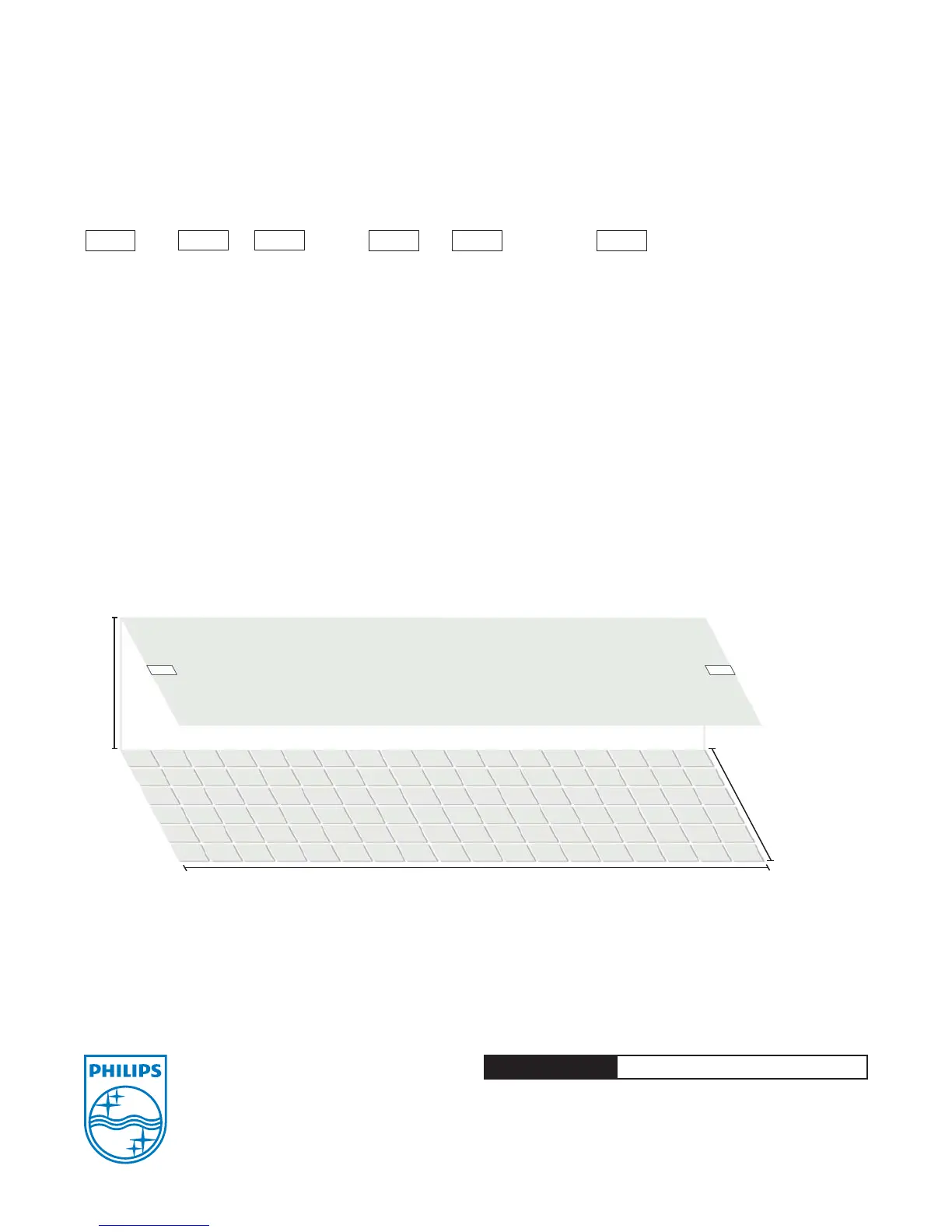

Optics
Wall mounted 10' AFF, ‘RH12’ 6 V 12 W Halogen Lamps Represented
1 FC Average
* The optics layout shown is intended to be used as reference only. Standard reflectances used were 80/50/20. Lightolier is not responsible for site specific conditions that
may alter the results.
10 ft.
18 ft.
(fixture spacing)
6 ft.
Average initial footcandles at floor = 1.05
Maximum initial footcandles at floor = 1.6
Minimum initial footcandles at floor = 0.7
Maximum to minimum ratio = 2.29
.8 .8 .8 .9 .9 .8 .8 .7 .7 .7 .7 .8 .9 .9 .9 .8 .8 .8
.8 .8 .9 .9 .9 .9 .8 .7 .7 .7 .7 .8 .9 .9 .9 .9 .8 .8
1.0 1.1 1.2 1.3 1.3 1.2 1.0 .9 .8 .8 .9 1.1 1.2 1.3 1.3 1.2 1.0 1.0
1.0 1.0 1.1 1.2 1.3 1.2 1.0 .9 .8 .8 .9 1.0 1.2 1.3 1.2 1.2 1.1 1.0
1.1 1.2 1.4 1.5 1.5 1.4 1.2 1.0
.9 .9
1.0 1.2 1.4 1.5 1.5 1.4 1.2 1.1
1.2 1.2 1.5 1.6 1.6 1.4 1.2 1.0
.9 .9
1.0 1.2 1.4 1.6 1.6 1.5 1.3 1.2
