Philips CDR 538 - Operating Buttons and Connections; Front Panel Controls; Rear Panel Connections

6
English
1 ON/OFF . . . . . . . . . turn the CD recorder ON and OFF
2 Disc tray
3 AUTO/MANUAL . . select track numbering method
4 SOURCE. . . . . . . . . select digital or analogue input
5 DISPLAY . . . . . . . . select display information
6 DISPLAY (information screen)
7 ERASE . . . . . . . . . . erase recording
8 FINALIZE . . . . . . . . finalize recording
9 OPEN/CLOSE. . . . . open/close disc tray
0 RECORD. . . . . . . . . record
! CD-SYNC . . . . . . . .synchronized recording (automatic
start when recording)
@ STOP 9 . . . . . . . . . stops
# ∞ . . . . . . . . . . . . . . previous track/search back
$ PLAY 2 . . . . . . . . . start to play or record
% PAUSE ; . . . . . . . .interrupt play
^ § . . . . . . . . . . . . . . next track/search forward/new track
& REC LEVEL . . . . . . adjust the recording level (analogue)
1 Connection to power supply
2 ANALOG IN . . . . . connects to the line output of an
amplifier (left and right)
3 ANALOG OUT. . . . connects to the line input of an
amplifier (left and right)
4 DIGITAL IN . . . . . . connects to the digital coaxial
output of a CD player
5 DIGITAL OUT . . . . connects to the digital coaxial input
of e.g. amplifier or recording device
6 OPTICAL IN . . . . . connects to the digital optical
output of a CD player

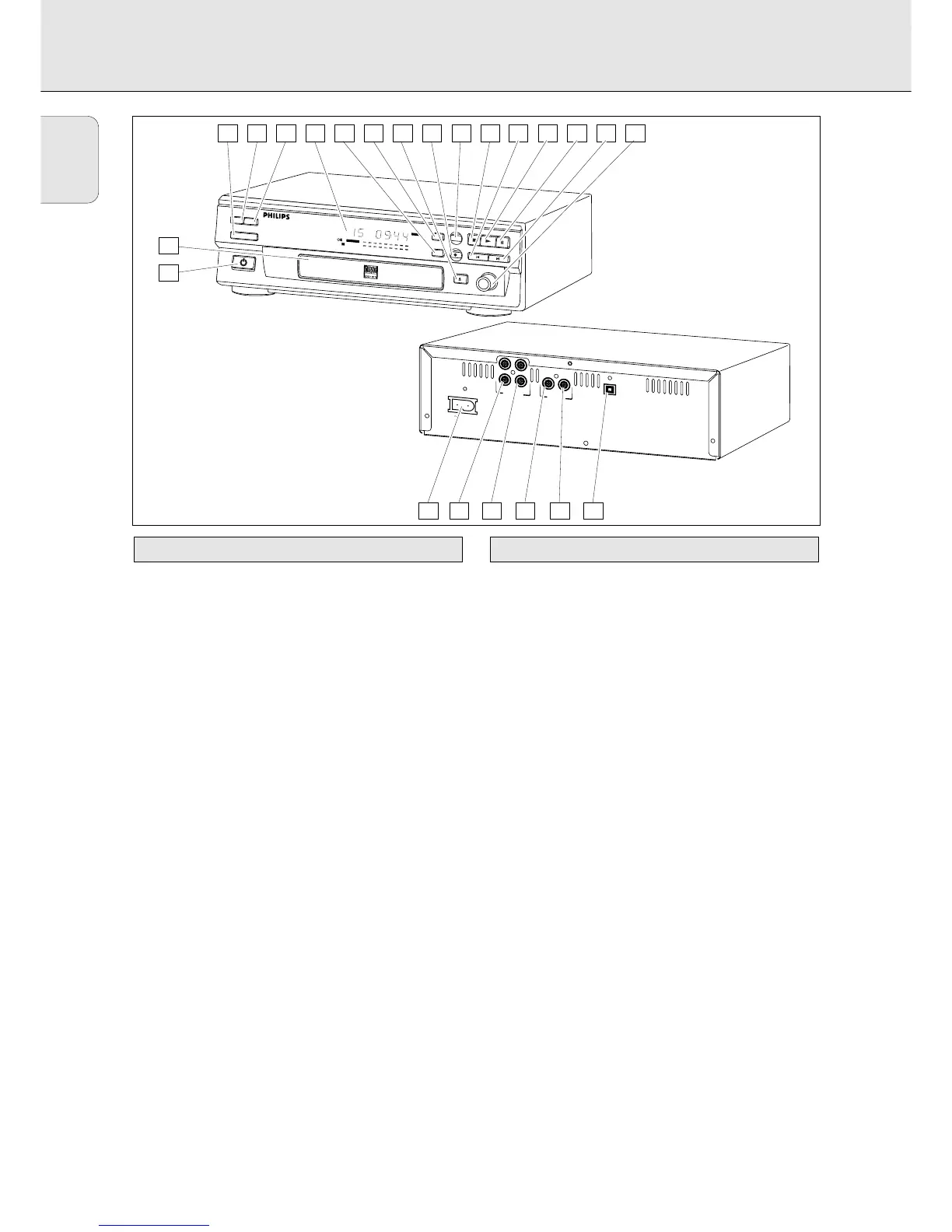

Connections on the backOperating buttons on the front
