Philips CE150 - Page 3

Caution
Ensure that all leads are insulated with electrical tape.
Note
Consult a professional to connect CE150 different from user manual instructions.
1
+
+ +
+
–
– –
–

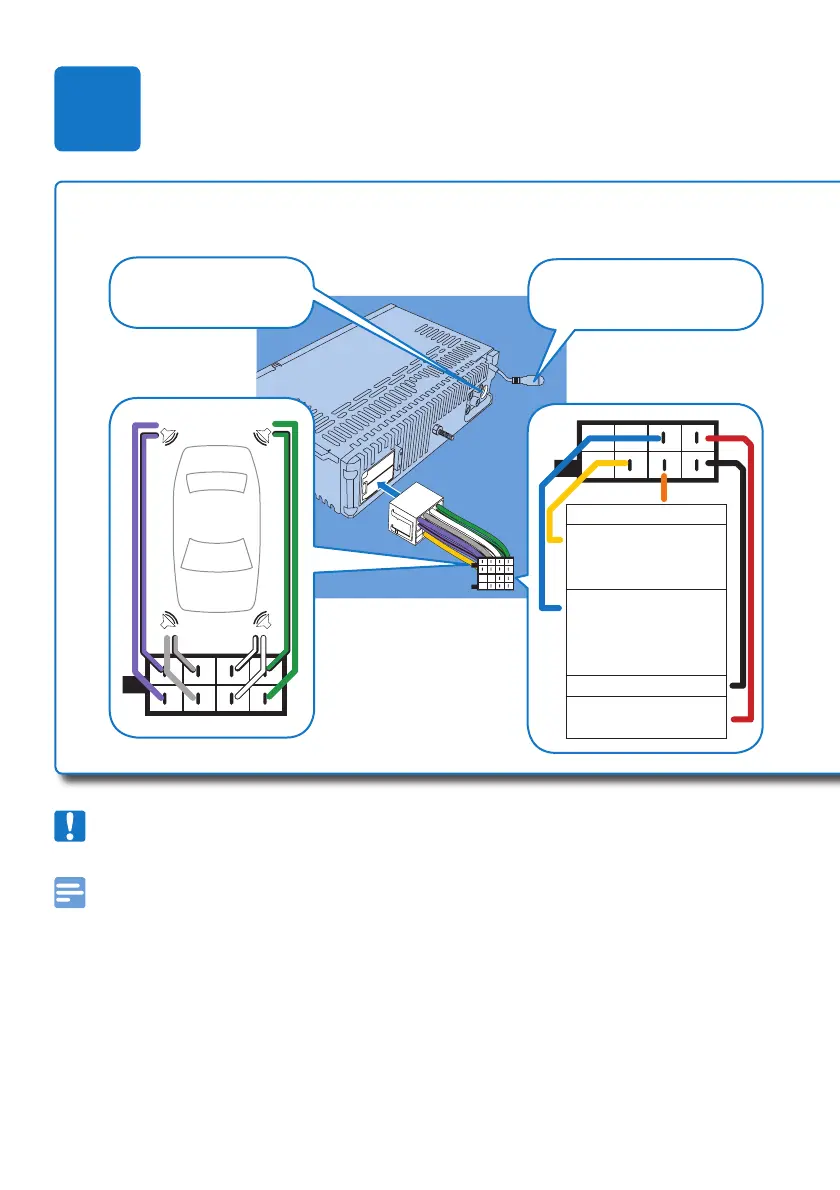

Illumination switch
To the +12V car
battery which is
energized at all time
Motor/electric
antenna relay control
lead/Amplier relay
control lead
Ground
Ignition Key +12V
DC when ON/ACC
Subwoofer
(optional)
Antenna
A
or
Connect
