Philips CED1700/51 - Disassembly Diagram

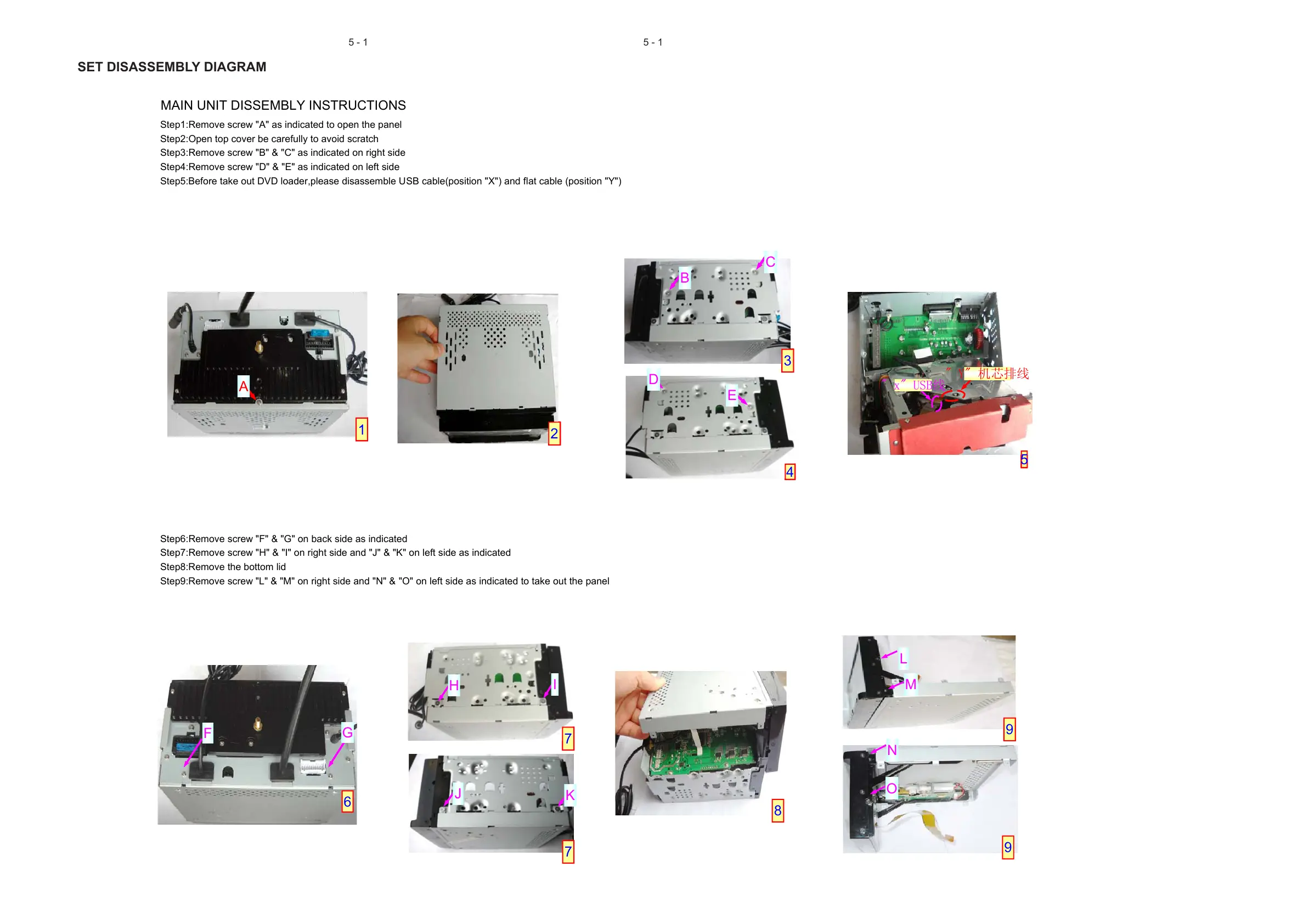

MAIN UNIT DISSEMBLY INSTRUCTIONS
Step1:Remove screw "A" as indicated to open the panel
Step2:Open top cover be carefully to avoid scratch
Step3:Remove screw "B" & "C" as indicated on right side
Step4:Remove screw "D" & "E" as indicated on left side
p
Step5:Before take out DVD loader,please disassemble USB cable(position "X") and fl
at cable (position "Y")
B
C
B
C
3
D
E
A
" Y" 机芯排线
" x" USB
线
2
B
C
3
D
E
4
A
1
" Y" 机芯排线
" x" USB线
5
Step6:Remove screw "F" & "G" on back side as indicated
Step7:Remove screw "H" & "I" on right side and "J" & "K" on left side as indicated
Step8:Remove the bottom lid
Step9:Remove screw "L" & "M" on right side and "N" & "O" on left side as indicated to take out the panel
2
B
C
3
D
E
4
L
A
1
" Y" 机芯排线
" x" USB线
5
2
B
C
3
D
E
4
H
I
7
L
M
9
A
1
F
G
" Y" 机芯排线
" x" USB线
5
2
B
C
3
D
E
4
H
I
7
J
K
L
M
9
N
O
A
1
F
G
6
" Y" 机芯排线
" x" USB线
5
2
B
C
3
D
E
4
H
I
7
J
K
7
8
L
M
9
N
O
9
A
1
F
G
6
" Y" 机芯排线
" x" USB线
5
SET DISASSEMBLY DIAGRAM
5 - 1 5 - 1
