Philips CED370 - Block Diagram

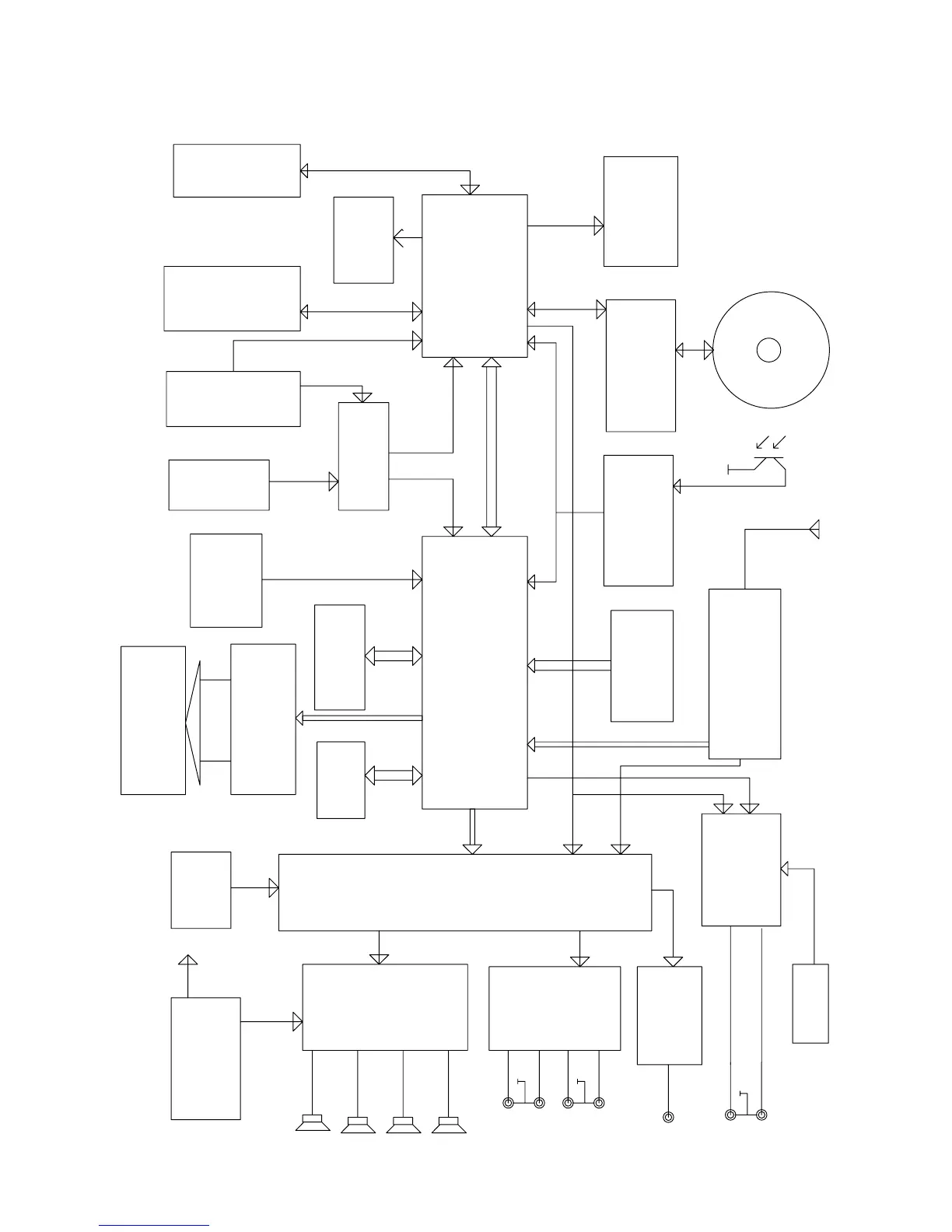

BLOCK DIAGRAM
3-1
MOTO DRIVER
SA5888
OPTICAL PICKUP
DR-28F
DVD-DSP
SPHE8202TQ
EEPROM
24C02
FLASH 32M(bit)
SDROM
2M*16Bit*4Banks
SD/MMC CORD
USB PORT
SD/USD DET
MCU
STM8Audio
KEY/RC
A/D
TFT DRIVER
DPS286
TOPPOLY 3.5" DIGITAL TFT
SPI
A/D
DISC IN/OUT/DET
DISC
PWM
AM/FM TUNER MODUL
CF111LVD-138M
RDS DECORD
TDA7478
ANT
VOL/EQ
TDA7419
VIDEO SWITCH
FMS6502
MP3-LINK
IN
AUDIO
VIDEO/IN
VIDEO AMP.
LINE OUT
VIDEO-OUT1
VIDEO-OUT2
FL-OUT FR-OUT
RL-OUT
RR-OUT
POWER
TDA7388
FL FR
RL
RR
POWER
SUPPLY
MP1584
14.4V
+5V
SD-2.5V
USB-3.5V
SD+USB-2.0V
BT MCS(MB0502)
GPS MODULE
12C
12C
NJM4556
SUB-WOOFER
NJM4556
Audio
Audio
Audio
SUB-WOFFER-OUT
