Philips CM-150 CA - CM-150 CA DIN Rail Mount Specifications

CM-150 CA Product Guide 3

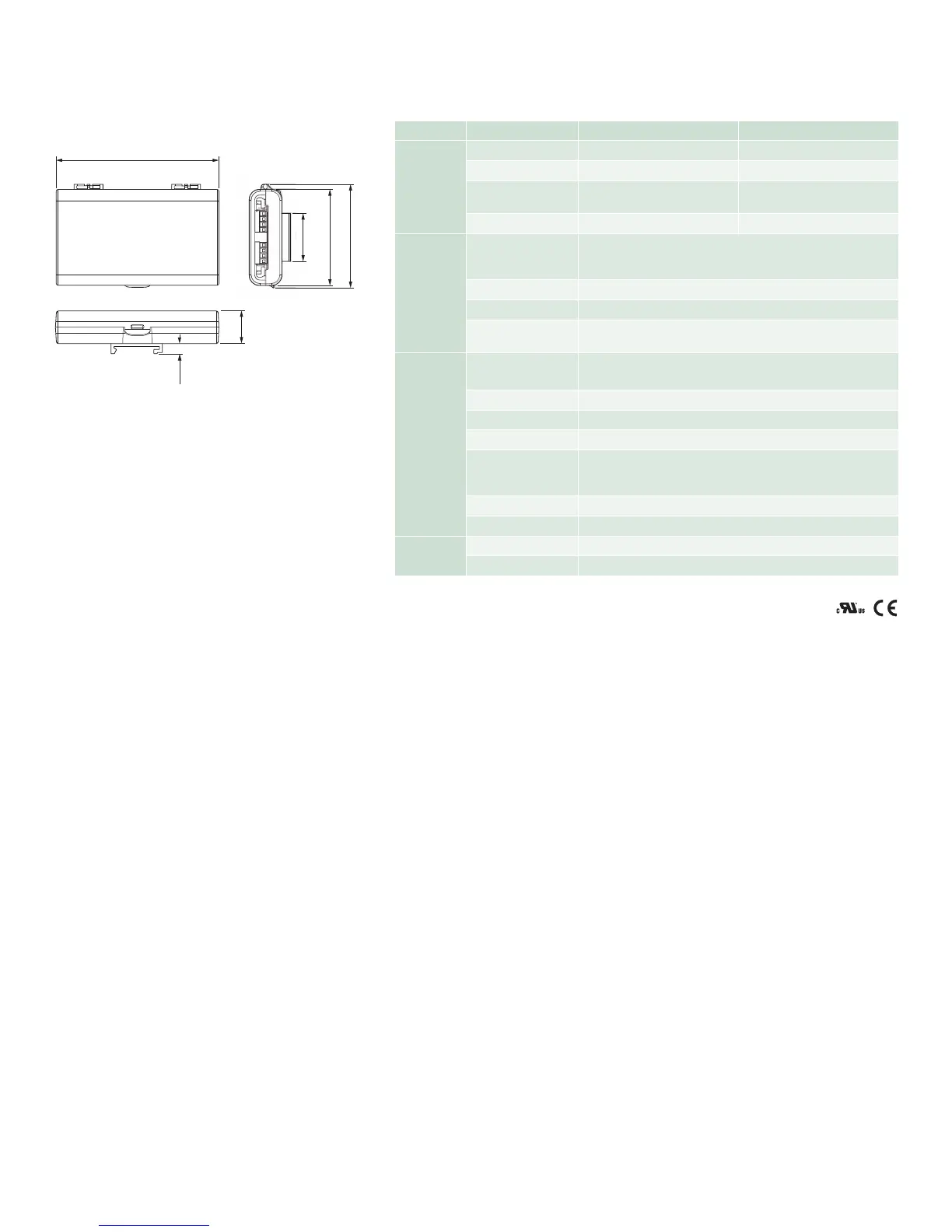

CM-150 CA, DIN Rail Mount Specications
Due to continuous improvements and innovations, specifications may change without notice.
Item Specication 7.5/12V 24V
Electrical
Input Voltage 7.5 VDC or 12 VDC 24 VDC
Power Consumption 3 W 3 W
Power Output
60 W maximum at 7.5 VDC, or
96 W maximum at 12 VDC
150 W maximum at 24 VDC
Fuse (2) 5 A, fast-blow fuses (2) 4 A, fast-blow fuses
Connections
Data Input Source
Philips Color Kinetics full range of controllers, including Light
System Manager, Video System Manager Pro, iPlayer 3, Antumbra
iColor Keypad, and ColorDial Pro, or third-party controllers.
Power Input V+ and GND terminal block
†
Data Input/Output Double-pair, double-entry IDC connectors
‡
Power/Data Output
(To luminaire)
(2) V+, GND, Data+, and Data- terminal blocks
†
, or
(2) V+, GND, and Data terminal blocks
†
Physical
Dimensions
(Height x Width x Depth)
153 x 97 x 31 mm (6 x 3.8 x 1.2 in)
Weight 0.2 kg (0.4 lb)
Housing Material Plastic housing
Mounting DIN rail mountable
Temperature Ranges
-20 to 50 °C (-4 to 122 °F) Startup
-30 to 50 °C (-22 to 122 °F) Operating
-40 to 70 °C (-40 to 158 °F) Storage
Humidity 0 to 95%, non-condensing
Cooling Convection
Certification
and Safety
Certification UL/cUL Recognized, CE
Environment Dry location, IP00
† Terminal block connectors accept wire sizes from 0.5 to 2.1 mm
2
(14 to 20 AWG).
‡ IDC connectors accept wire sizes from 0.326 to 0.129 mm
2
(22 to 26 AWG).
31 mm
(1.2 in)
8.7 mm
(.34 in)
153 mm (6.02 in)
97 mm (3.82 in)
90 mm (3.54 in)
45 mm
(1.77 in)
