Philips CM-150 CA - CM-150 CA Surface Mount Specifications

CM-150 CA Product Guide4

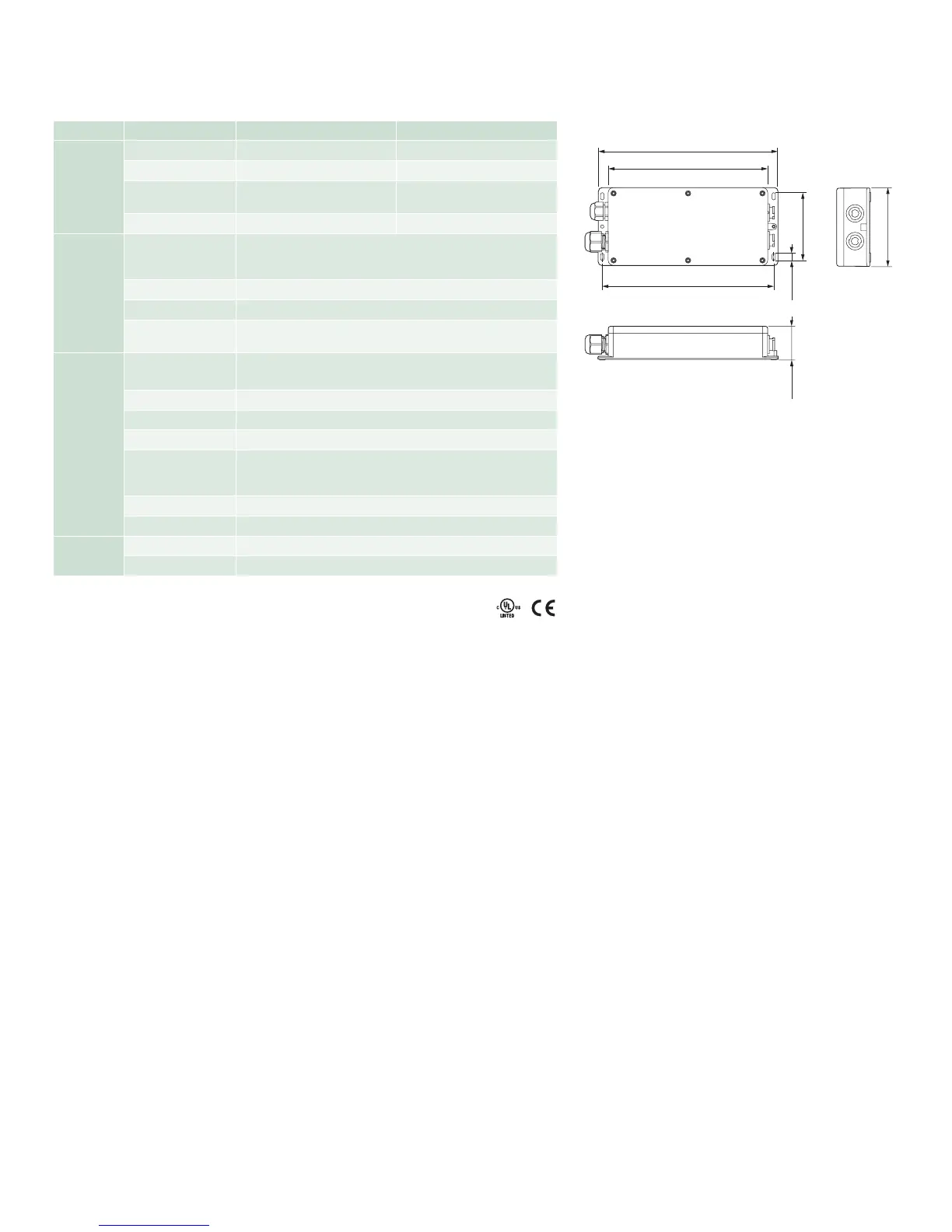

CM-150 CA, Surface Mount Specications
Due to continuous improvements and innovations, specifications may change without notice.
Item Specication 7.5/12V 24V
Electrical
Input Voltage 7.5 VDC or 12 VDC 24 VDC
Power Consumption 3 W at 7.5 VDC or 12 VDC 3 W at 24 VDC
Power Output
60 W maximum at 7.5 VDC, or
96 W maximum at 12 VDC
150 W maximum at 24 VDC
Fuse (2) 5 A, fast-blow fuses (2) 4 A, fast-blow fuses
Connections
Data Input Source
Philips Color Kinetics full range of controllers, including Light
System Manager, Video System Manager Pro, iPlayer 3, Antumbra
iColor Keypad, and ColorDial Pro, or third-party controllers.
Power Input V+ and GND terminal block
†
Data Input/Output Double-pair, double-entry IDC connectors
‡
Power/Data Output
(To luminaire)
(2) three-pin panel mount connectors, or
(2) four-pin panel mount connectors
Physical
Dimensions
(Height x Width x Depth)
208 x 90 x 39 mm (8.2 x 3.5 x 1.5 in)
Weight 0.7 kg (1.6 lb)
Housing Material Die-cast aluminium, powder-coated finish
Mounting Surface mountable
Temperature Ranges
-20 to 50 °C (-4 to 122 °F) Startup
-30 to 50 °C (-22 to 122 °F) Operating
-40 to 80 °C (-40 to 176 °F) Storage
Humidity 0 to 95%, non-condensing
Cooling Convection
Certification
and Safety
Certification UL/cUL, CE
Environment Dry/Damp/Wet Location, IP66
† Terminal block connectors accept wire sizes from 0.5 to 2.1 mm
2
(14 to 20 AWG).
‡ IDC connectors accept wire sizes from 0.326 to 0.129 mm
2
(22 to 26 AWG).
38.5 mm (1.52 in
)
8 mm (0.31 in)
78 mm
(3.07 in)
208 mm (8.19 in)
184 mm (7.24 in)
198 mm (7.8 in)
90 mm (3.54 in)
