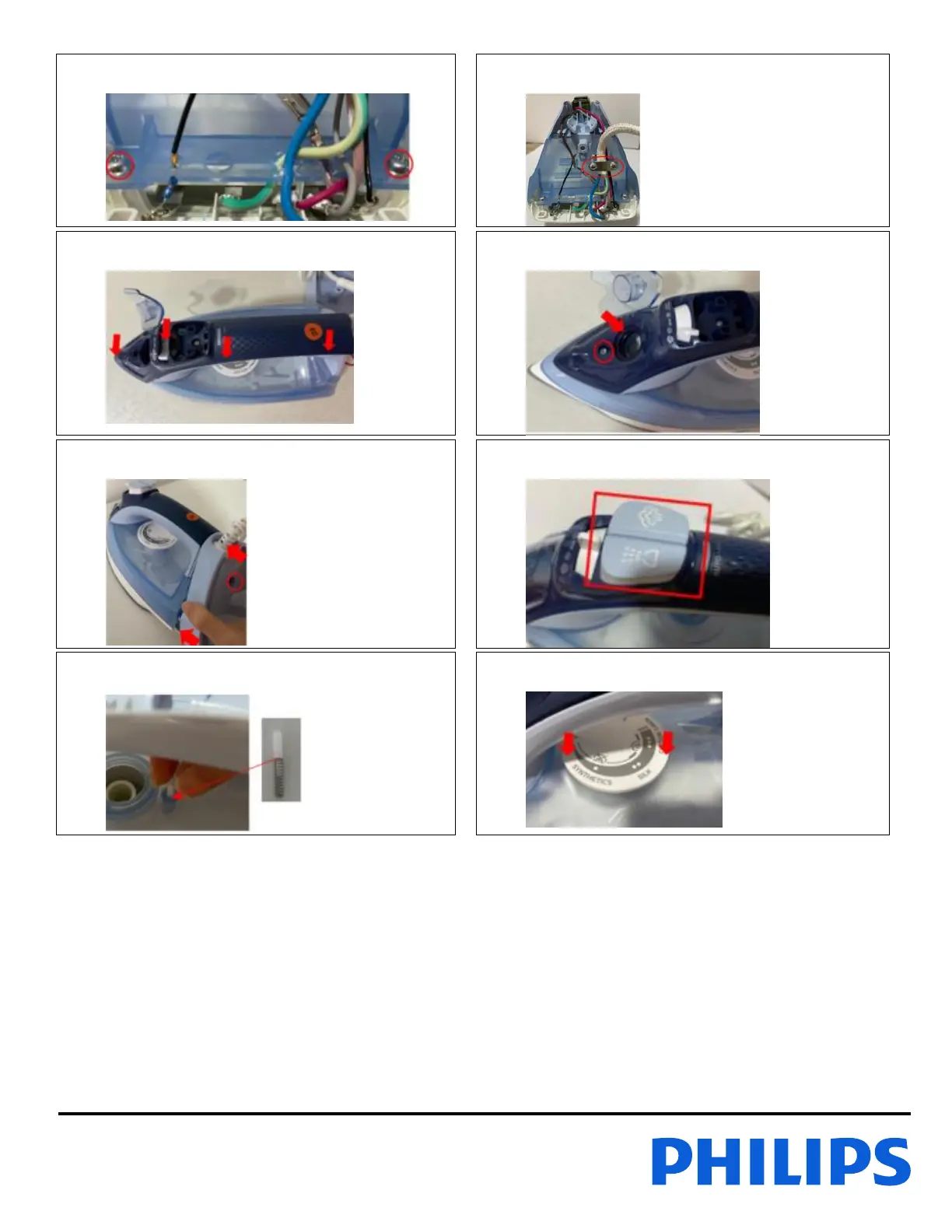

Assemble & fasten 2x Screw D &
dress all wires
8
Assemble Clamping Plate,
Assemble & fasten 2x Screw B
9
Assemble Inlay Assy 9
10
Assemble & fasten Screw C
Assemble Tank Top Seal 3
11
Assemble Ball Swivel 11 and Backplate 10
Assemble & fasten Screw A
12
Assemble SOS Knob 7 & Spray Knob 8
13
Assemble Spring Bullet 14,
assemble Bullet Moulded 13
14
Assemble T’stat Dial prted 12
