Philips DST5040/80 - Disassembly Instructions

Published by Philips Consumer Lifestyle Page 8 of 14 For internal use only
Document No. : CSW-07-081-20617

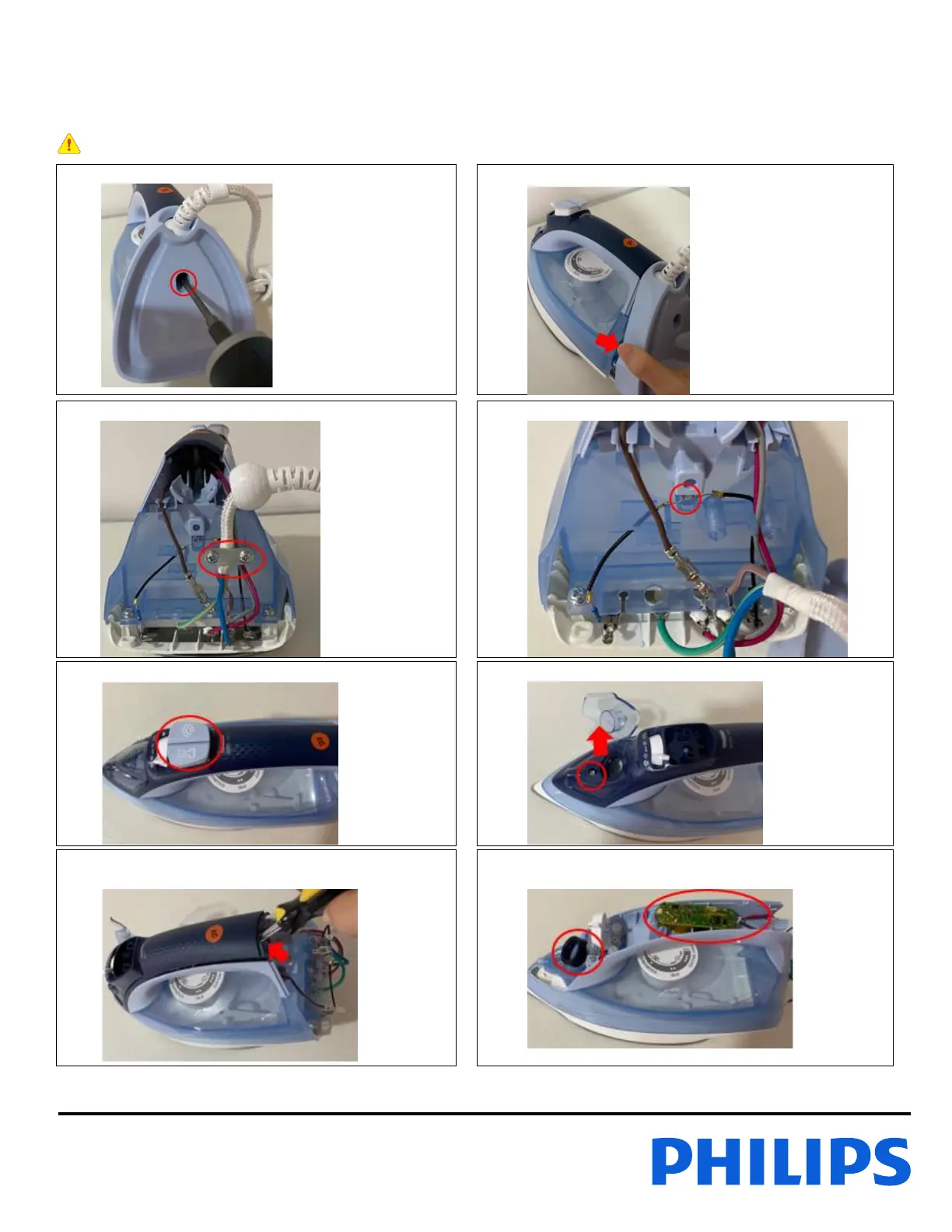

Disassembly Instructions
Before dismantling :
Ensure the plug is disconnected from the mains and Soleplate is not hot.
1
Remove Screw A
2
Remove Backplate 10
3
Remove 2x Screw B & Clamping Plate
4
Remove Lamp Assy 2 & disconect all wires
5
Remove SOS Knob 7 & Spray Knob 8
6
Open up Filling Door, remove Screw C
7
Remove Inlay Assy 9
8
Remove Tank Top Seal 3 &
ASO 6 (ASO version)
