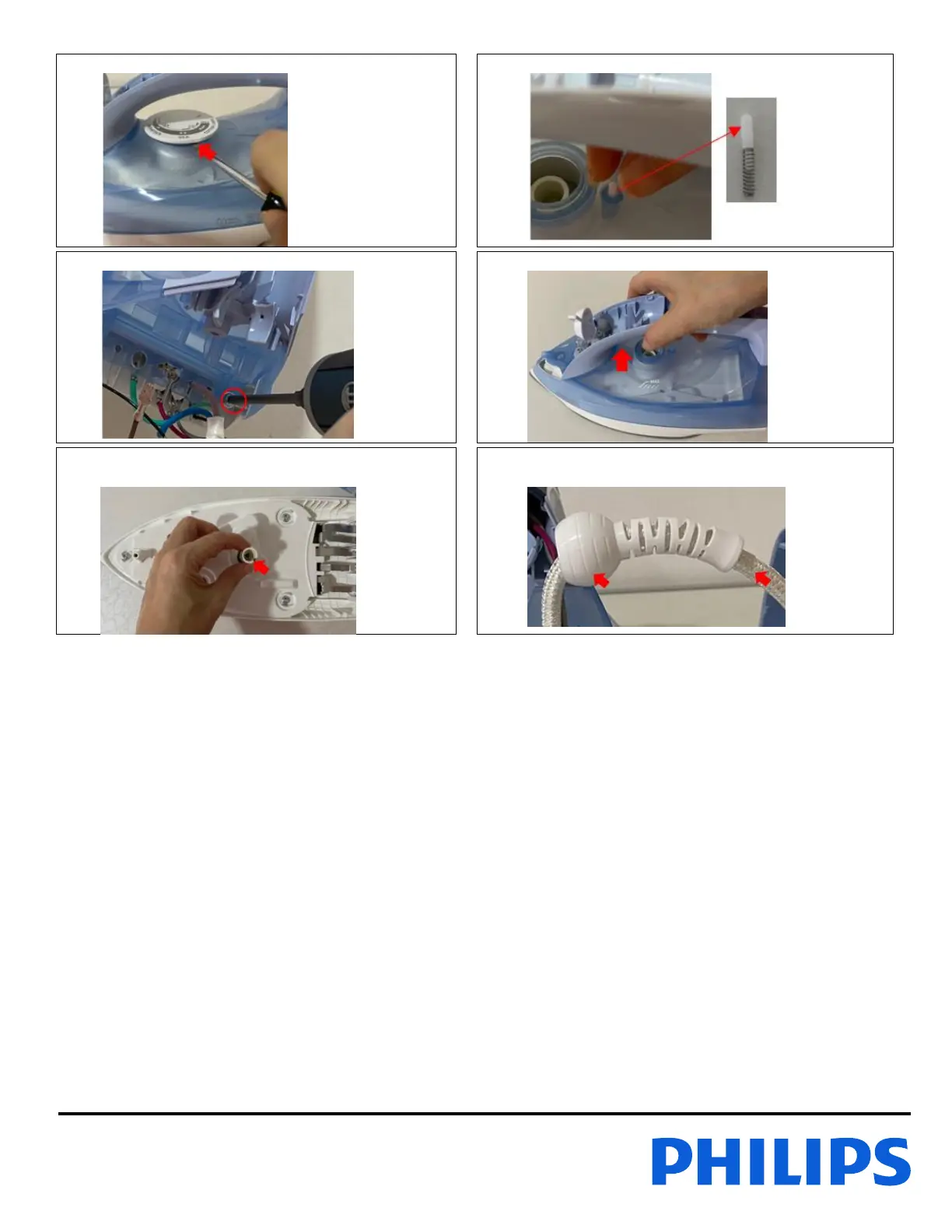

Remove T’stat Dial Prted 12
10
Remove Bullet Molded 13 & Spring Bullet 14
11
Remove 2x Screw D
12
Remove Water Tank Assy 4
13
Remove T’stat Bush &
Soleplate Mtd Assy with Cover 1
14
Remove Mainscord 15 & Ball Swivel 11
