6. Block and wiring diagram

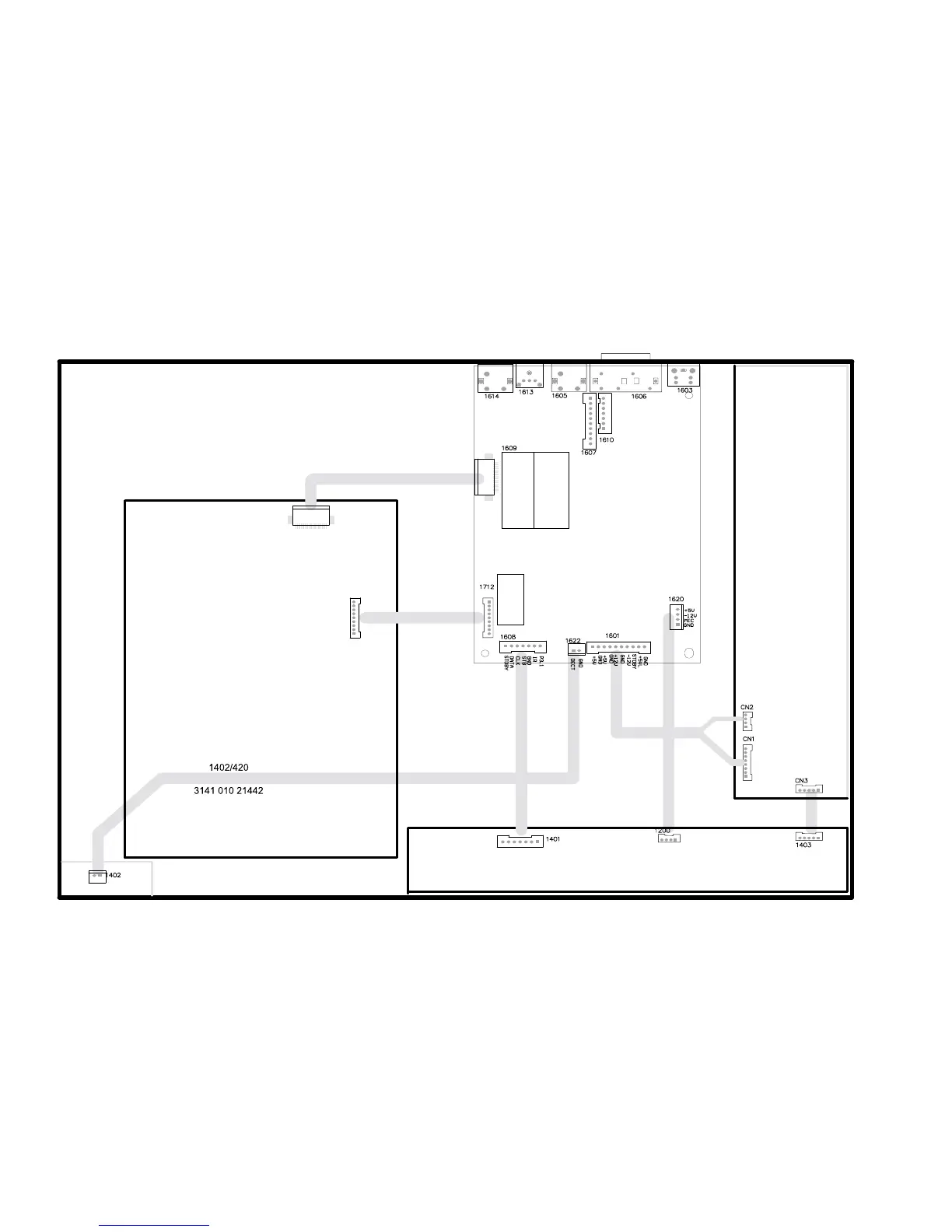

6.2 Wiring diagram DVD625K/931/751/691//692/131/031 & DVD625/781/782/785
LOADER
A97SL
3141 018 03760
MPEG BOARD
SD5.42 (MTK)
POWER BOARD
8003/120
1403/140
3141 010 21450
FRONT BOARD
POWER KEY
8002/60
3141 010 21530
1
24
25
26
1
24
25
26
1 F-
2 F+
3 T+
4 T-
5 C
6 D
7 CD/DVD
8 RF
9 A
10 B
11 F
12 GND-PD
13 Vc
14 VCC
15 E
16 NC
17 VR-CD
18 VR-DVD
19 LD-CD
20 MD
21 HFM
22 NC
23 LD-DVD
24 GND-LD
25 GND
26 GND
1 LOAD+
2 LOAD-
3 TROUT
4 GND
5 TRIN
6 SL+
7 SL-
8 SP+
9 SP-
1
9
1
1
1
1401/180
3141 010 21551
3141 010 21581
1200/200
3141 010 21562
