English
13

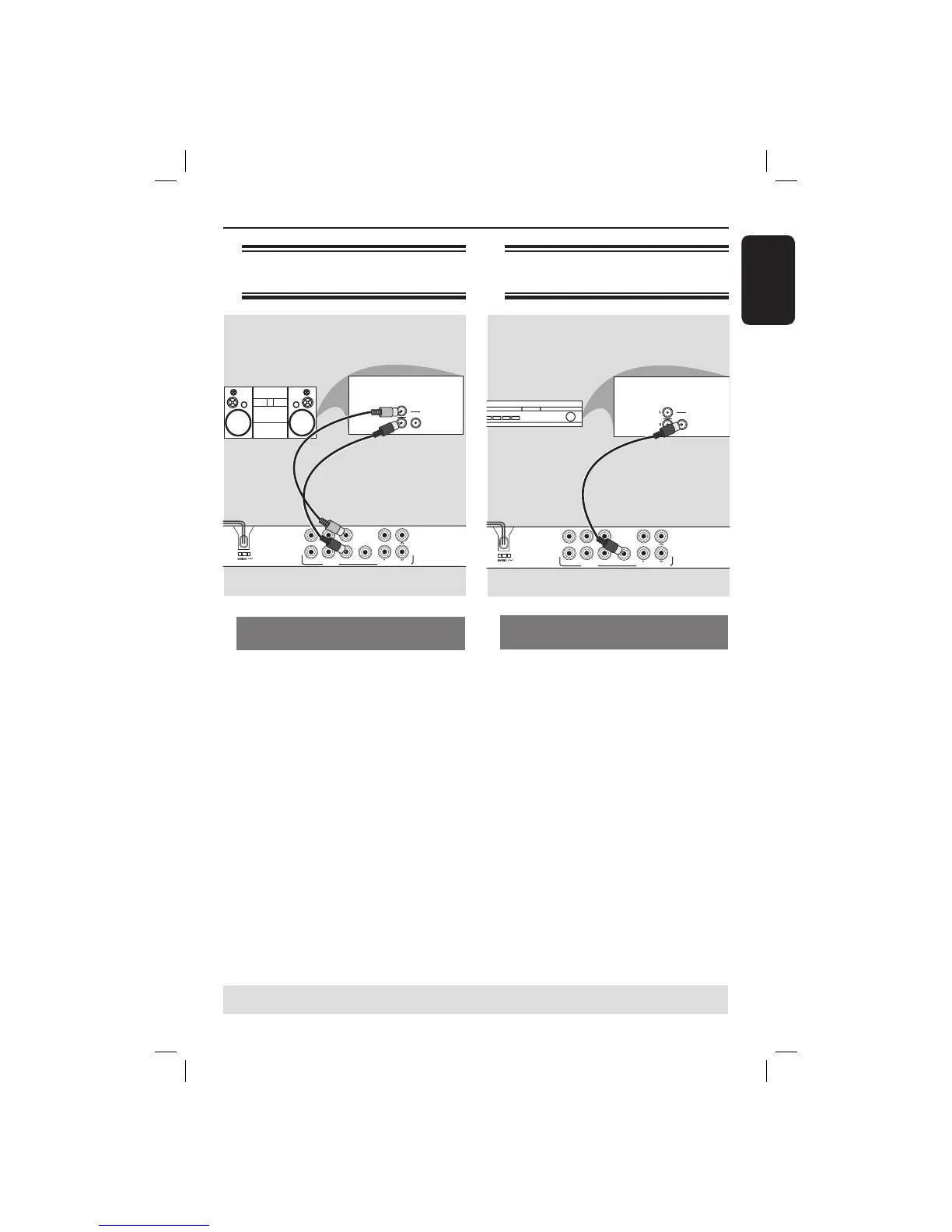

Connecting to a stereo
system
Receiver has a PCM, Dolby Digital
or MPEG decoder
A
Select one of the video connections
(CVBS VIDEO IN or COMPONENT
VIDEO IN) depending on the options
available on your television.
B Connect the COAXIAL jack of the DVD
player to the corresponding Digital Audio
In jack on your receiver (cable not
supplied).
C Set the DVD player’s digital output to
PCM-Only or ALL depending on the
capabilities of your receiver (see page 33
{Digital Output}).
Tip:
– If the audio format of the Digital Output
does not match the capabilities of your
receiver, the receiver will produce a strong,
distorted sound or no sound at all.
Stereo system has right/ left Audio
In jacks
A
Select one of the video connections
(CVBS VIDEO IN or COMPONENT
VIDEO IN) depending on the options
available on your television.
B Use the audio cables (white/red) to
connect FRONT (L/R) AUDIO OUT
jacks of the DVD Player to the
corresponding AUDIO IN jacks on the
stereo system (cable supplied).
Connecting to a digital AV
receiver
Optional connections
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
DIGITAL
OUT
TV OUT
COAXIAL
AUDIO OUT
COMPONENT VIDEO OUT
FRONT R
FRONT L
REAR R
REAR L
SUBWOOFER
CENTER
AUDIO
IN
STEREO
DIGITAL
DIGITAL
OUT
TV OUT
COAXIAL
AUDIO OUT
COMPONENT VIDEO OUT
FRONT R
FRONT L
REAR R
REAR L
SUBWOOFER
CENTER
AUDIO
IN
DIGITAL
AV Receiver
dvp3146-3747_94_eng.indd 13dvp3146-3747_94_eng.indd 13 2007-09-04 2:24:39 PM2007-09-04 2:24:39 PM
