7-1

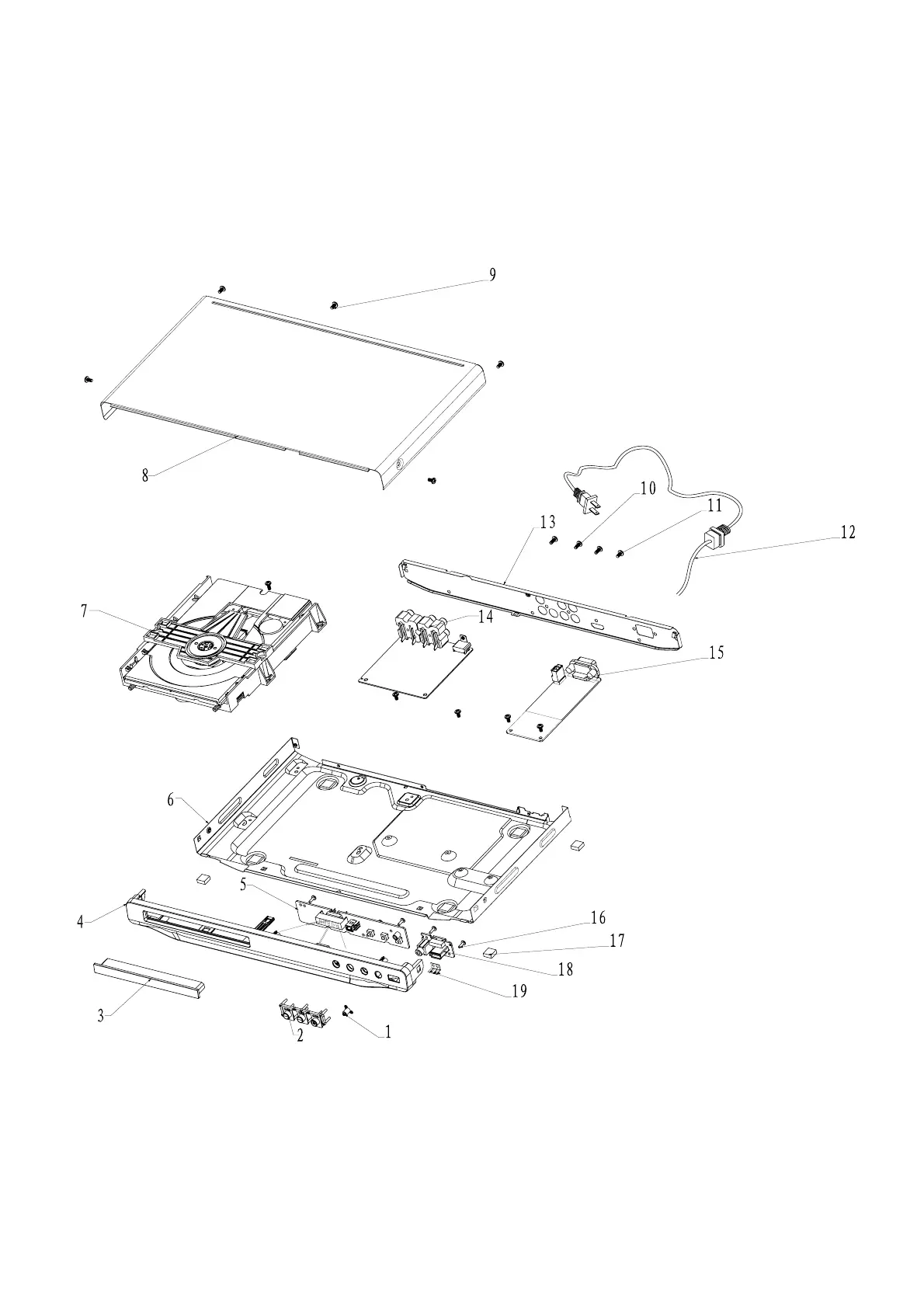

Exploded view for DVP3880K/55/98:
This is general mechanical exploded view for DVP3880K/55.Please refer to the model set for the detailed information.
ASSY includes components:1,2,4.
