7-2

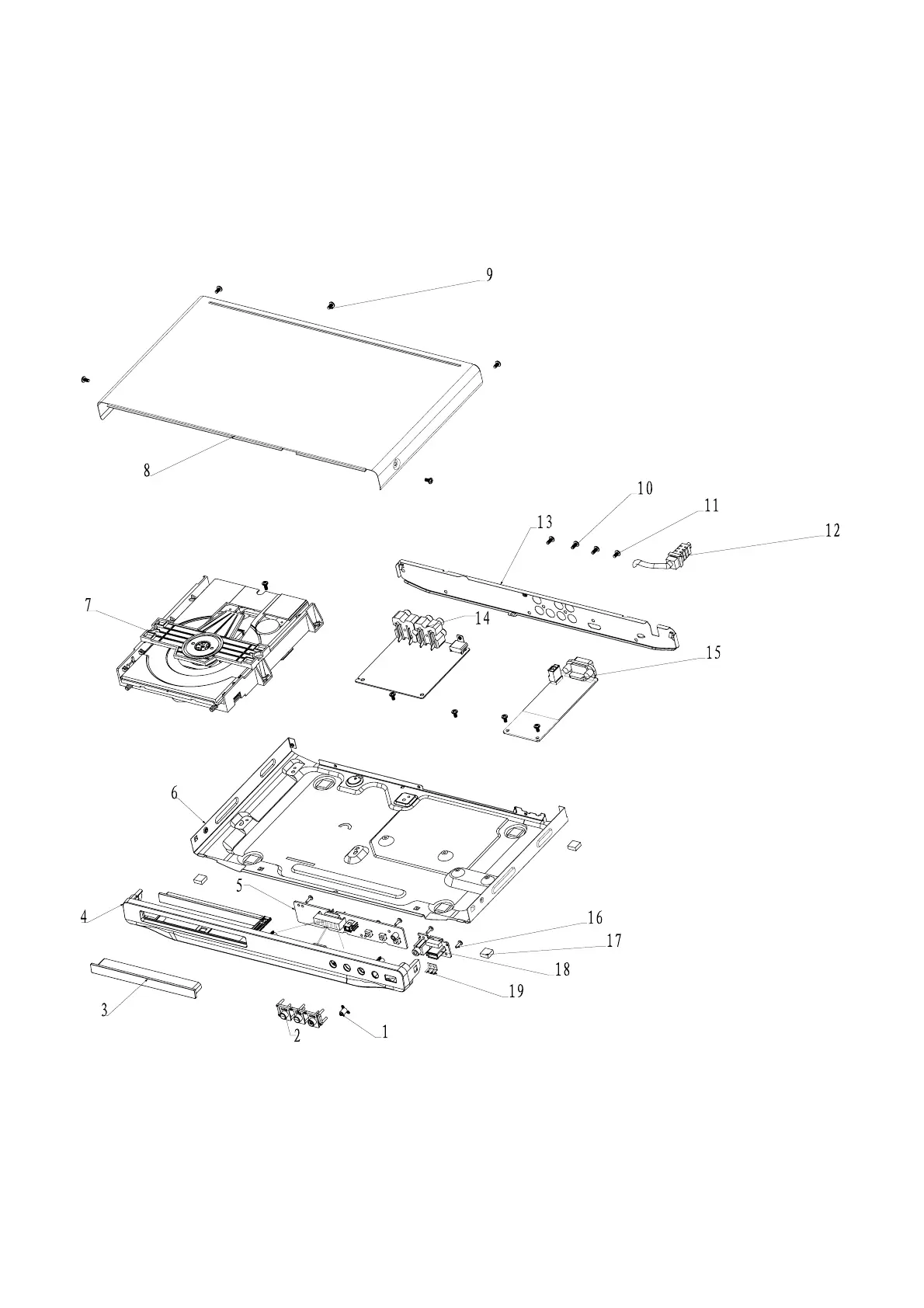

Exploded view for DVP3880K(X)/79/77:
This is general mechanical exploded view for DVP3880KX/77/78.Please refer to the model set for the detailed information.
ASSY1 includes components :1,2,4
