7-3

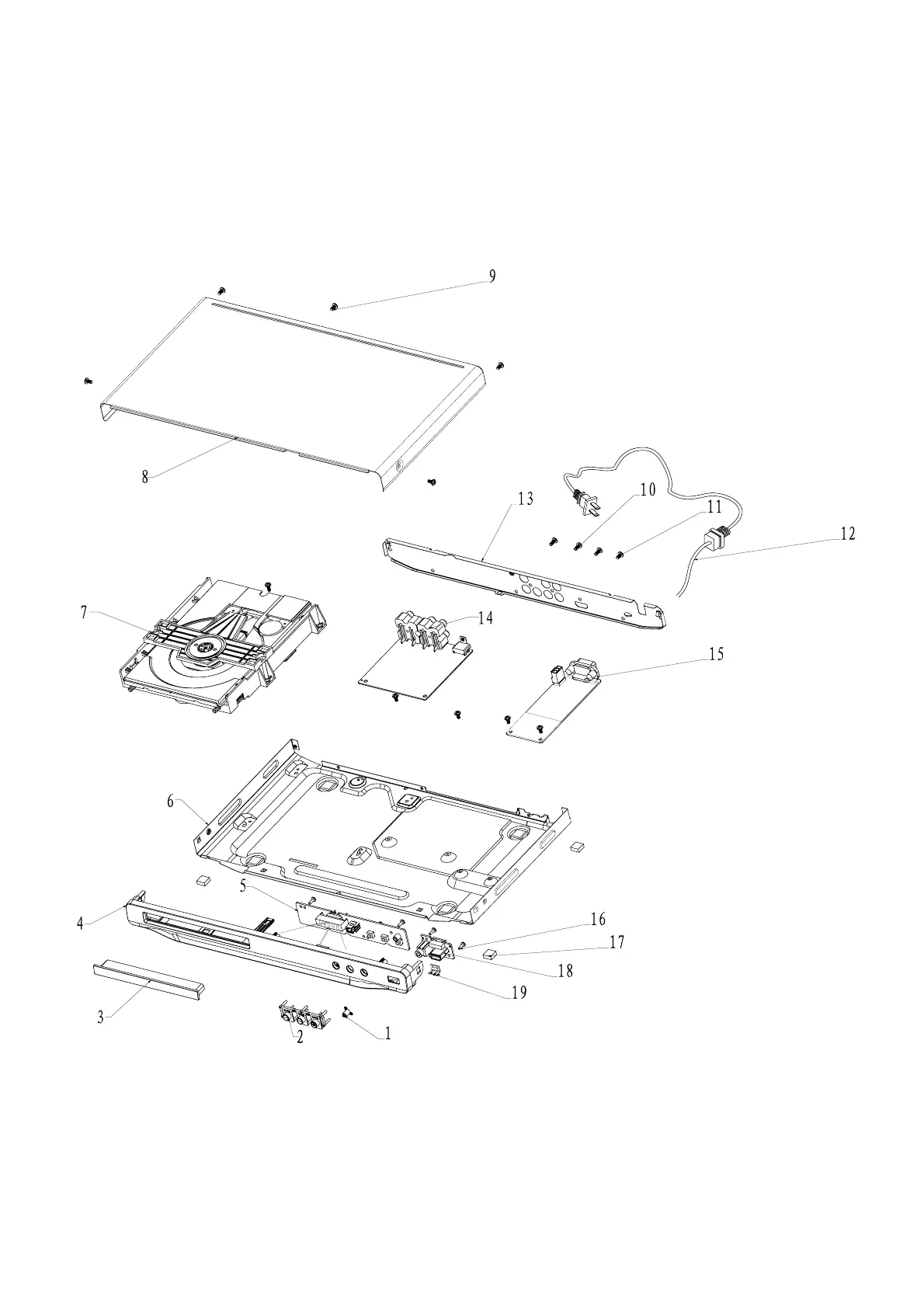

Exploded view for DVP3880K/93:
This is general mechanical exploded view for DVP3880/93.Please refer to the model set for the detailed information.
ASSY includes components:1,2,4.
