Remote reception is insensitive or fails.
No
Remote reception is
insensitive or fails.
Check whether the remote
control works properly.
Check battery
Check R317 C303 C304
Use an oscilloscope to check whethe
r
there is output waveform from the first pin IR
of the remote censor after pressing button
on the remote control.
U201(PIN 3 - RC waveform)
Check whether there is I
R
signal on pin 71 of U3
Check whether the powe
r
supply voltage to the remote
censor is normal.
Go
No
No
No
Yes
Yes
Yes
Fix connection
Yes
Replace U3
IR waveform

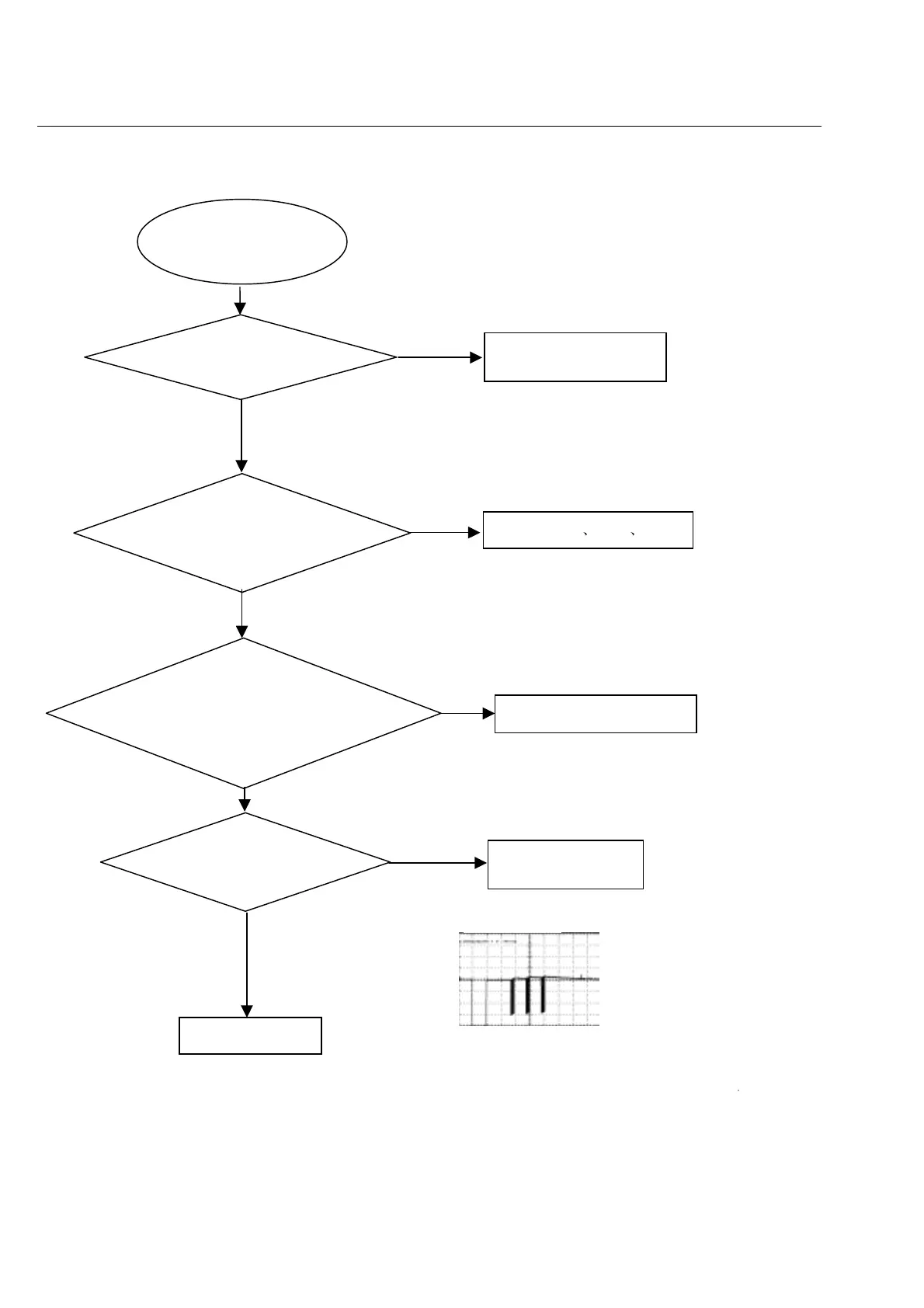

Trouble shooting chart
