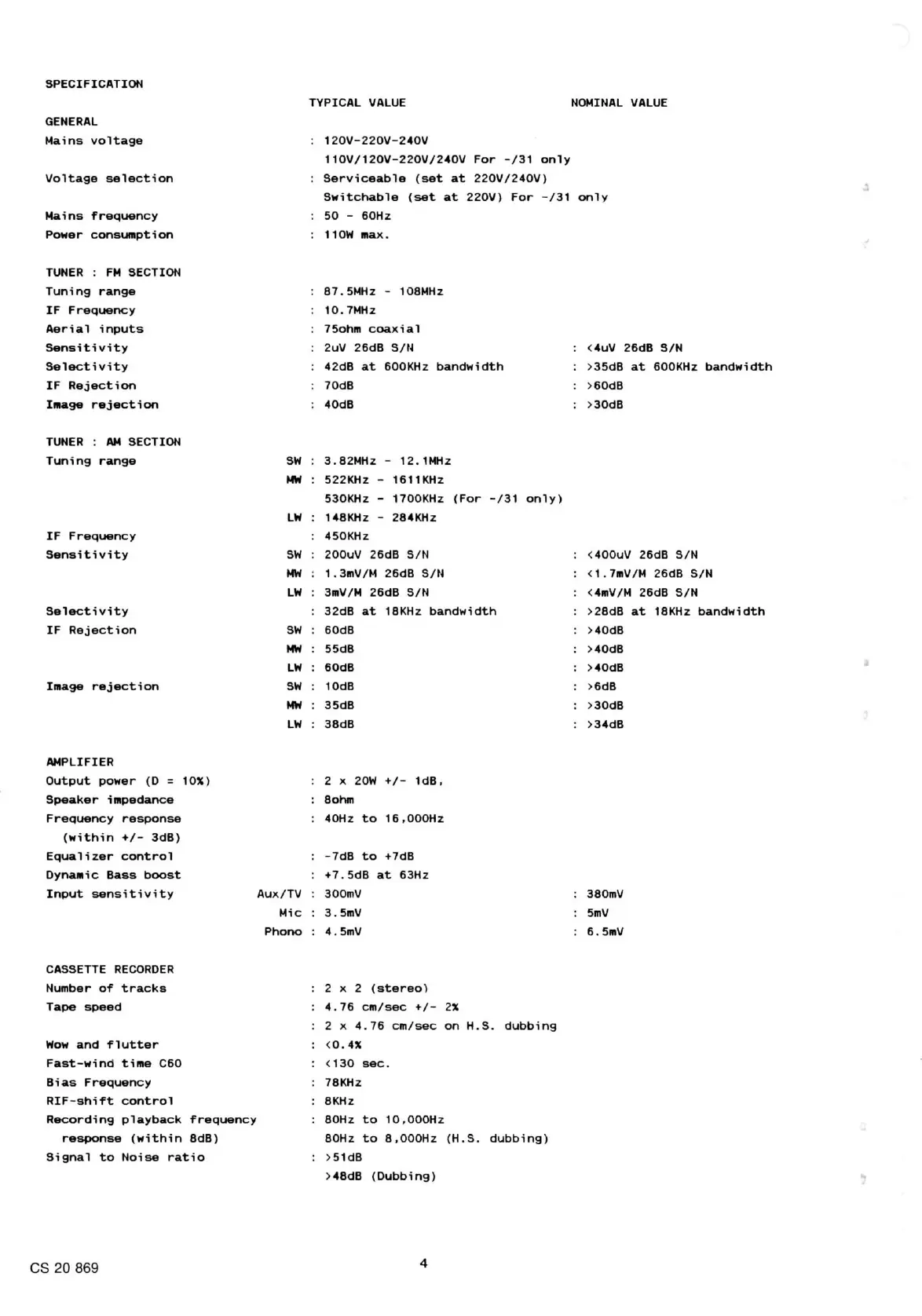

SPECIFICATION
GENERAL
Mains voltage
Voltage selection
Mains frequency
Power consumption
TYPICAL VALUE
NOMINAL VALUE
120V-220V-240V
110V/120V-220V/240V For -/31 only
Serviceable (set at 220V/240V)
Switchable (set at 220V) For -/31 only
50 - 60Hz
110W max.
TUNER : FM SECTION
Tuning range
IF Frequency
Aeriat inputs
Sensitivity
Selectivity
IF Rejection
Image rejection
87.5MHz - 108MHz
10.7MHz
75ohni coaxial
2uV 26dB S/N
42dB at 600KHZ bandwidth
70dB
40dB
<4uV 26dB S/N
>35dB at 600KHZ bandwidth
>60dB
>30dB
TUNER : AM SECTION
Tuning range
IF Frequency
Sensitivity
Selectivity
IF Rejection
Image rejection
SW ; 3.82MHz - 12.1MHz
MW : 522KHZ - 1611KHZ
530KHZ - 1700KHZ (For -/31 only)
LH : 148KHZ - 284KHZ
: 450KHZ
SW : ZOOuV 26dB S/N
MW ; 1.3mV/M 26dB S/N
LW : 3mV/M 26dB S/N
: 32dB at IBKHz bandwidth
SW : 60dB
MW : 55dB
LW : 60dB
SW : lOdB
MW : 35dB
LW : 38dB
<400uV 26dB S/N
<1.7mV/M 26dB S/N
<4mV/M
26dB S/N
>28dB at 18KHz bandwidth
>40dB
>40dB
>40dB
>6dB
>30dB
>34dB
AMPLIFIER
Output power (D = 10X)
Speaker impedance
Frequency response
(within tl- 3dB)
Equalizer control
Dynamic Bass boost
Input sensitivity
Aux/TV
Mie
Phono
2
zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA X 20W +/- IdB.
Bohm
40Hz to 16,000Hz
-7dB
to +7dB
+7.5dB at 63Hz
300mV
3.5mV
4. 5mV
SBOmV
5mV
6.5mV
CASSETTE RECORDER
Number of tracks
Tape speed
Wow and flutter
Fast-wind time C60
Bias Frequency
RIF-shift control
Recording playback frequency
response (within 8dB)
Signal to Noise ratio
2x2 (stereo)
4.76
cm/sec +/- 2X
2 X 4.76 cm/sec on H.S. dubbing
<0.4X
<130 sec.
78KHZ
BKHz
80Hz to 10,000Hz
80Hz
to 8,000Hz (H.S. dubbing)
>51dB
>4BdB (Dubbing)
CS 20 869
