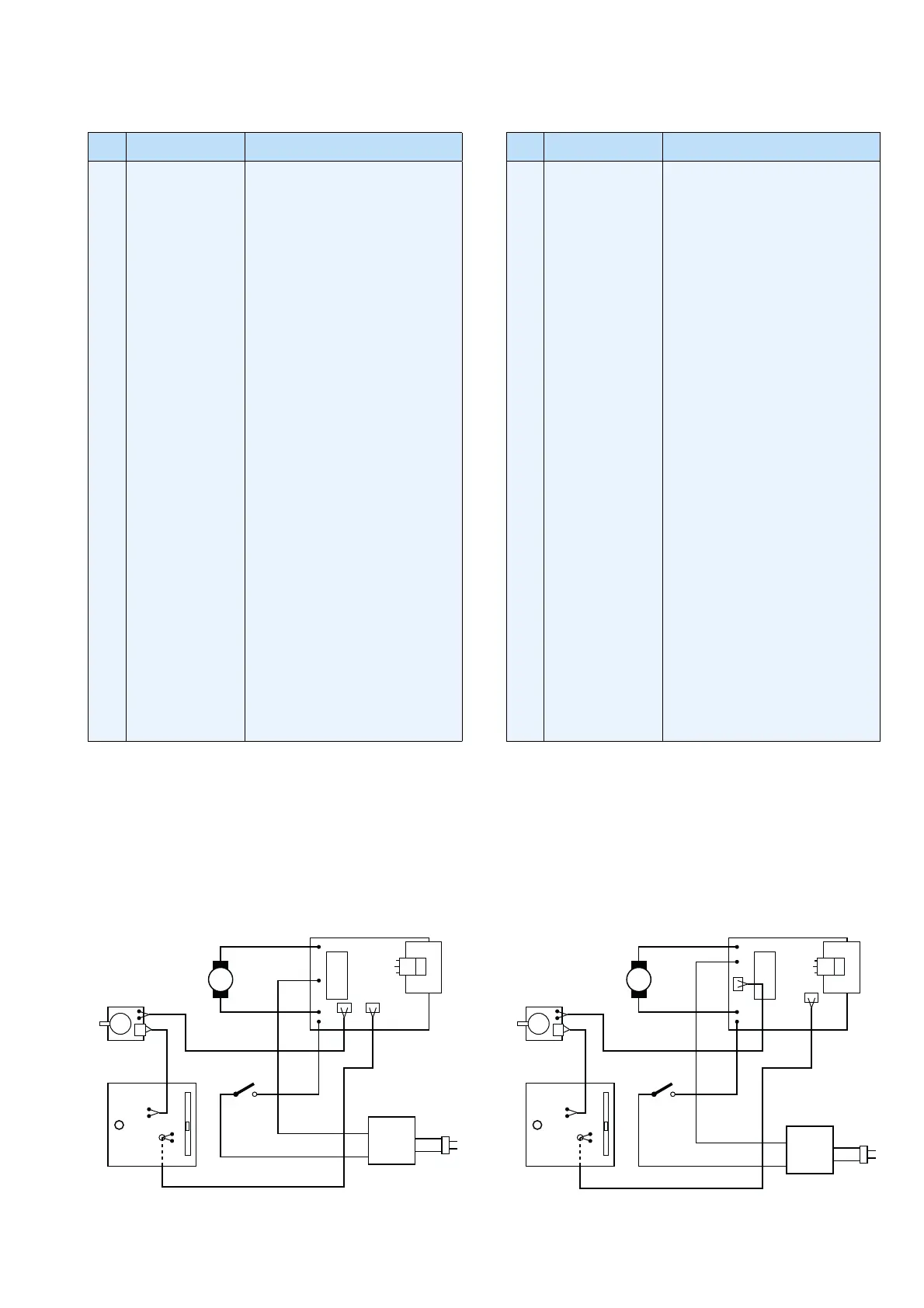

Philips FC8144/01 - Parts List; Electrical Diagram

FC8144/01
PARTS LIST
ELECTRICAL DIAGRAM
Blue
Blue
Red
Red
White
Cord
Winder
Main PCB
220 V CCC
220 V CCC
LED PCB
Sensor
PCB
M
Switch
Blue
Blue
Red
Red
Brown
Cord
Winder
Main PCB
230 V
LED PCB
Sensor
PCB
M
Switch
230 V
3-7
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
4222 459 46231
4222 459 46251
4222 459 46241
4222 459 46201
4222 459 46181
4222 459 46191
4222 459 46161
4222 459 46171
4222 459 46441
4222 459 46461
4222 459 46361
4222 459 46271
4222 459 46261
4222 459 46341
4222 459 46431
4222 459 46351
4222 459 46291
4222 459 46581
4222 459 46281
4222 459 46301
4222 459 46451
4222 459 46211
4222 459 46221
4222 459 46381
4222 459 46391
4222 459 46401
4222 459 46421
Dustcover assy Green
Dustcover latch kit Green
Seal for suction
Dustcup assy Green
Cone assy Green
Dustcup bottom seal
Air inlet HEPA assy
Air inlet sponge
Anti missing protector kit
Front wheel kit Green
Right side panel
Inlet fi lter
Inlet fi lter frame Green
Dustchamber seal
Safety valve kit
Left side panel
Button on/off Green
Button spring
Mid frame assy Green
Button CW Green
Sealing Motor front cover
Filter panel Green
Outlet HEPA assy
Cordwinder complete UK/HK
Cordwinder complete Europe
Cordwinder complete PRC
Back wheel assy Green
Pos Service code Description
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
45
46
47
49
50
51
52
53
4222 459 46541
4222 459 46481
4222 459 46321
4222 459 46331
4222 459 46471
4222 459 46411
4222 459 46371
4222 459 46521
4222 459 46771
4222 459 46781
4222 459 46491
4222 459 46501
4222 459 46761
4222 459 46311
4222 459 46511
4222 459 46531
4222 459 46551
4222 459 46561
4222 459 46571
4222 459 46591
4222 459 46621
4222 459 46641
4222 459 46141
4222 459 46601
4322 004 23831
4222 459 49161
4222 459 54621
Motor inner cov. assy (incl sil. pad)
Sealing motor inner cover
LED PCB assy
Sensor PCB assy
Front cover motor
Rubber piston
Switch
Outer motor cov. assy (incl silenc.)
Motor 220 V CCC China only
Motor 220 - 240 V Europe
Front seal motor
Protector kit motor compartment
Main PCB assy 220 V CCC
Main PCB assy 230 V
Fixation outer motor cover
Fixation inner motor cover
Motor back plate
Motor adjustment ring
Noise red. around outer mot. cov.
Hose assy
Small nozzle
Crevice nozzle
Floor nozzle
Telescopic tube (2TT)
Accessory holder
Cord outlet Ink Black
Nozzle holder Siberian Green
