Philips FC8473 - Disassembly and Re-assembly Procedures; Appliance Opening Procedure; Upperhousing Removal; Motor Housing Access

FC8473/01 / FC8473/61
2-10

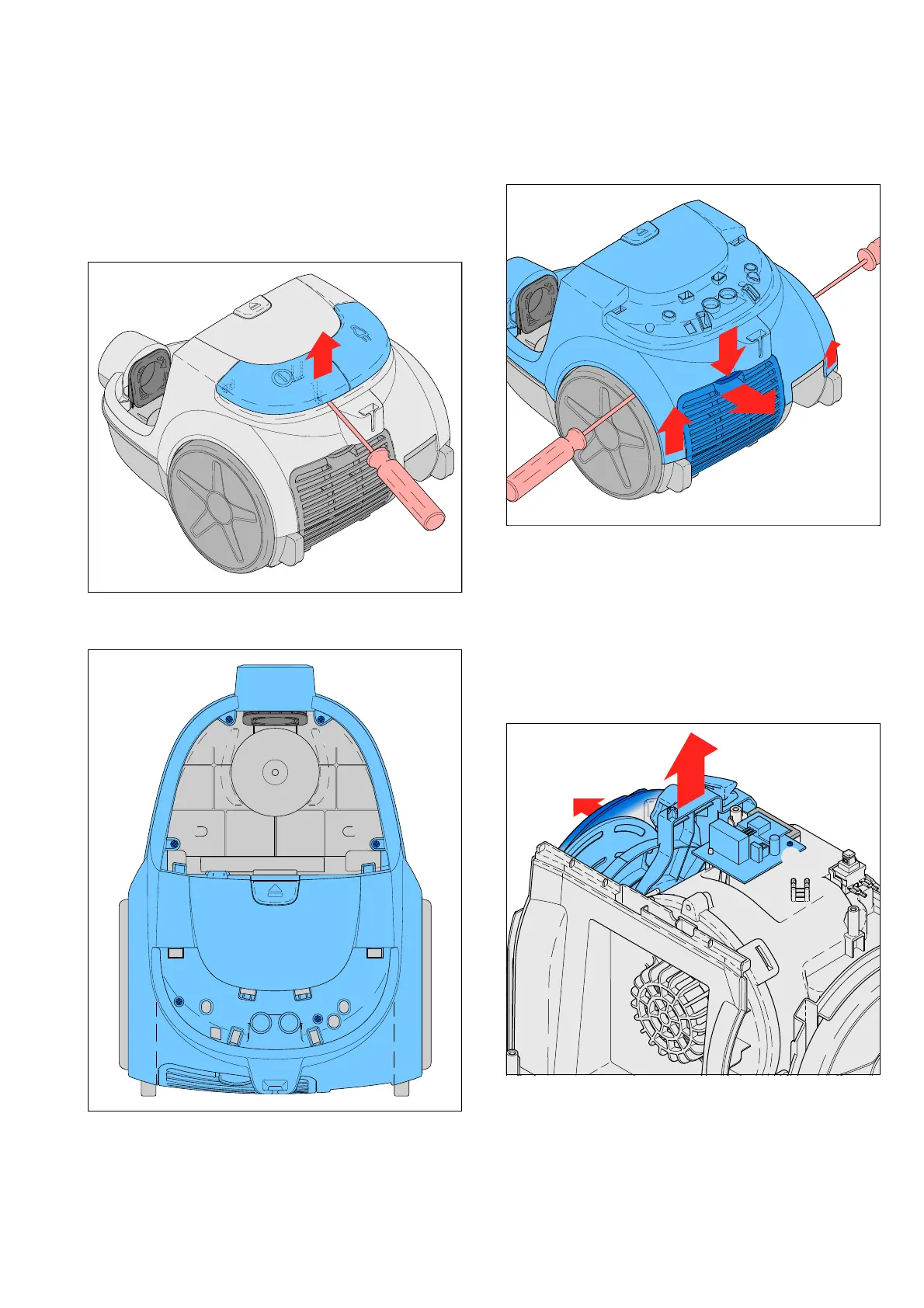

• To open the appliance, first remove the bucket by
pushing the Unlock button and lifting the bucket straight
upwards.
• To disassemble the Upperhousing:
Remove the CW Button and On/off button by using a
screwdriver to push the buttons upwards, in this way the
clicknocks can be loosened. (see picture)
• Remove the 6 screws (B), two are positioned under the
buttons. (see picture)
B
B B
B
B
B
• Remove the Exhaust grille and filter and “unclick the two
snap locks” on the backside with a screwdriver. (see
picture)
1
2
• The Upperhousing can now be separated, some force
may be needed.
• The Motor housing is secured with 5 screws, to reach all
screws the Cordwinder must be removed first.
• First detach the PCB assy from the Motor housing by
removing screw (C). (see picture)
• To be able to pull the Cordwinder out you must create
more space at the side of the wheel, do so by pulling the
Lower housing a little bit outwards. (see picture)
1
2
C
• Remove the 5 screws (D) and take the Motor housing
out of the Lower housing. (see exploded view at
page7-9)
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
