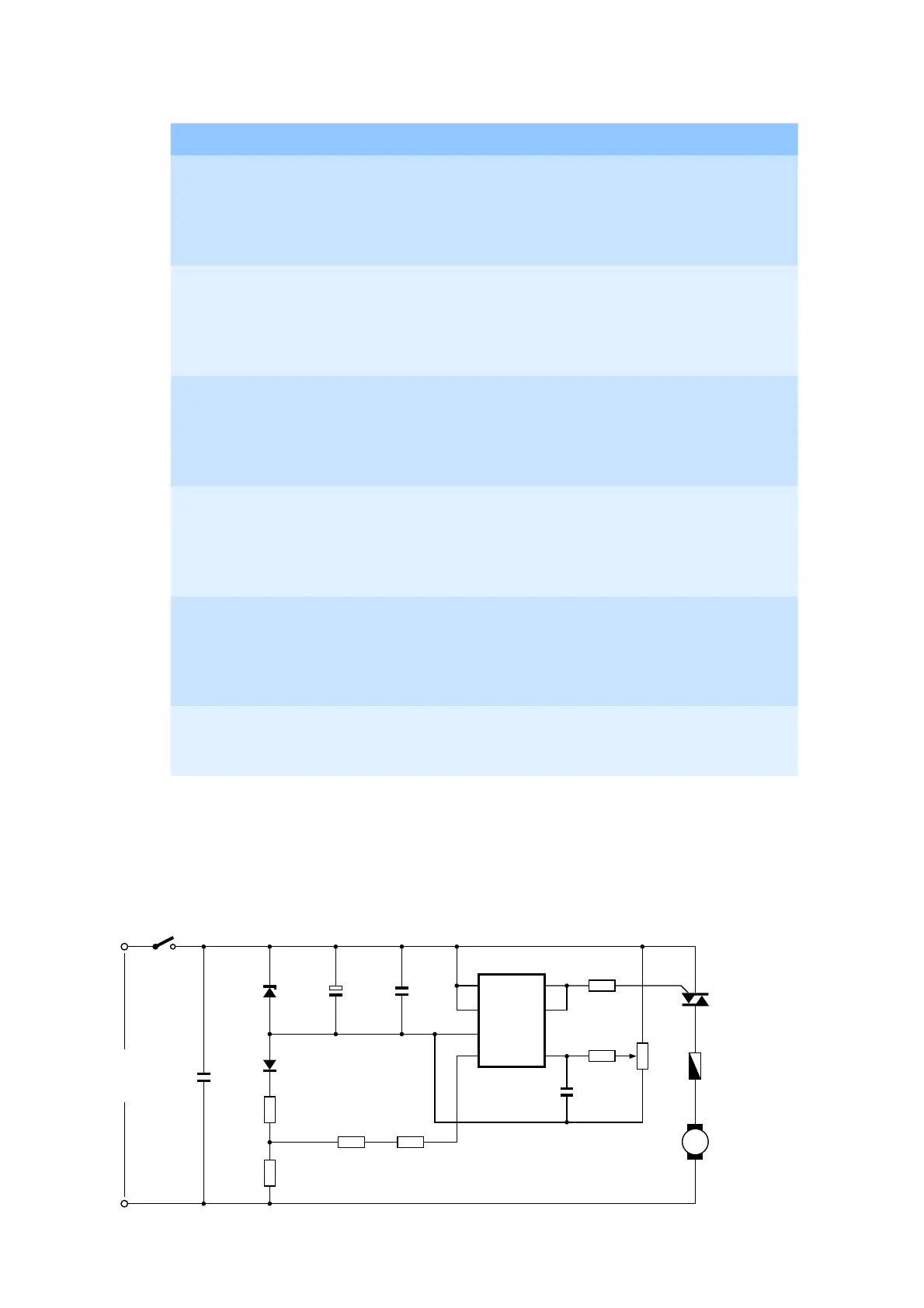

Philips FC8654/01 - Page 3

FC8654/01
3-8
M
AC
220 - 240V
50Hz
R5
27-¼W
U1
TR1
Motor
TMP
R3
10M-¼W
R4
10M-¼W
L
N
C1
0.47F
275V
C3
100nF
C4
100nF
ZD1
4.7V
½ W
C2
330F
16V
D1
1N4007
R2
10k-1W
R1
10k-1W
RW
47k
K
4
1
3
2
12 13
14
R7
1k
PARTS LIST
ELECTRICAL DIAGRAM
Pos Service code Description Remark
1
2
3
4
5
9965 100 68363
9965 100 68384
9965 100 68376
9965 100 68356
4322 004 93931
Dust cover assy
Dust cover lock
Dustbag holder
DBFI assy (Red)
Motor inlet  lter
Full Red 20920
Full Red 20920
Basic Blue 61192
Atlas
6
7
8
9
10
9965 100 68372
9965 100 68381
9965 100 68373
9965 100 68367
9965 100 68355
Motor inlet  lter frame
Cordwinder button
Turning knob
Back housing
Valve assy
Deep Black 80231
Deep Black 80231
Deep Black 80231
Full Red 20920
11
12
13
14
15
9965 100 68357
9965 100 68379
9965 100 68374
4322 004 93941
9965 100 62294
Casterdish assy
On/Off button
Exhaust  lter frame
HEPA 10  lter
Rear wheel assy
Deep Black 80231
Deep Black 80231
Deep Black 80231
Atlas
16
17
18
19
20
9965 100 68378
4322 005 34991
9965 100 68377
4322 006 25051
9965 100 60949
Bottom housing plate
Cordwinder 6 m round cord
Bottom housing
PCBA
Switch
Deep Black 80231
4.8 Plug Atlas
Deep Black 80231
220 - 230 V Atlas
21
22
23
24
25
9965 100 68371
4322 009 00731
4322 004 25421
4322 004 25061
4322 004 25121
Motor housing
Service assy motor
Atlas hose assembly
Metal telescopic tube Conical 35 mm
Small nozzle Conical 35 mm
1800 W Kingclean
Deep Black 80231
26
28
29
4322 004 25111
4322 004 25101
4322 004 25201
Crevice nozzle Conical 35 mm
All  oor nozzle # 34 Conical 35 mm
Accessory holder Easylive
Deep Black 80231
Deep Black 80231
Deep Black 80231
