Philips FC9722/09 - Disassembly and Re-assembly Advice

FC9722/09 / FC9722/19
2-11
DISASSEMBLY- AND RE-ASSEMBLY ADVISE

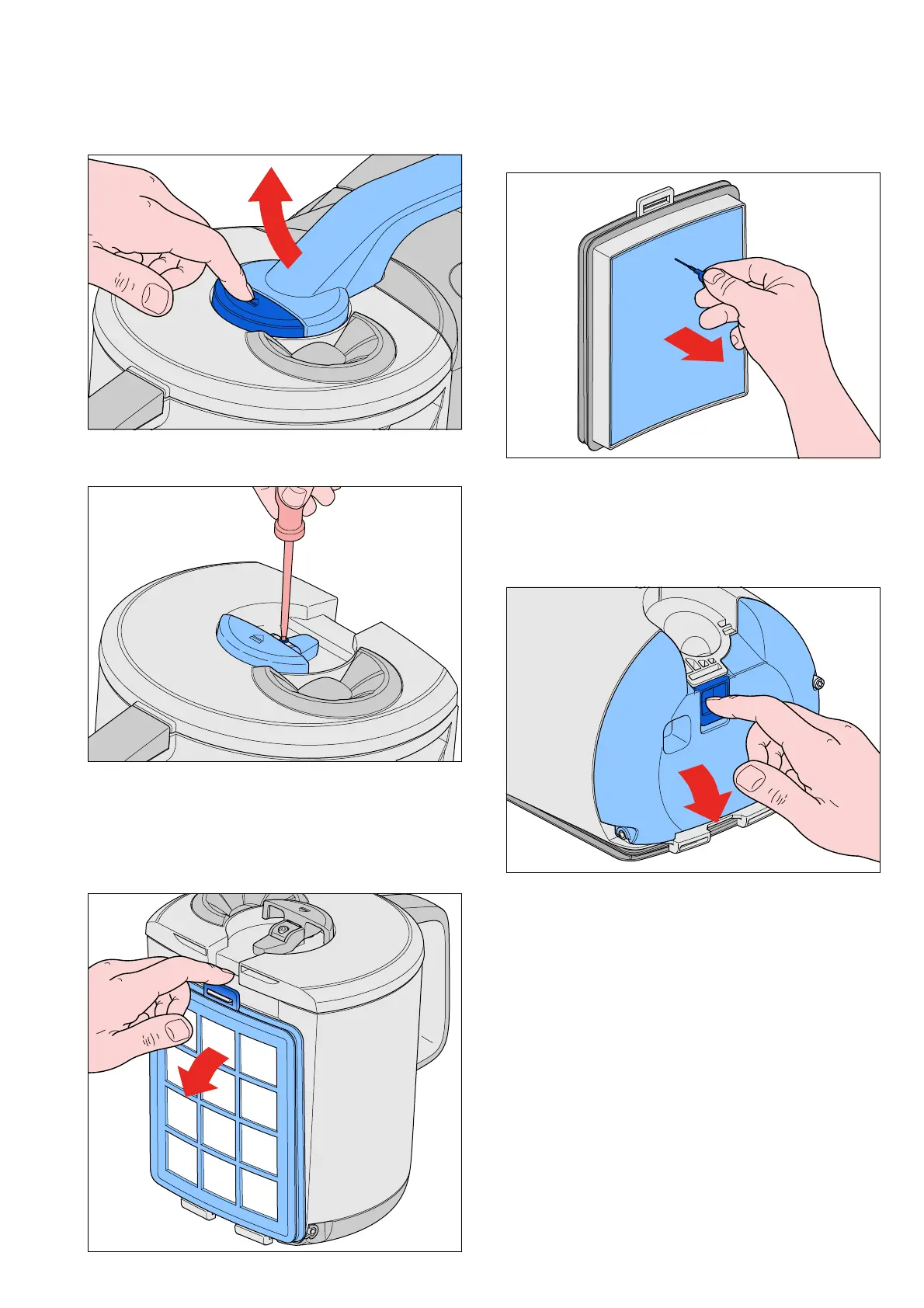

• To remove the Bucket, unlock the top handle by pushing
the button on the lid of Bucket (see picture).
• The button (3) on the lid is a spare part, it can be
replaced by removing screw A (see picture).
A
• The bucket can only be placed back with the lid mounted
and positioned in the correct way, otherwise the handle
cannot be closed.
• The Inlet filter assy (4) on the front (motor side) of the
Bucket can be removed by pulling the lip at the top
(see picture).
• The foam in the Inlet filter assy can be cleaned.
By pulling the plastic ring the foam  lter can be removed
without touching the dirt on the  lter (see picture).
• The bottom of the Bucket can be removed as shown in
the picture below.
Remark:
The Bucket can be placed back without the bottom, this
will not lead to a safety problem, but all the dust will get
into the bottom housing.
