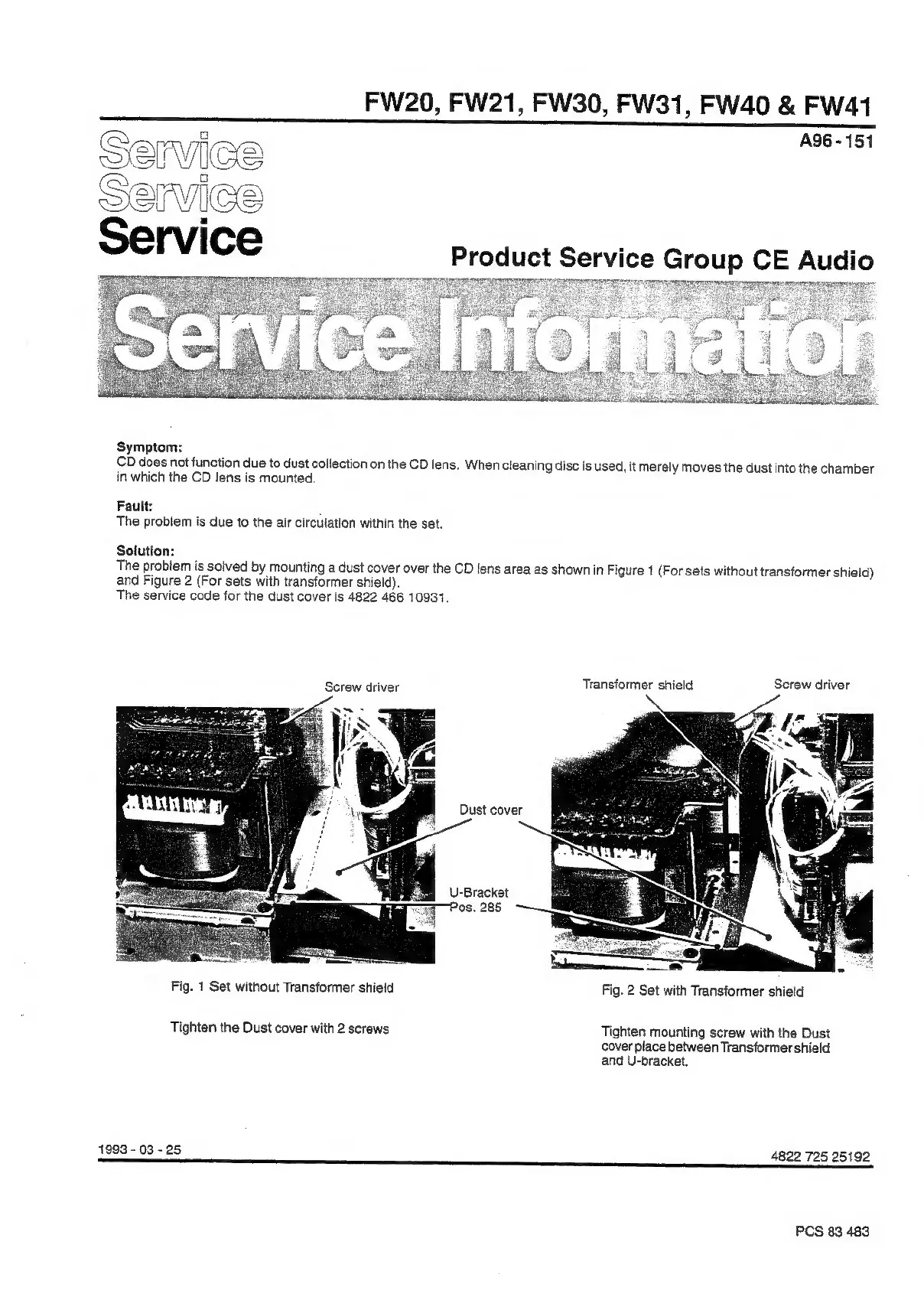

Philips FW41/20 - Page 60

FW20,
FW21, FW30,
FW31,
FW40
&
FW41
Dd
a
A96
-
151
Services
Product
Service
Group
CE
Audio
Symptom:
CD
does
not
function
due
to
dust
collection
on
the
CD
lens.
When
cleaning
disc
is
used,
it
merely
moves
the
dust
into
the
chamber
in
which
the
CD
lens
is mounted.
Fault:
The problem is due to the air circulation within the set.
Solution:
The
problem
is
solved
by
mounting
a
dust
cover
over
the
CD
lens
area
as
shown
in
Figure
1
(For
sets
without
transformer
shield)
and
Figure
2
(For
sets
with
transformer
shield).
The
service
code
for
the
dust
cover
is
4822
466
10931.
Transformer shield Screw driver
Screw driver
Dust cover
U-Bracket
Pos, 285
Fig.
1
Set
without
Transformer
shield
Fig.
2
Set
with
Transformer
shield
Tighten
the
Dust
cover
with
2
screws
Tighten
mounting
screw
with
the
Dust
cover
place
between
Transformer
shield
and
U-bracket.
1993
-
03
-
25
4822
725
25192
——————————————
PCS 83 483
