Philips FWD39/21 - Detaching Main board and Front Cabinet Assembly; Dismantling of the Rear Panel; Dismantling of Control Board and Cassette Module; Dismantling of the Power Board

3-2
3-2
Dismantling of the Control Board and Cassette module
1) Loosen 4 screws 'E' to remove the Key board as shown in
figure 6.
2) Loosen 10 screws 'F' to remove the Control board figure 6.
Dismantling of the Power Board
1) Loosen 4 screws 'J' to remove the Power Board figure 10.
Detaching the Main board and Front Cabinet Assembly from the Bottom/Rear assembly
1) Loosen 2 screws 'D ' at the bottom of the Front Cabinet on
both sides of the set and pull the Front Cabinet assembly
out of the Bottom plate.
2) Release 5 screws ' A' , 7 catches 'B' and 2 screws 'c ' to
free the Main board from the Back Panel +Bottom Panel as
shown in figure 5.
Dismantling of the Rear Panel
1)Remove the dust cover.
2)Release the spring.
3)Pull out the bracket as shown direction in figure 8.
4)Pull out the cassette deck as shown in figure 9.
3) Loosen 8 screws 'H' to remove the Cassette Module
figure 7.

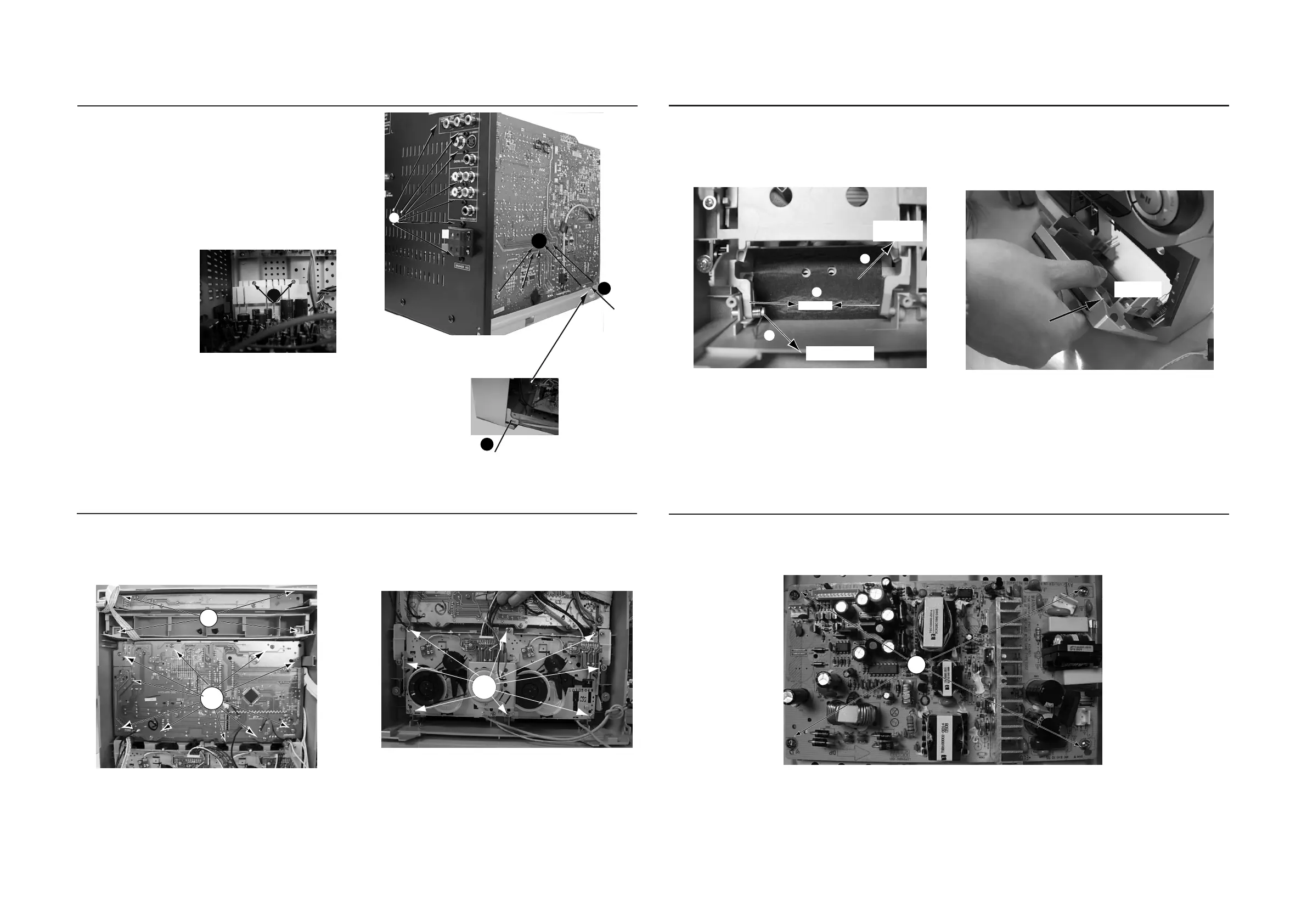

Figure 6
Figure 5
Figure 7
Figure 9
Figure 10
J
E
F
1
B
D
D
C
A
Figure 8
Remove the 
dust cover
1
Release this spring
2
pull out
3
Pull out
