Philips FWM185 - CASSETTE BOARD; MCU BOARD; USB BOARD; CD BOARD

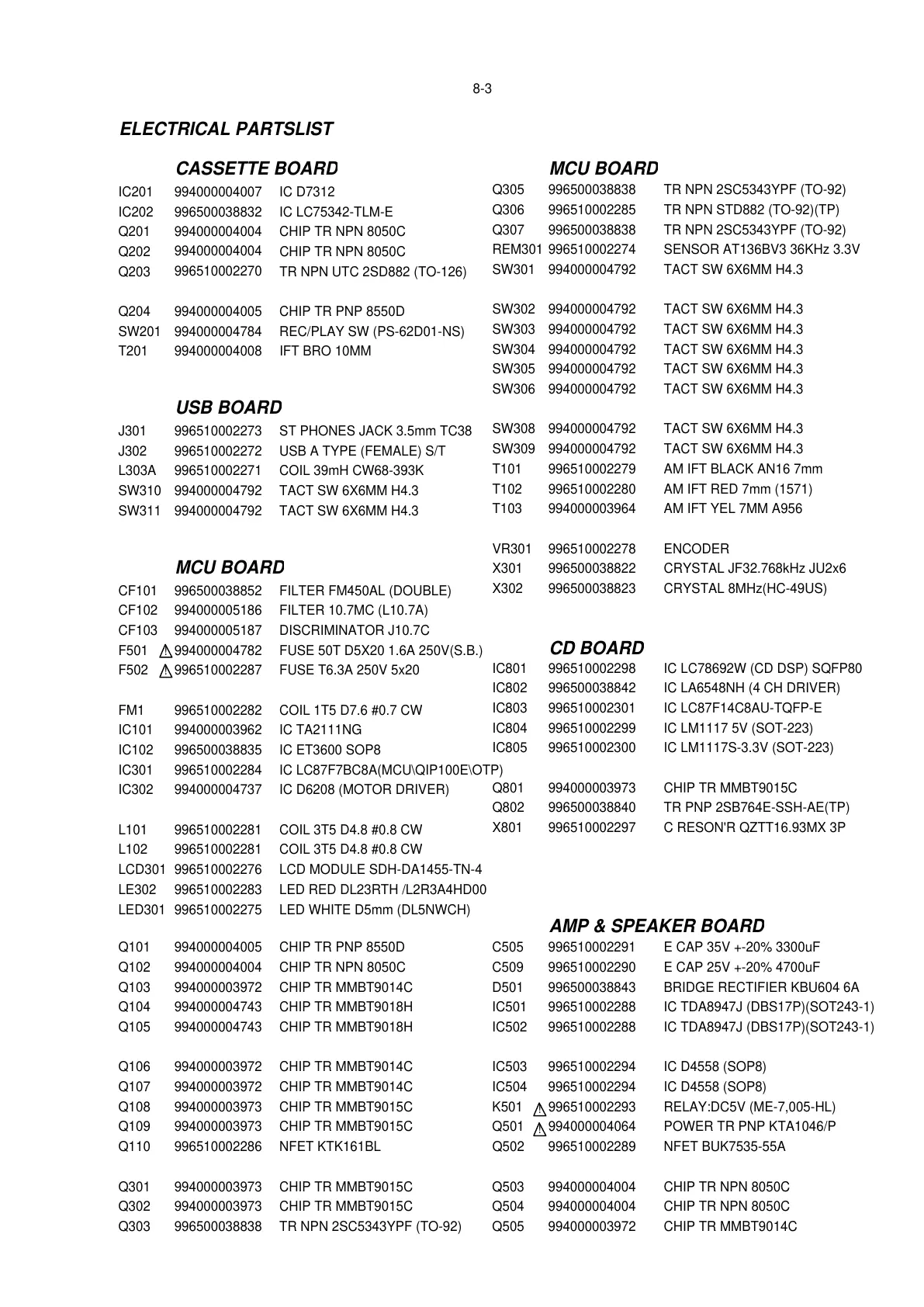

ELECTRICAL PARTSLIST
CASSETTE BOAR
D
MCU BOAR
D
IC201 994000004007 IC D7312
Q305 996500038838 TR NPN 2SC5343YPF (TO-92)
IC202 996500038832 IC LC75342-TLM-E
Q306 996510002285 TR NPN STD882 (TO-92)(TP)
Q201 994000004004 CHIP TR NPN 8050C
Q307 996500038838 TR NPN 2SC5343YPF (TO-92)
Q202
994000004004
CHIP TR NPN 8050C
REM301 996510002274 SENSOR AT136BV3 36KHz 3.3V
Q203
996510002270
TR NPN UTC 2SD882
(
TO-126
)
SW301 994000004792 TACT SW 6X6MM H4.3
Q204 994000004005 CHIP TR PNP 8550D
SW302 994000004792 TACT SW 6X6MM H4.3
SW201 994000004784 REC/PLAY SW (PS-62D01-NS)
SW303 994000004792 TACT SW 6X6MM H4.3
T201
994000004008
IFT BRO 10MM
SW304 994000004792 TACT SW 6X6MM H4.3
SW305 994000004792 TACT SW 6X6MM H4.3
SW306 994000004792 TACT SW 6X6MM H4.3
USB BOAR
D
J301 996510002273 ST PHONES JACK 3.5mm TC38
SW308 994000004792 TACT SW 6X6MM H4.3
J302 996510002272 USB A TYPE (FEMALE) S/T
SW309 994000004792 TACT SW 6X6MM H4.3
L303A 996510002271 COIL 39mH CW68-393K
T101 996510002279 AM IFT BLACK AN16 7mm
SW310 994000004792 TACT SW 6X6MM H4.3
T102 996510002280 AM IFT RED 7mm (1571)
SW311 994000004792 TACT SW 6X6MM H4.3
T103 994000003964 AM IFT YEL 7MM A956
VR301 996510002278 ENCODER
MCU BOAR
D
X301 996500038822 CRYSTAL JF32.768kHz JU2x6
CF101 996500038852 FILTER FM450AL (DOUBLE)
X302 996500038823 CRYSTAL 8MHz(HC-49US)
CF102 994000005186 FILTER 10.7MC (L10.7A)
CF103 994000005187 DISCRIMINATOR J10.7C
F501
! 994000004782 FUSE 50T D5X20 1.6A 250V(S.B.)
CD BOAR
D
F502 ! 996510002287 FUSE T6.3A 250V 5x20
IC801 996510002298 IC LC78692W (CD DSP) SQFP80
IC802 996500038842 IC LA6548NH (4 CH DRIVER)
FM1 996510002282 COIL 1T5 D7.6 #0.7 CW
IC803 996510002301 IC LC87F14C8AU-TQFP-E
IC101 994000003962 IC TA2111NG
IC804 996510002299 IC LM1117 5V (SOT-223)
IC102 996500038835 IC ET3600 SOP8
IC805 996510002300 IC LM1117S-3.3V (SOT-223)
IC301 996510002284 IC LC87F7BC8A(MCU\QIP100E\OTP)
IC302 994000004737 IC D6208 (MOTOR DRIVER)
Q801 994000003973 CHIP TR MMBT9015C
Q802 996500038840 TR PNP 2SB764E-SSH-AE(TP)
L101 996510002281 COIL 3T5 D4.8 #0.8 CW
X801 996510002297 C RESON'R QZTT16.93MX 3P
L102 996510002281 COIL 3T5 D4.8 #0.8 CW
LCD301 996510002276 LCD MODULE SDH-DA1455-TN-4
LE302 996510002283 LED RED DL23RTH /L2R3A4HD00
LED301 996510002275 LED WHITE D5mm (DL5NWCH)
AMP & SPEAKER BOAR
D
Q101 994000004005 CHIP TR PNP 8550D C505 996510002291 E CAP 35V +-20% 3300uF
Q102 994000004004 CHIP TR NPN 8050C C509 996510002290 E CAP 25V +-20% 4700uF
Q103 994000003972 CHIP TR MMBT9014C D501 996500038843 BRIDGE RECTIFIER KBU604 6A
Q104 994000004743 CHIP TR MMBT9018H IC501 996510002288 IC TDA8947J (DBS17P)(SOT243-1)
Q105 994000004743 CHIP TR MMBT9018H IC502 996510002288 IC TDA8947J (DBS17P)(SOT243-1)
Q106 994000003972 CHIP TR MMBT9014C IC503 996510002294 IC D4558 (SOP8)
Q107 994000003972 CHIP TR MMBT9014C IC504 996510002294 IC D4558 (SOP8)
Q108 994000003973 CHIP TR MMBT9015C K501
!
996510002293 RELAY:DC5V (ME-7,005-HL)
Q109 994000003973 CHIP TR MMBT9015C Q501
!
994000004064 POWER TR PNP KTA1046/P
Q110 996510002286 NFET KTK161BL Q502 996510002289 NFET BUK7535-55A
Q301 994000003973 CHIP TR MMBT9015C Q503 994000004004 CHIP TR NPN 8050C
Q302 994000003973 CHIP TR MMBT9015C Q504 994000004004 CHIP TR NPN 8050C
Q303 996500038838 TR NPN 2SC5343YPF (TO-92) Q505 994000003972 CHIP TR MMBT9014C
8-3
