Philips FWM589 - Page 89

11-1 11-1
SET MECHANICAL EXPLODED VIEW
-G
NOT FOR ALL VERSION
HOLES NOT IN ALL VERSION
SHAPE VARY WITH/WITHOUT WOOX VERSION
SHAPE VARY WITH/WITHOUT USB VERSION
FOR FW-C7XX/M7XX ONLY
{ XXX } ITEM NO. FOR FW-C7XX/M7XX
[ YYY ] ITEM NO. FOR FW-C557
*
#
**
FOR SET WITH WOOX VERSION ONLY

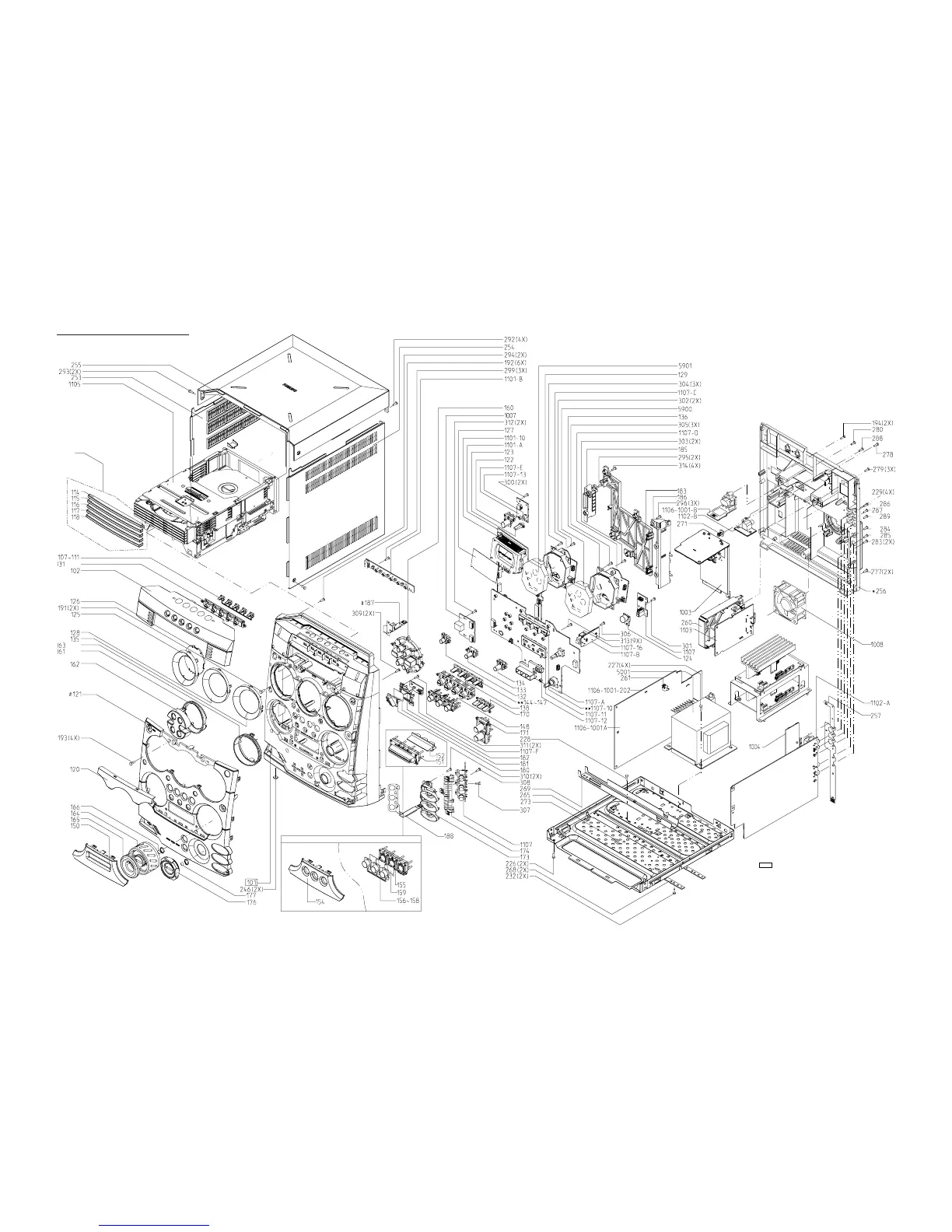

Exploded View Mini 402 FWM 5xx/7xx
##
##
##
##
##
{106}
[168]
[167]
{142}
{141}
{140}
{143}
-H
112
