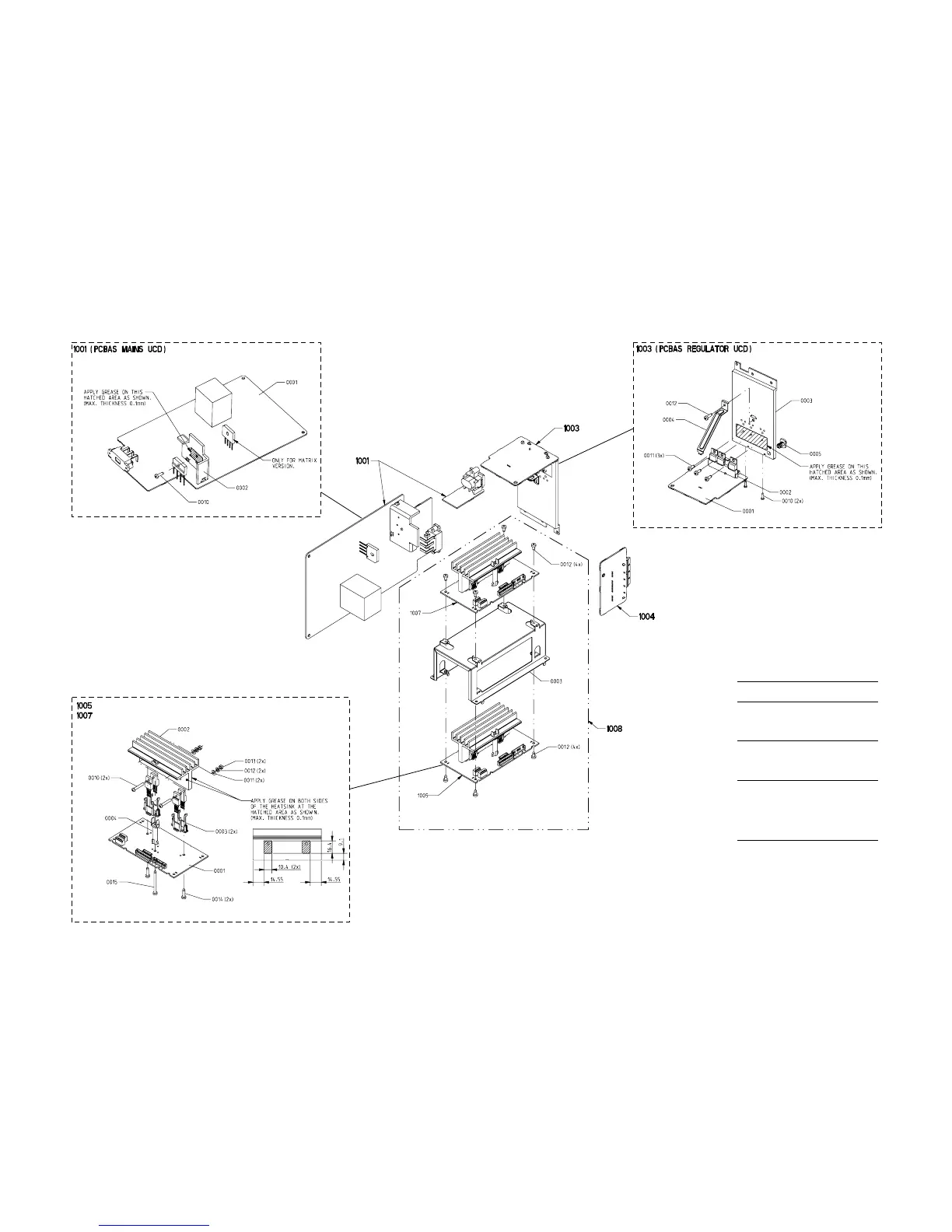

Philips FWM589 - Exploded View

Exploded View PWR303_3139 117 10401_Module UCD 200-250W dd wk0336
( PCBAS SPEAKER UCD )
( ASSY UCD BTL )
( PCBAS AMP UCD - BTL MASTER )
( PCBAS AMP UCD - BTL SLAVE )
SCREW LISTS
ASSY UCD BTL
0012 M3 x 6
PCBAS MAINS UCD
0010 D3 x 10
PCBAS REGULATOR UCD
0010 D2 x 8
0011 D2.5 x 8
0012 D3 x 10
PCBAS AMP UCD - BTL MASTER/SLAVE
0010 M3 x 18
0014 D3 x 12
0015 D3 x 35
EXPLODED VIEW
8-12
8-12
