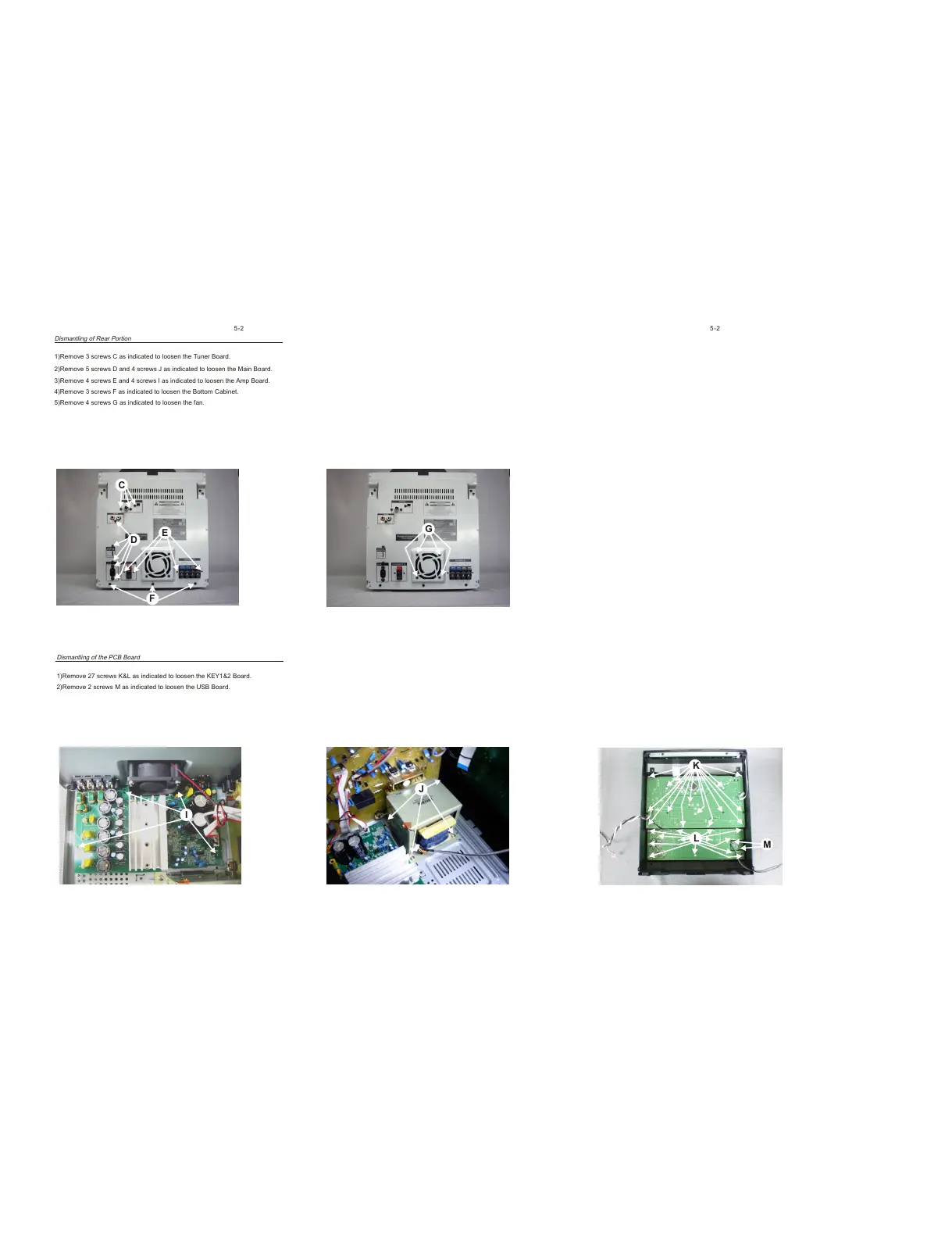

Dismantling of Rear Portion
Dismantling of the PCB Board
1)Remove 3 screws C as indicated to loosen the Tuner Board.
3)Remove 4 screws E and 4 screws I as indicated to loosen the Amp Board.
4)Remove 3 screws F as indicated to loosen the Bottom Cabinet.
5)Remove 4 screws G as indicated to loosen the fan.
2)Remove 5 screws D and 4 screws J as indicated to loosen the Main Board.
2)Remove 2 screws M as indicated to loosen the USB Board.
1)Remove 27 screws K&L as indicated to loosen the KEY1&2 Board.
C
F
D
E
I
J
K
L
M
G
5-2 5-2
To Next Page
