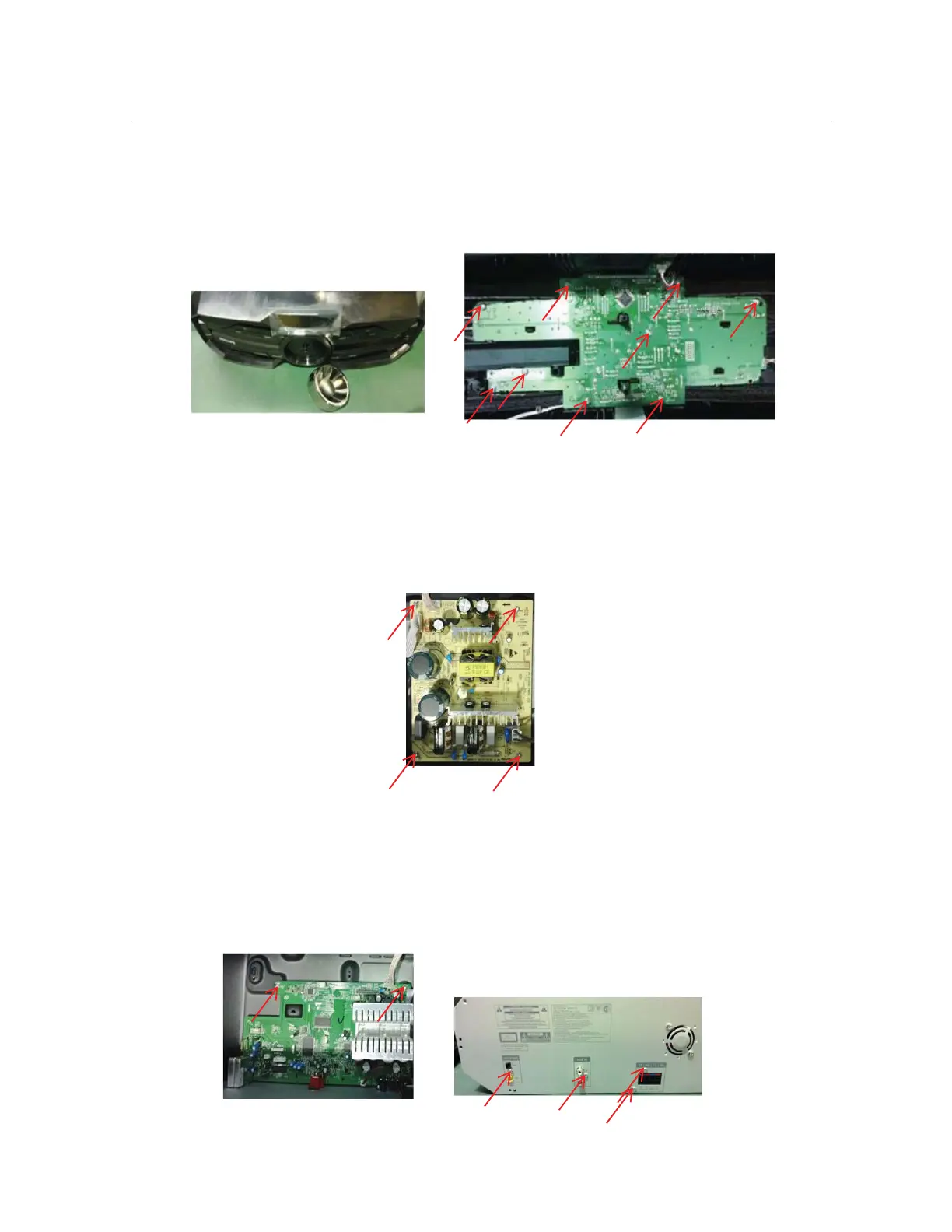

Step 10:Dismantle the front control board.pull out the volume knob. Remove 9 screws on the board.
Release the buckles on the board.Then pull out the board.(Figure 6)
Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.
6-3
Detailed information please refer to the model set.
(Figure 6)
Step 11:Dismantle the power board. Remove 4 screws on the board.(Figure 7)
(Figure 7)
Step 12:Dismantle the main board. Remove 4 screws on the back panel and 2 screws on the board.
(Figure 8)
(Figure 8)
