Philips GC1703 User Manual

GC1703
BACKPLATE 14
LAMP ASSY 7
CORDSET 10
SWIVEL 9
DOSING ASSY 13
INLAY 8
Remove Screw A
Remove BACKPLATE 14
Remove DOSING ASSY 13
Remove Screw B
Remove INLAY 8
DISASSEMBLY ADVICE
THERMOSTAT DIAL 12
WATER TANK ASSY 11
THERMOSTAT BUSH 6
METAL SHEET 5
COVER 4
DOSING SEAL 2
RYTON RING 3
SOLEPLATE ASSY 1

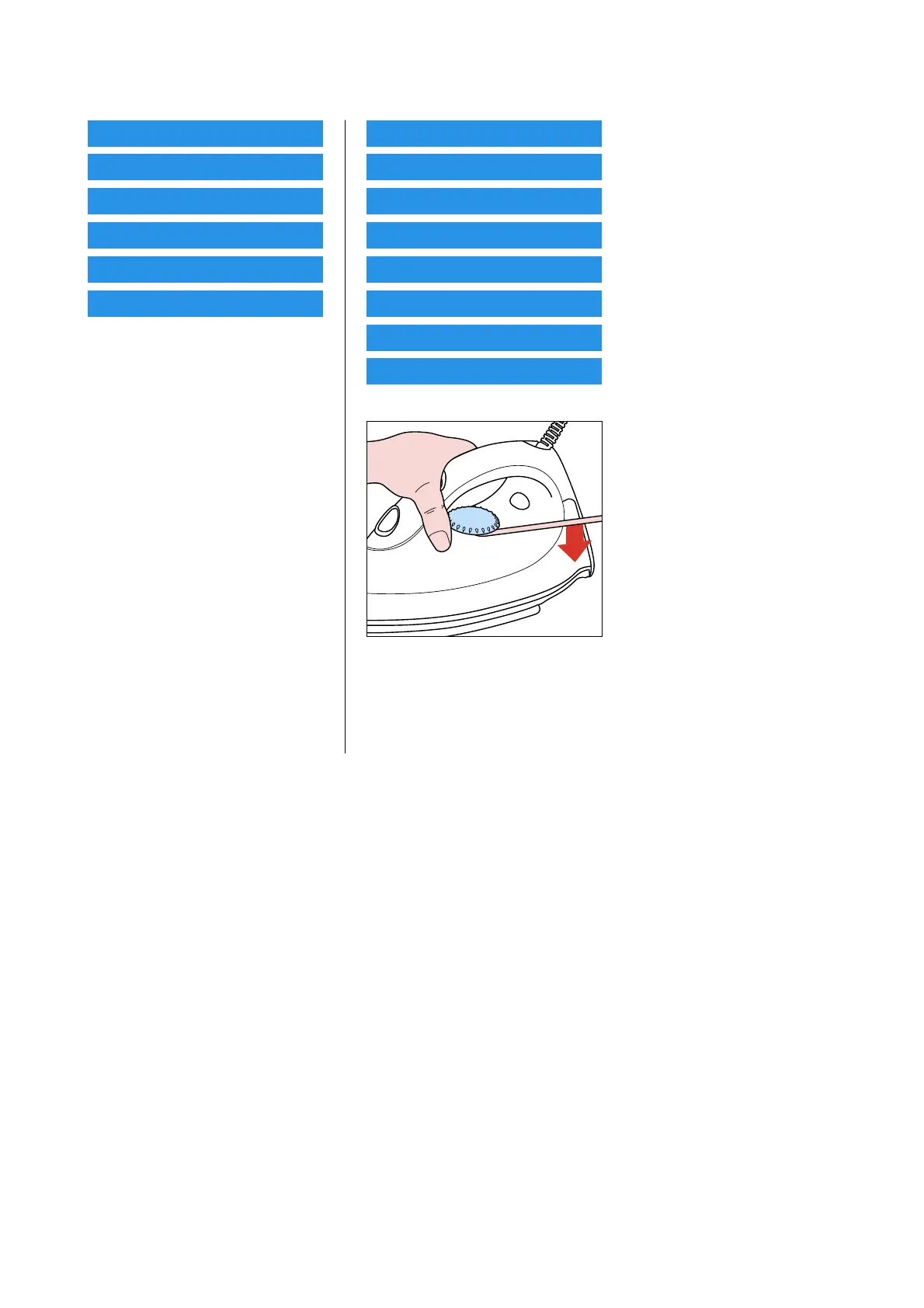

Remove THERMOSTAT DIAL 12
Remove Screws C1, C2, C3
Remove WATER TANK ASSY 11
Remove THERMOSTAT BUSH 6
Remove Screws D1, D2, D3
Remove COVER 4
REPAIR INSTRUCTION
- In case of any defect on the thermostat, the complete soleplate has to be replaced.
- In the event that no information about the type number & voltage has been stamped onto the type plate sparepart, engrave at
least type number & voltage onto the typeplate sparepart with a tool when replacing this part.
- After product has been repaired, it should function properly & has to meet the safety requirements & legal regulations as officially
laid down at this moment.
2-4

Philips GC1703 Specifications

General

Type	Steam iron
Cord length	1.8 m
Product color	Blue, White
Soleplate type	-
Variable steam	Yes
Angle of rotation	180 °
Water tank capacity	0.18 L
Steam boost performance	- g/min
Vertical steam function	No
Continuous steam performance	17 g/min
Iron power	1000 W
AC input voltage	110 V
AC input frequency	50-60 Hz

Weight and Dimensions

Depth	115 mm
Width	261 mm
Height	136 mm
Weight	1060 g
