GC1703

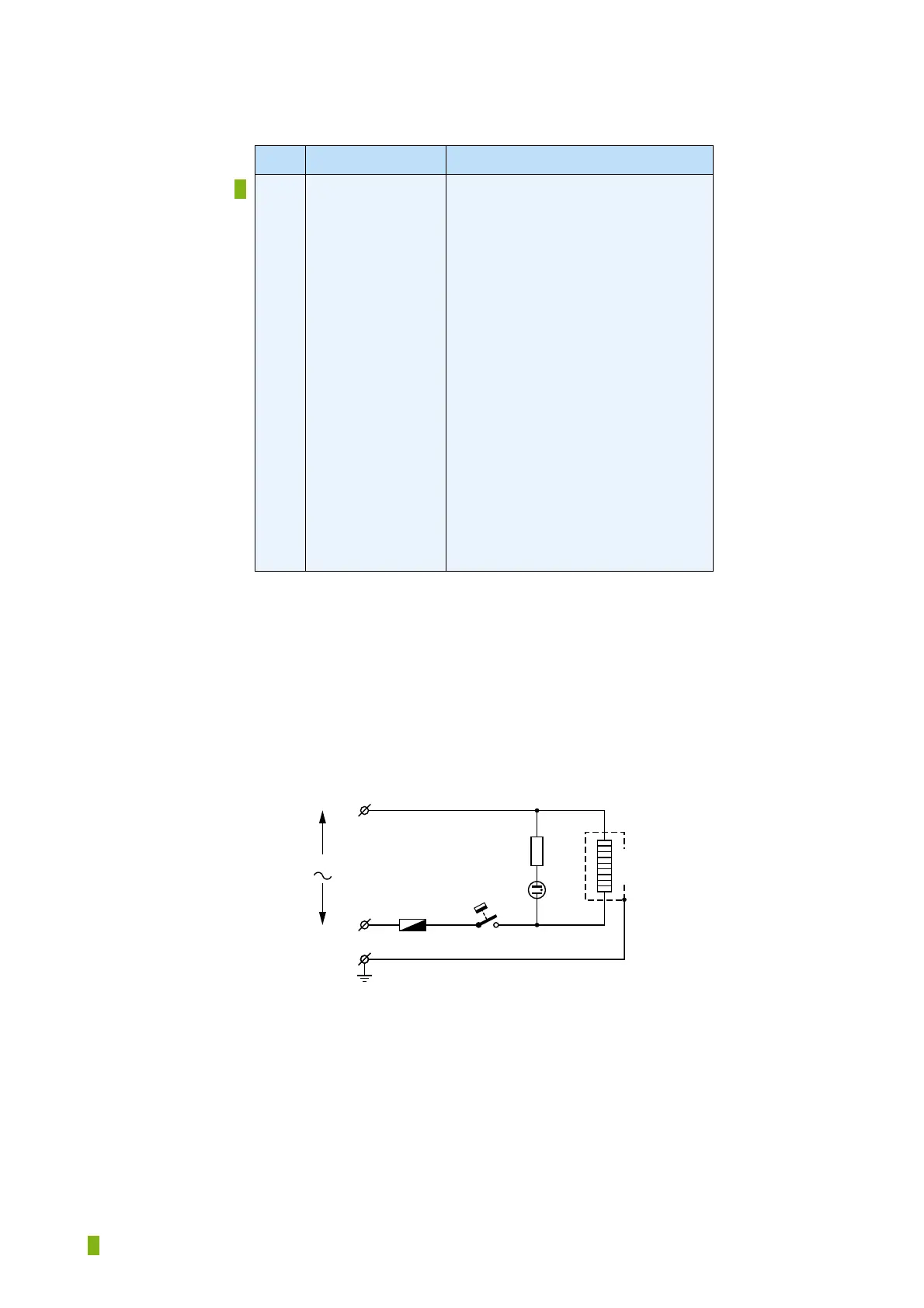

PARTS LIST & ELECTRICAL DIAGRAM
Resistor
Lamp
N
L
E
Heating
Element
INPUT
Thermostat
Thermal
Fuse
3-4
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
4239 021 41931
4239 021 37080
4239 015 56600
4239 015 70150
4239 026 24720
4239 010 10500
4239 026 13220
4239 021 14520
4239 021 37030
4239 025 96960
4239 000 06720
4239 000 07150
4239 021 36940
4239 021 37050
4239 021 37000
4239 021 38600
4239 015 40240
4239 015 40580
Soleplate assy (Aluminium) 230 V
Soleplate m. a. 110 V
Dosing seal
Ryton ring
Cover (no SOS)
Metal sheet
Thermostat bush
Lamp assy
Inlay printed
Swivel
Cordset EU
Cordset 110 V
Water tank assy
Thermostat dial printed - Eng
Dosing assy
Dosing assy 110 V
Backplate impressed
Backplate impressed - 110 V indication
= changed
