GC9246
11-12
REPAIR INSTRUCTIONS
5. Crimping INOX CLAMP 34
When exchanging BOILER ASSY 36 or DE-AIR VALVE 32 or BRAIDED RUBBER HOSE BOILER 33, it is necessary to
replace the INOX CLAMP 34. Below instructions ensure that the inox clamp is crimped correctly.
CAUTION: When crimping on plastic part like DE-AIR VALVE, avoid over crimping which may lead to plastic part crack.

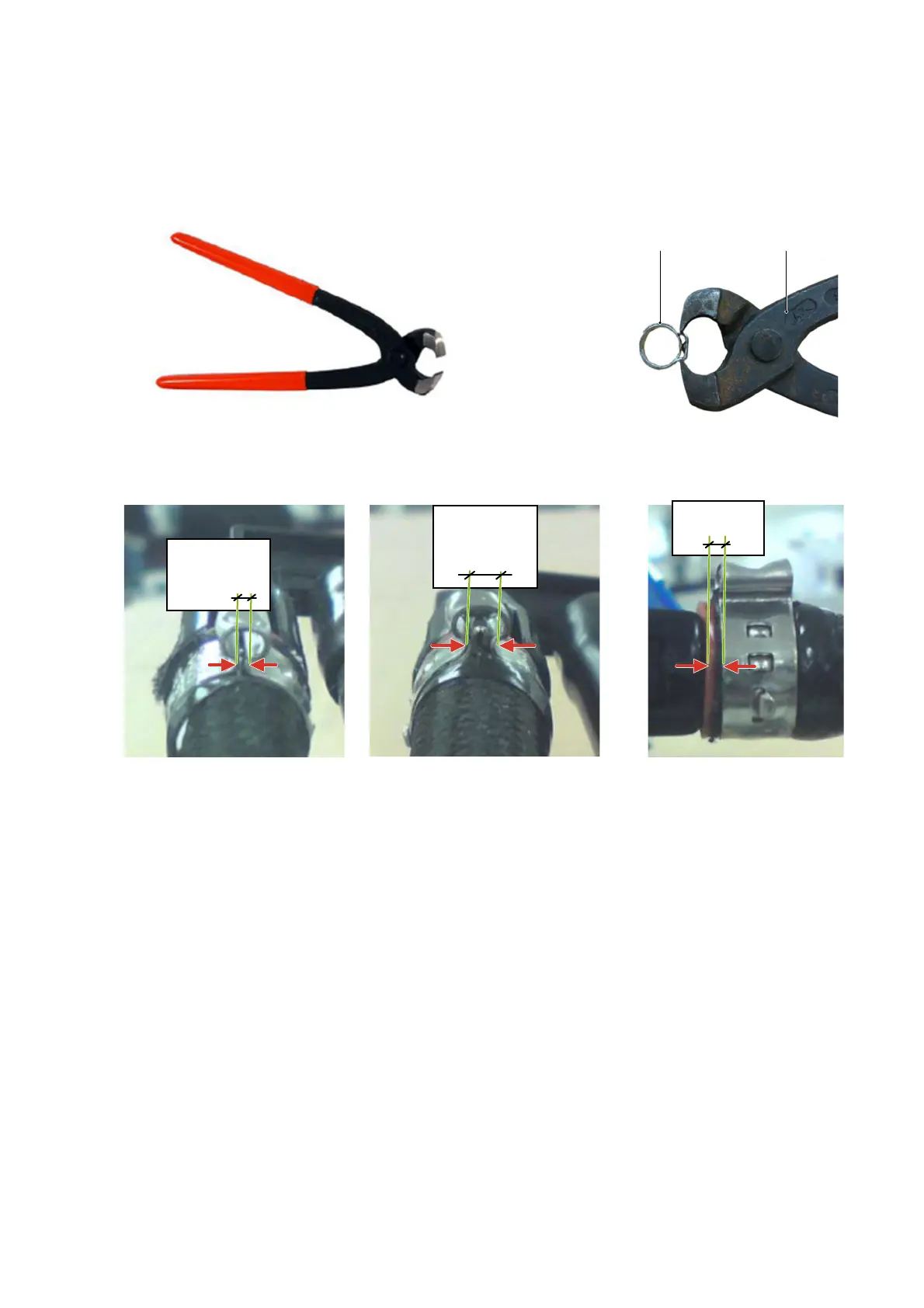

Inox clamp Crimping tool
Knipex Crimping tool
2.7 mm
(max)
1 - 2 mm
Distance from edge of
crimp to rubber hose
Fold in crimpDirect crimp form
3.5 mm
(max)
To Next Page
