GC9920
7-19
DISASSEMBLY ADVICE - MOVING COLUMN
Remove screws J1, J2
Disassemble PLATE PIVOT FLANGE LEFT 16
Disassemble PLATE PIVOT FLANGE RIGHT 17
Remove screws K1, K2
Disassemble HANDLE LIFT LEFT 18
Disassemble HANDLE LIFT RIGHT 19

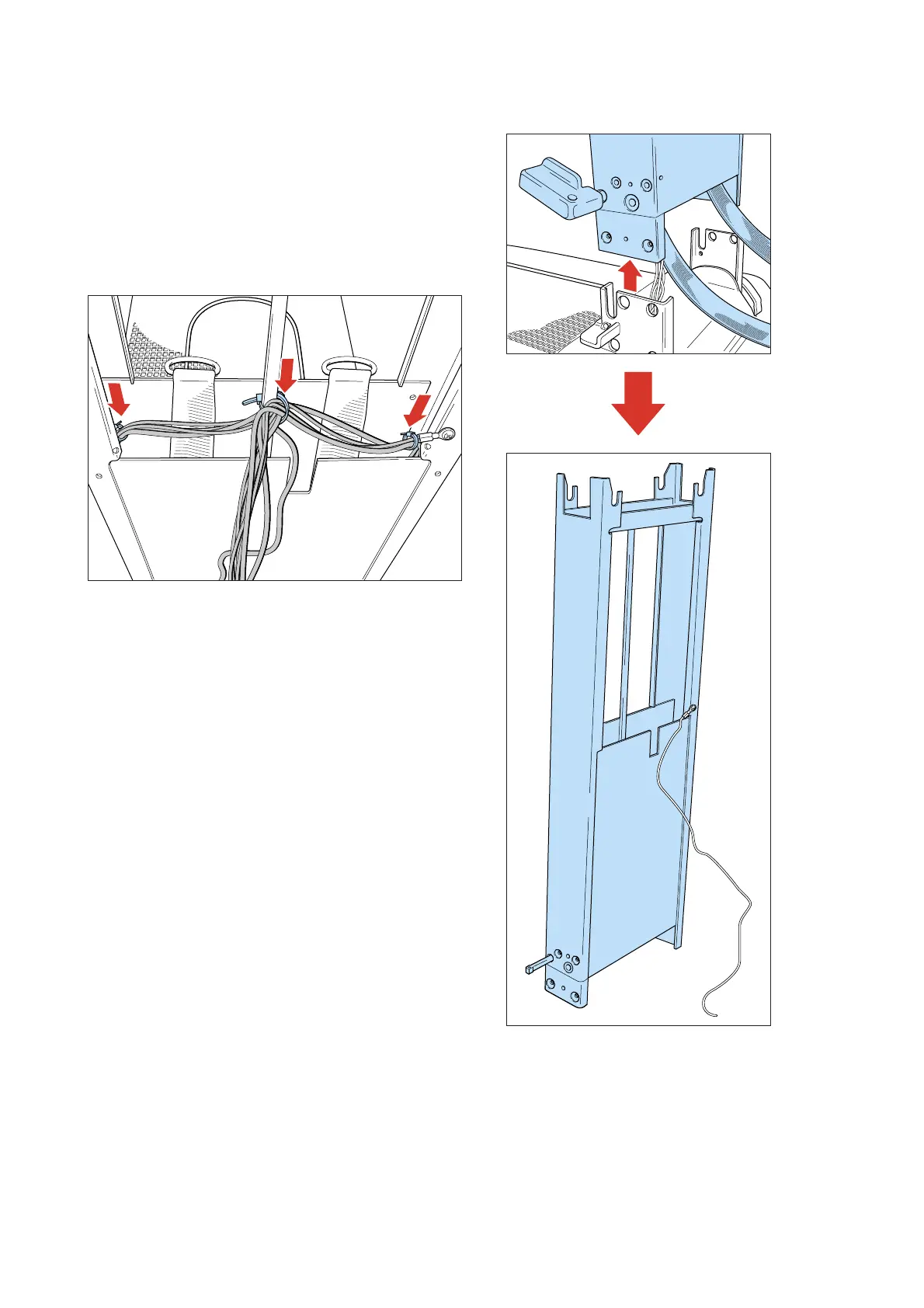

Remove T10 Torx screws L1 - L8
Cut 3x cable ties to free the wires on MOVING
COLUMN ASSY 15
Disassemble MOVING COLUMN ASSY 15
