DISSASEMBLY ADVICE

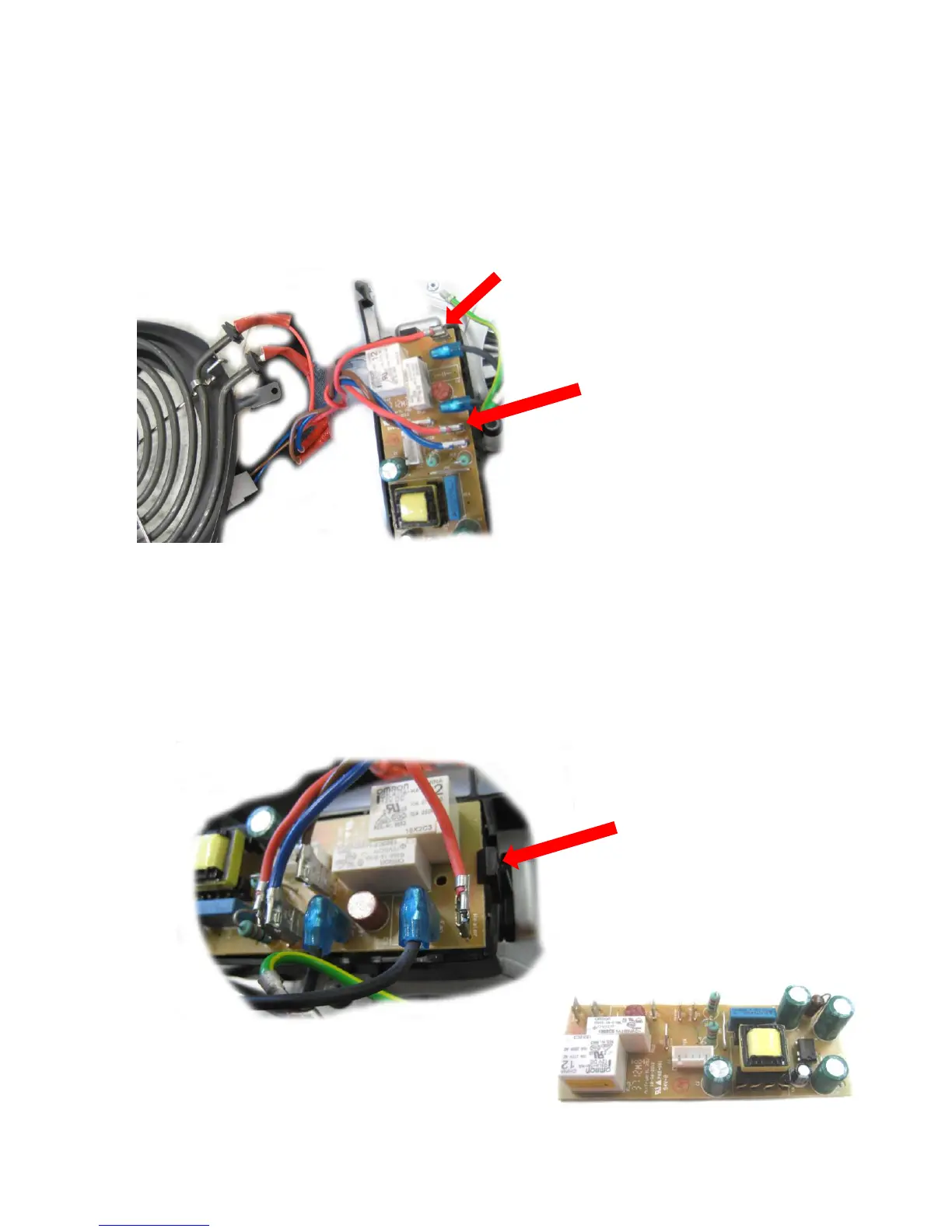

E. PCB removal
1. open the hook and remove all crimps
D. Heating element removal
1. remove the crimps from the PCB part
HD9230/50-59
