DISSASEMBLY ADVICE

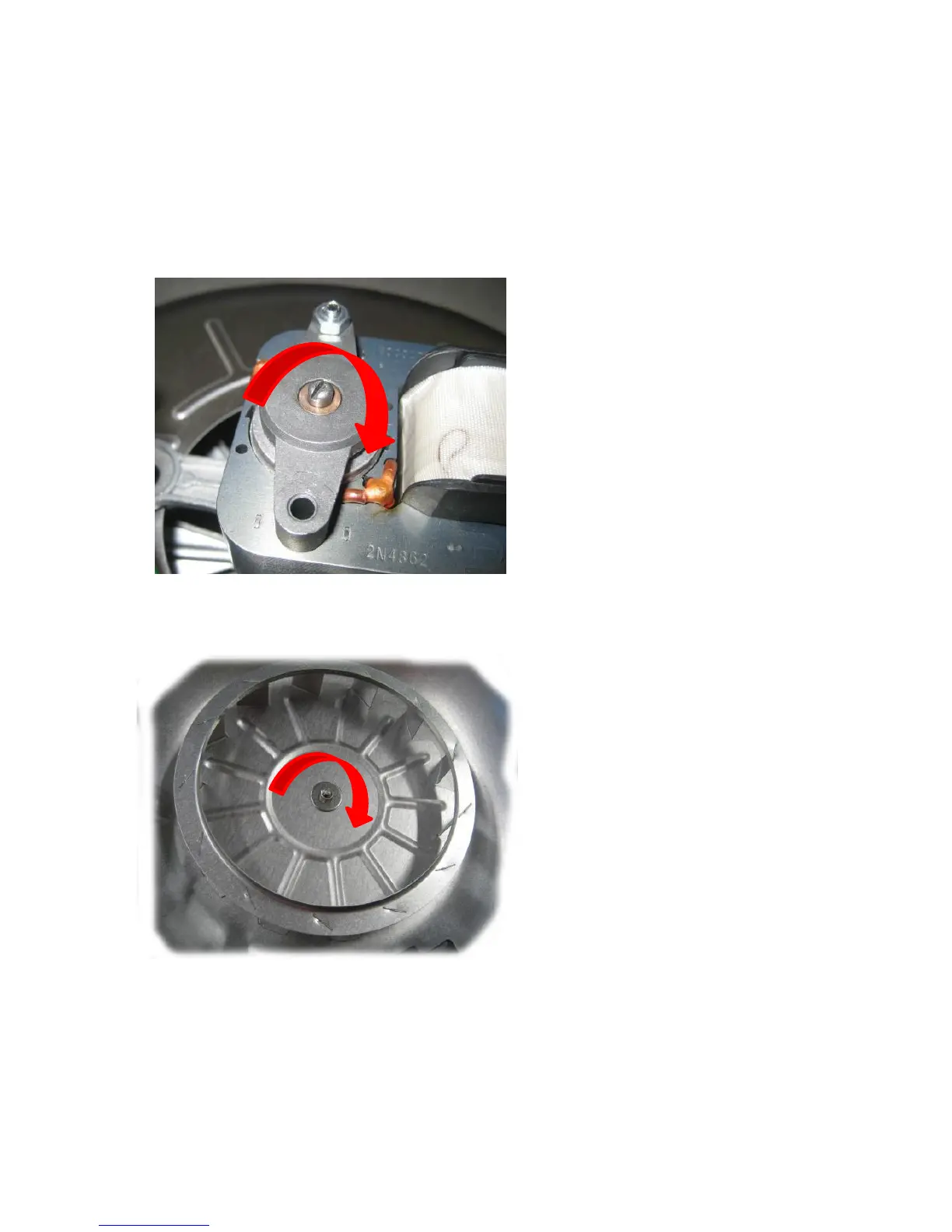

F. Motor/ventilator removal
1. turn the screw into the right side, hold the ventilator
2. turn the screw into the right side
HD9230/50-59
