Philips HQ6645 User Manual

HQ6645

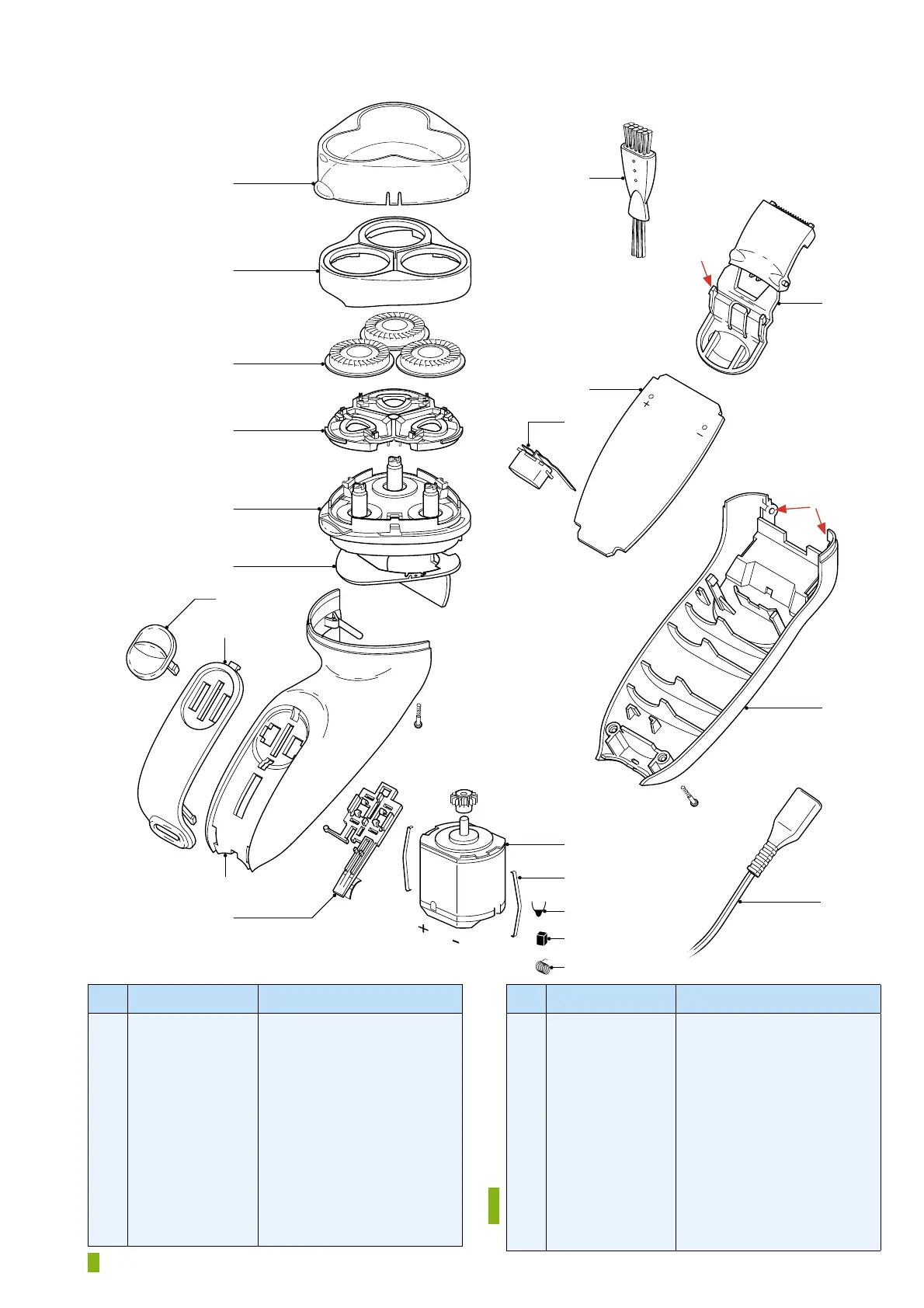

EXPLODED VIEW & PARTS LIST
A1
B1
21
20
22
6
5
4
3
2
1
7
8
12
10
9
11
15
16
13
17
18
19
X
Y
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
4222 036 05430
4222 036 13100
4222 036 08370
4222 036 05460
4222 036 13110
4222 036 13150
4222 036 09690
4222 036 13120
4222 036 13170
4222 036 05510
4822 479 30183
4222 036 09490
Protecting cap
Bracket
HQ55 shaving head
Holder assy
Hair chamber complete
Dust seal
On/off knob
Front panel
Housing
On/off slide assy
Cleaning brush
Printed circuit board
Pos Service code Description
13
15
16
17
18
19
20
21
22
4222 036 10480
4222 036 13160
4822 492 71735
4222 036 05520
4822 362 40181
4822 492 62703
4222 036 13130
4222 036 13140
4822 321 10344
4822 321 10096
4822 321 10095
4822 502 30526
Inlet
Motor assy
Motor spring
Capacitor Y5P 470 pF
Carbon brush
Spring
Trimmer assy
Cover
Flex assy USA
Flex assy GB
Flex assy EU
Screw (torx-slot)
= changed
