Philips HTB3540 User Manual

10 EN

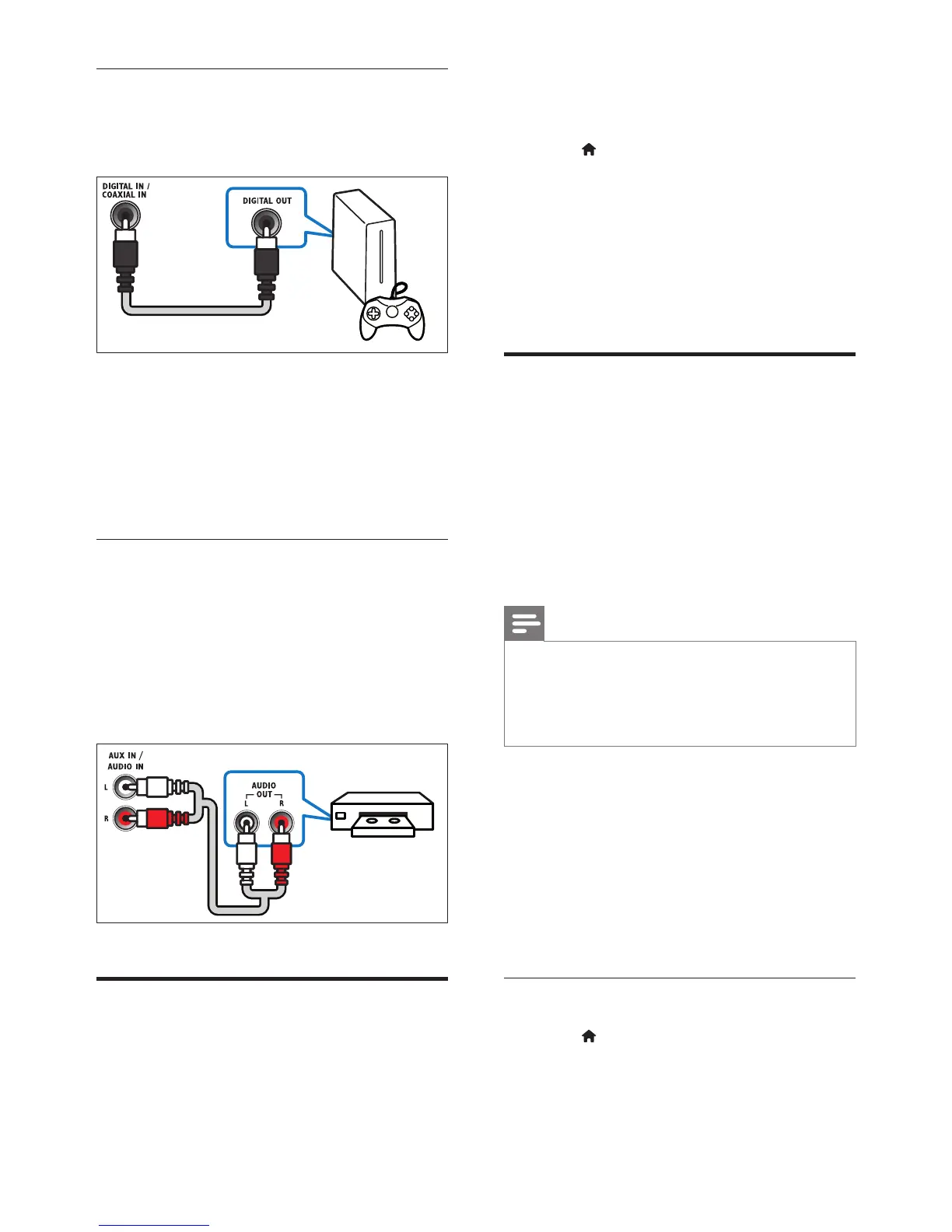

Option 2: Connect audio through a
digital coaxial cable
Good quality audio
1 Using a coaxial cable, connect the
COAXIAL connector on your home
theater to the COAXIAL/DIGITAL OUT
connector on the TV or other device.
• The digital coaxial connector might be
labeled DIGITAL AUDIO OUT.
Option 3: Connect audio through
analog audio cables
Basic quality audio
1 Using an analog cable, connect the AUX
connectors on your home theater to the
AUDIO OUT connectors on the TV or
other device.
Set up speakers
Set up the speakers manually to experience
customized surround sound.
Before you start
VCR
Make the necessary connections described in
the quick start guide, and then switch the TV to
the correct source for your home theater.
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [Audio] > [Speaker Setup].
4 Enter the distance for each speaker, and
then listen to the test tones and change
the volume. Experiment with the speaker
positions to nd the ideal setting.
Set up EasyLink (HDMI-CEC
control)
This home theater supports Philips EasyLink,
which uses the HDMI-CEC (Consumer
Electronics Control) protocol. EasyLink-
compliant devices that are connected through
HDMI can be controlled by a single remote
control.
Note
• Depending on the manufacturer, HDMI-CEC is known
by many names. For information on your device, see
the user manual of the device.
• Philips does not guarantee 100% interoperability with
all HDMI-CEC devices.
Before you start
• Connect your home theater to the HDMI-
CEC compliant device through HDMI
connection.
• Make the necessary connections described
in the quick start guide, and then switch
the TV to the correct source for your
home theater.
Enable EasyLink
1 Press (Home).
2 Select [Setup], and then press OK.
3 Select [EasyLink] > [EasyLink] > [On] .

Philips HTB3540 Specifications

General

Number of satellite speakers	2
Satellite speakers RMS power	166 W
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker woofer diameter (imperial)	3 \
Subwoofer type	Passive subwoofer
Bass adjustment	Yes
Subwoofer frequency range	20 - 150 Hz
Subwoofer driver diameter (imperial)	8 \
Supported radio bands	FM
Preset stations quantity	40
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	160 W
MP3 bit rates	32 - 320 Kbit/s
Audio decoders	DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD
RMS rated power	1000 W
Audio output channels	5.1 channels
Audio formats supported	AAC, ADTS, FLAC, MKA, MP3, OGG, Vorbis, WAV, WMA
Total Harmonic Distortion (THD)	30 %
Battery type	AAA
Package type	Carton
Package weight	16.31 kg
Picture enhancement	Rotate, Zoom, HD (720p, 1080i, 1080p/ 24fps)
Image formats supported	GIF, JPG, PNG
Tare weight outer carton	1.62 kg
Cables included	AC, HDMI
USB version	2.0
HDMI version	1.4
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) out	0
Aspect ratio	21:9
Video upscaling	No
Video formats supported	AVCHD, DIVX HD, H.264, ISO, MPEG1, MPEG2, MPEG4, WMV9
Disc types supported	BD, BD-R, BD-RE, CD, CD-DA, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	SVCD, VCD
Optical disc player type	Blu-Ray player
Consumer Electronics Control (CEC)	EasyLink
Product color	Black
Type of shelf-placement	Laying
Package depth	400 mm
Package width	669 mm
Package height	430 mm

Weight and Dimensions

Main unit weight	2660 g
Subwoofer weight	3660 g
Center speaker weight	650 g
Main unit dimensions (WxDxH)	435 x 286.5 x 56.3 mm
Subwoofer dimensions (WxDxH)	178 x 343 x 303 mm
Front speaker dimensions (WxDxH)	90 x 82 x 185 mm
Center speaker dimensions (WxDxH)	223 x 80 x 102 mm
