Philips HTB3560/12 Service Manual

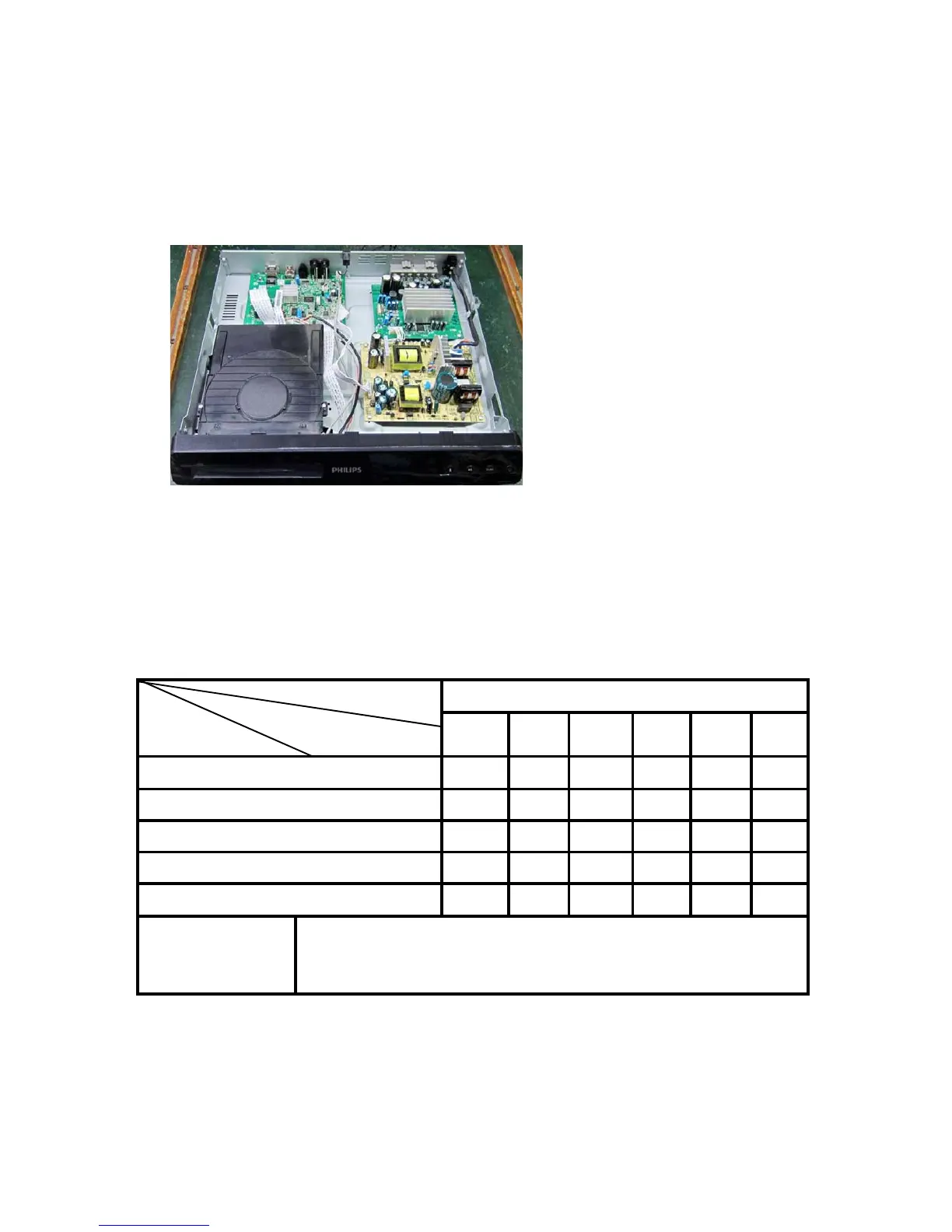

VERSION VARIATIONS
Type / Versions
Service Police /12 /78 K/98 /94 40 55
MMMMMM
Board in used
HTB3560
MAIN BOARD
M M +C M +C M +C M +C M +C
M M +C M +C M +C M +C M +C
M M +C M +C M +C M +C M +C
LOADER M M M M M M
Tips
FRONT CONTROL BOARD
C Component Lever Repair
AMPLIFIER BOARD
POWER BOARD
＊
Ti
ps：
C
--
C
omponen
t
L
ever
R
epa
i
r
M -- Module Lever Repair
X -- Used

Philips HTB3560/12 Specifications

Sound System

center speaker output power	50 W
cube speaker output power	2 x 50 W
satellite speaker output power	2 x 50 W
subwoofer output power	50 W
total power RMS at 30% THD	300 W

Loudspeakers

drivers per cube speaker	1 x 2.5" woofer
cube speaker frequency range	150 - 20k Hz
cube speaker impedance	4 ohm
drivers per satellite speaker	1 x 2.5" woofer
satellite speaker impedance	4 ohm
satellite speaker frequency range	150 - 20k Hz
subwoofer driver	1 x 5.25" woofer
subwoofer frequency range	20 - 150 Hz
subwoofer impedance	4 ohm

Connectivity

front connections	Music iLINK, USB
rear connections	AUX in, Click-fit Speaker Connectors, Composite video (CVBS) output, Digital optical in, Ethernet, Fixed FM Antenna, HDMI 1.4 output (ARC)

Power

power consumption	60 W
power supply	220-240V, 50Hz
standby power consumption	< 0.5 W

Dimensions and Weight

main unit dimensions	360 x 58 x 325 mm
main unit weight	2.40 kg
center speaker dimensions	84.5 x 89 x 89 mm
center speaker weight	0.30 kg
center speaker cable length	2 m
front speaker dimensions	85 x 160 x 95 mm
front speaker weight	0.28 kg
front speaker cable length	3 m
rear speaker dimensions	84.5 x 159 x 80 mm
rear speaker weight	0.30 kg
rear speaker cable length	7 m
subwoofer dimensions	160 x 267.5 x 265 mm
subwoofer cable length	2 m
subwoofer weight	2.5 kg
packaging dimensions	520 x 310 x 377 mm
weight including packaging	8.75 kg
