Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.
3-2
Detailed information please refer to the model set.

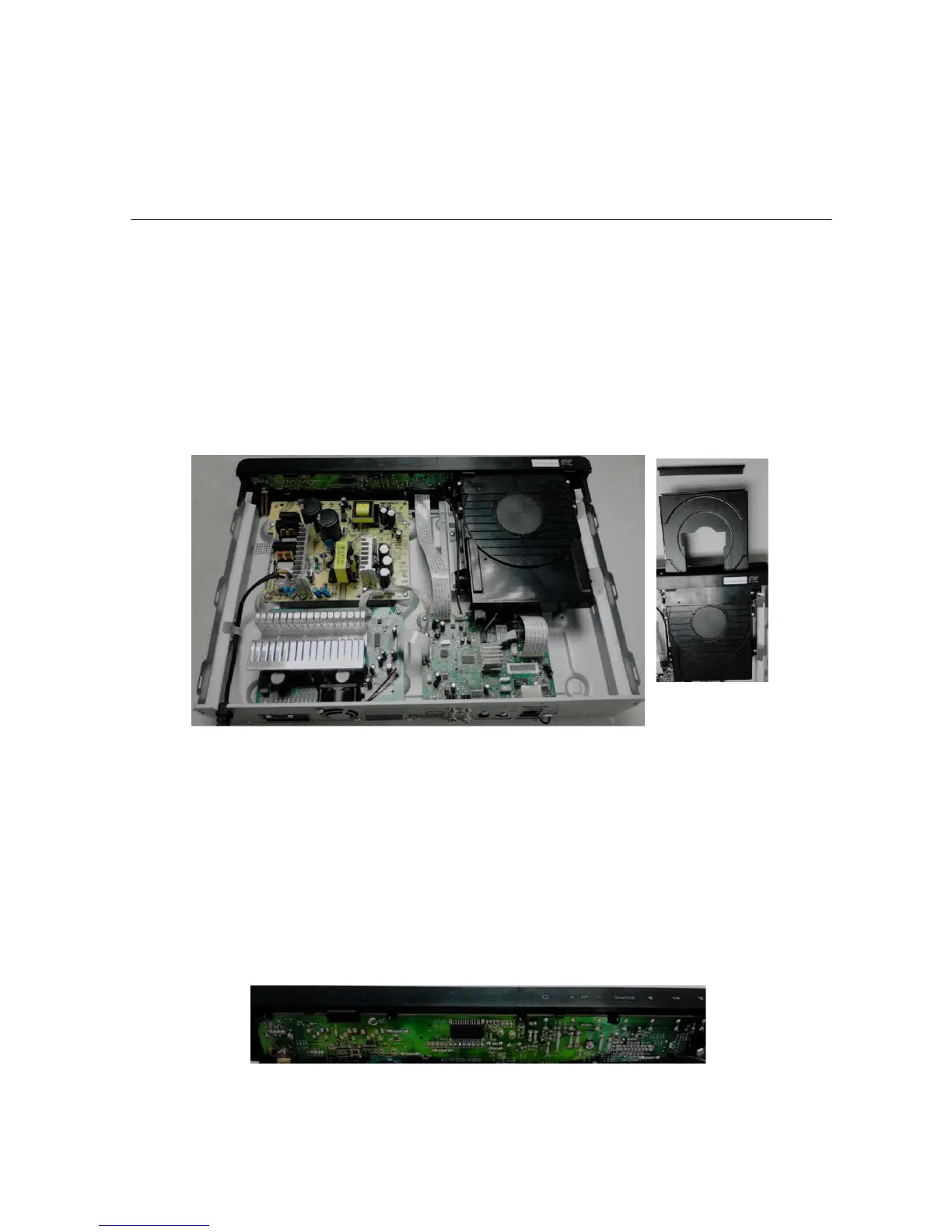

Step 2:Dismantle the loader.Open the tray,diamantle the CD door,disconnect connectors(J11,XP7),
remove 2 screws beside the loader,then pull up the loader.(Figure 2)
Step 3:Dismantle the main board.Disconnect connectors(XP6,XP9,XP4,XP13,XP15),remove 2
screws on the main board and 3 screws on the back panel.then pull up the main board.(Figure 2)
Step 4:Dismantle the amplifier board.Disconnect connectors(XP3,XP58),remove 2 screws on the
amplifier board and 4 screws on the back panel.then pull up the amplifier board.(Figure 2)
Step 4:Dismantle the power board.Remove 4 screws on the power board, then pull up the board.(Figue 2)
Figue 2
Figue 3
Step 5:Dismantle the front control board.Remove 4 screws on the board, then pull up the board.(Figue 3)
