Philips HTL3310 - Position and Wall Mount the SoundBar

3
EN

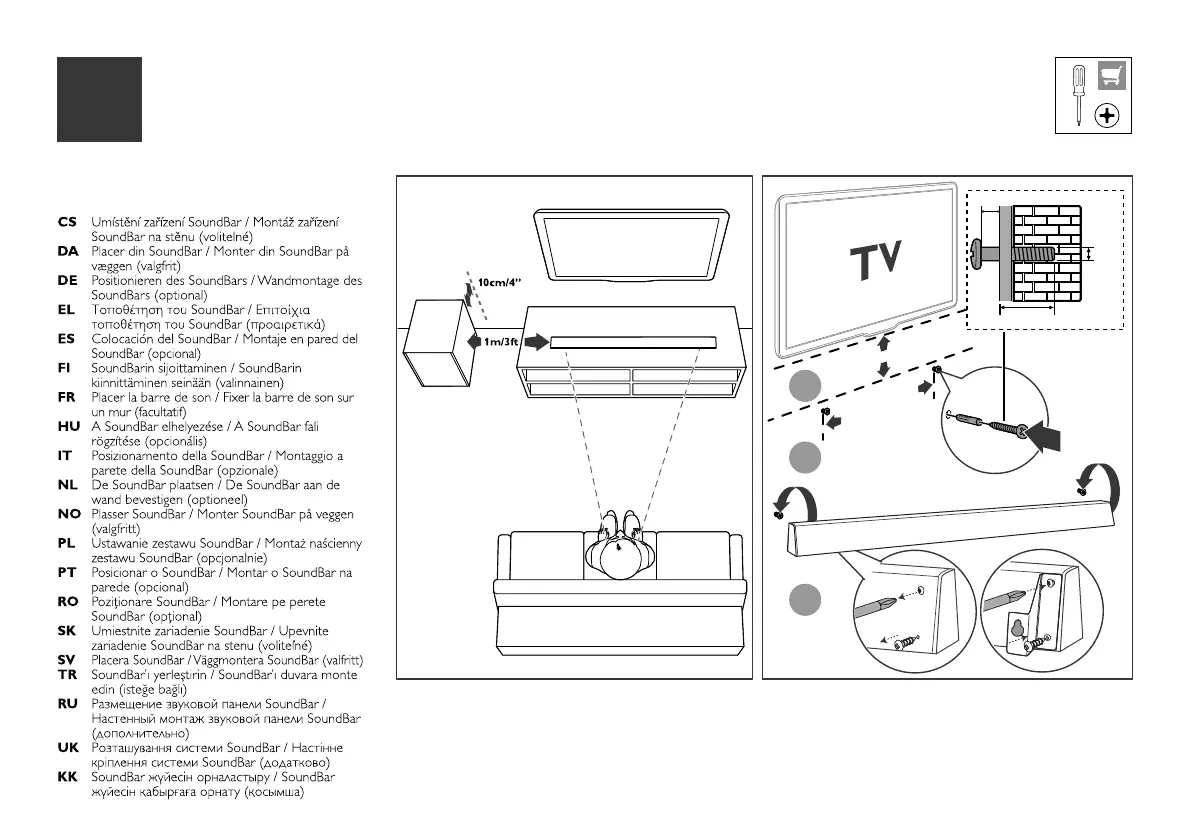

Position the SoundBar/ Wall mount the SoundBar
(optional)
CN
安放音箱/壁挂音箱（可选）
1
2
1
751 mm/29.5"
~50mm/2.0"
3
3.5-4mm/0.14”-0.16”
4mm/
0.16”
>25mm/0.98”
Subwoofer
Frequency band/Output power
≤6dBm
Suggested wall mounting height
Yo u are suggested to install the TV rst before wall mounting the soundbar.
With a TV preinstalled, wall mount the soundbar 50mm/2.0’’ in distance from the bottom of the TV.
If you wall mount the soundbar rst, Drill 2 parallel holes (Ø 3-8 mm each according to wall type) in the wall. The distance
between the holes should be 751mm/29.5’’.
