CONNECTIONS
EN
(Supports up to 1080i resolution.)
(Supports only 480i resolution.)
• Connect this unit directly to the TV. If the RCA audio / video cables are connected to a VCR, pictures may be distorted
due to the copy right protection system.
HDMI Connection
Better
COMPONENT
VIDEO IN
Y
PB/CB
PR/CR
B
Video
RCA component video cable
Your TV
Go To
High
Definition
TV
No supplied cables are used in this connection:
Please purchase the necessary cables at your local store.
Basic
VIDEO IN
C
Video
RCA video cable
Your TV
Go To
Standard
Definition
TV
Supplied cables used in this connection are as follows:
• RCA video cable x 1
2

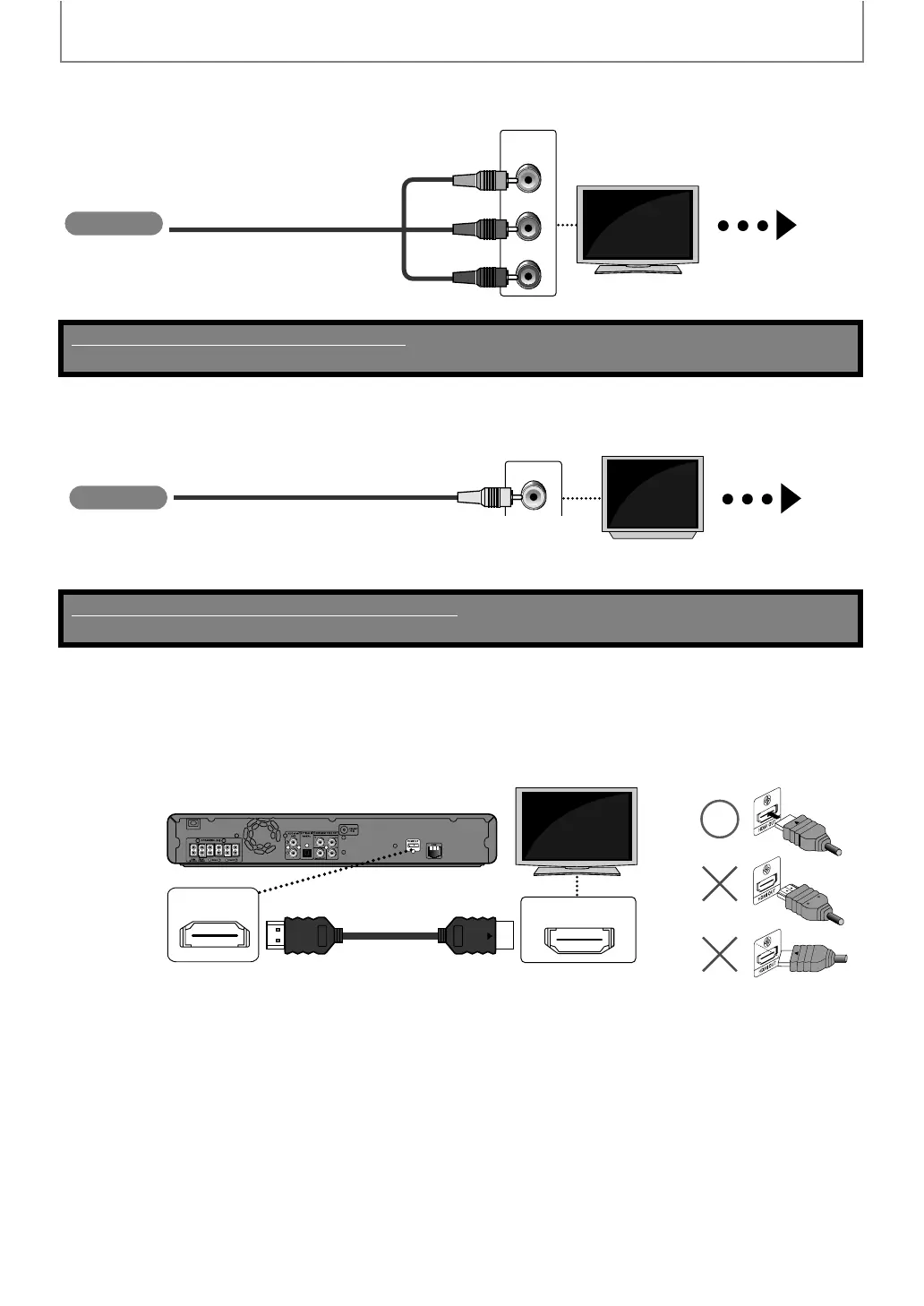

Connect the cables by following the descriptions below.
A
HDMI IN
($-)/54
HDMI cable
Your TV
