Philips HTS5540 - Disassembly Instructions; Top Panel and DVD Module Disassembly

3 - 1 3 - 1

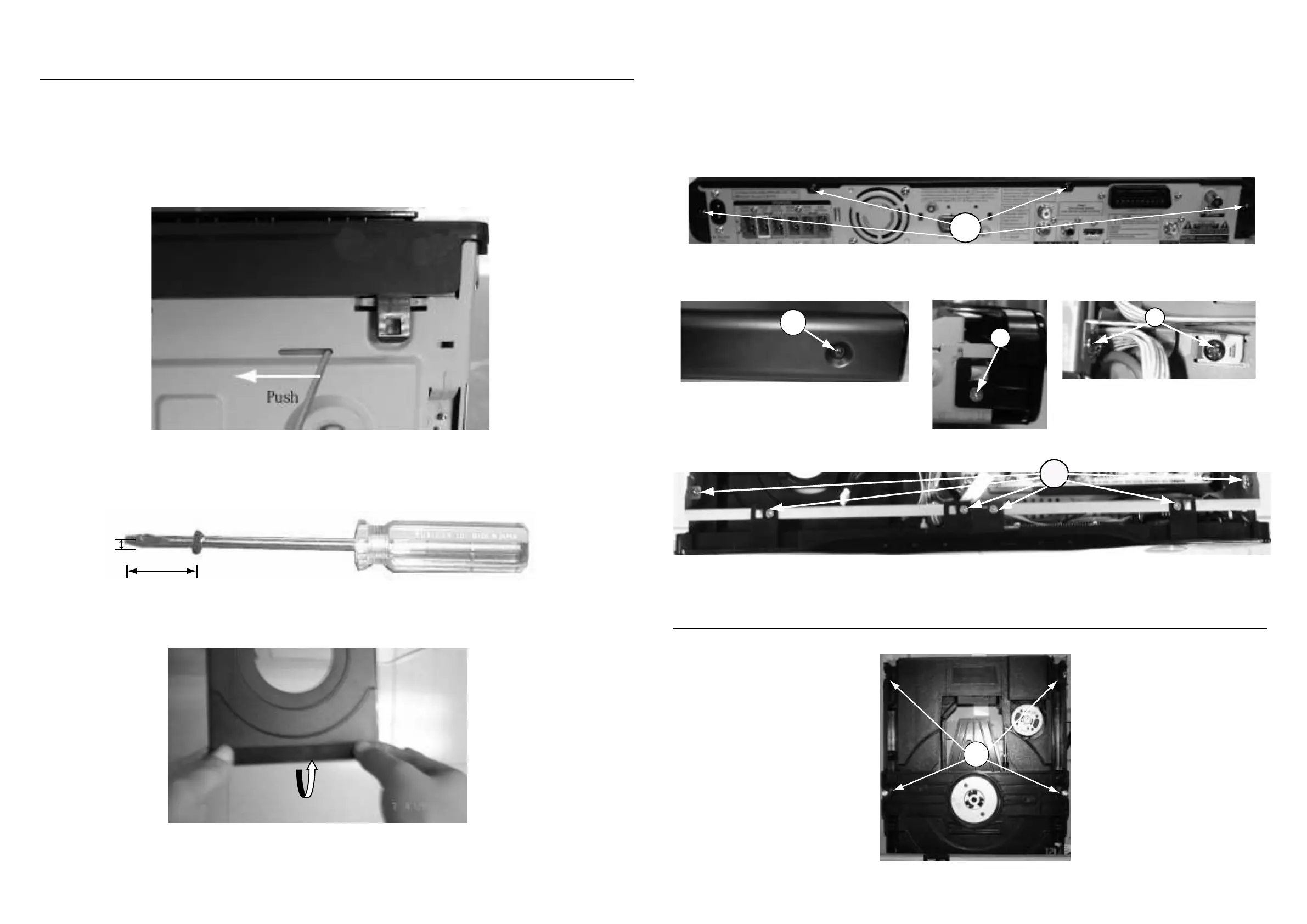

DISASSEMBLY INSTRUCTIONS
3) Loosen 6 screws and remove the Top Cover by lifting the rear portion upwards before sliding it out towards the rear.
- 4 screws “A” at the back panel as shown in  g ure 4.
- 1 screw “B” each on the left & right side as shown in  gure 5.
4) Loosen 10 screws remove the front panel.
- 6 screws “C” at the bracketl as shown in  g ure 8.
- 1 screw “D” each on the left & right side as shown in  gure 6.
- 2 screw “E” as shown in  gure 7.
24mm
mm2
Figure 2
Dismantling of theTop & Front Panel Assemble
1) Open the DVD Tray by using the Open/Close Button while the Set is ON and disconnect the mains supply after removing the Tray
Cover.
Note: If this is not possible, the DVD Tray has to be open manually.
Take a mini screw driver about 2mm diameter and make a marking 24mm from the tip as shown in  gure 2 . Place the set on its
side, insert the mini screw driver till the marking and slide it towards the left as shown in  gure 1 until the Tray moves out of the Front
Panel.
2) Return the set to its upright position and remove the Tray Cover as shown in Figure 3 and close the tray manually by pushing it back
in.
Figure 1
Figure 3
Figure 4
A
Figure 5
B
Dismantling of the DVD Module
1) Loosen 4 screws “ F “ at the DVD Module as shown in  gure 9.
C
D
E
Figure 6
Figure 7
Figure 8
F
Figure 9
