Mechanical Instructions
EN 14 LCD LPL 2k84.
4.7 Model LC420WUF
4.7.1 Control Board (T-CON Board)

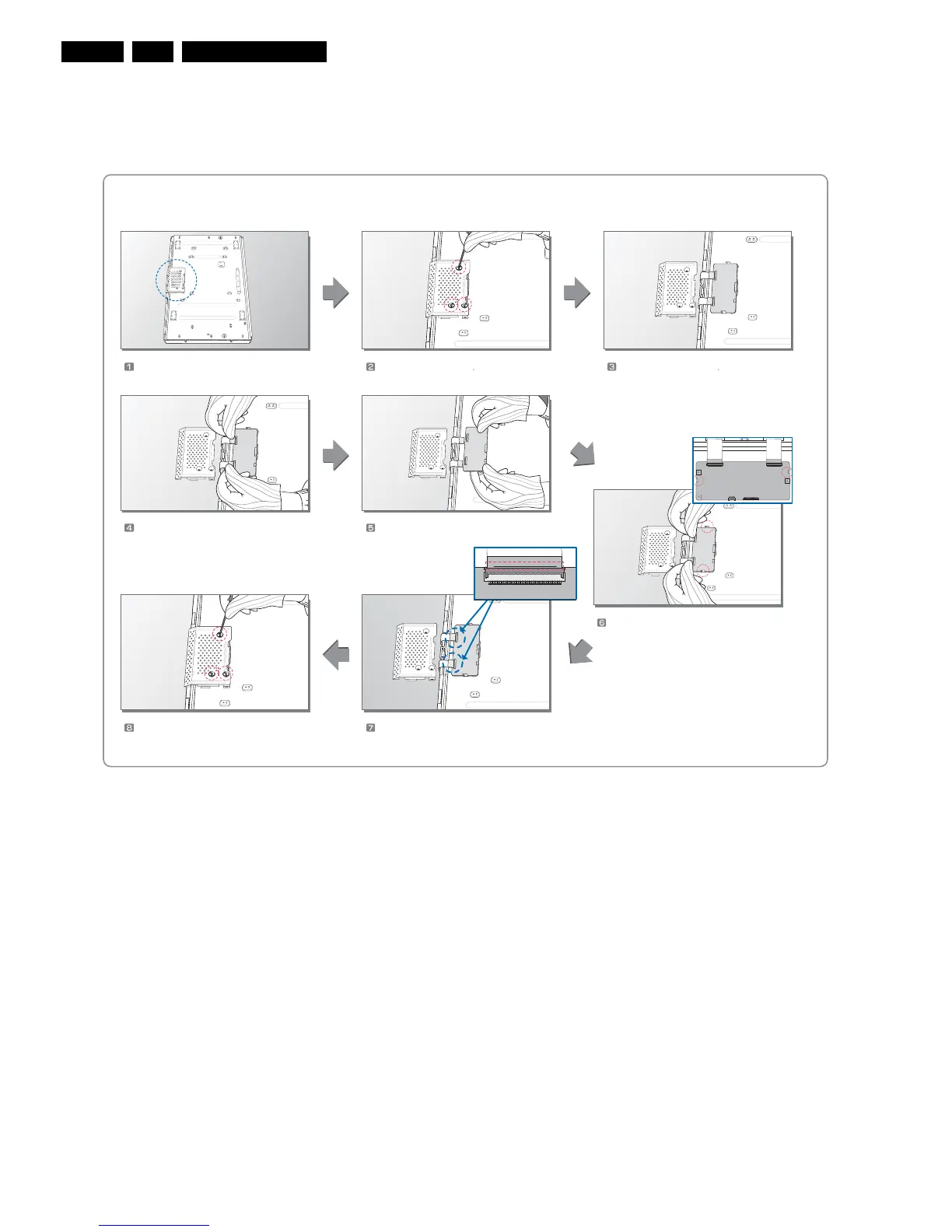

Figure 4-10 Replacement instructions T-CON board
4.7.2 Inverter (Master) Board
These displays have the Inverter Board located on the PSU.
This is a so-called IPB (Integrated Power Board).
Separate the 96pin FFC. Separate the T-CON Board.
Replace of T-CON Board and
Assemble the 96pin FFC.
* Guide Pin station keeping check.
Attach the Cover Shield and
Assemble the Screw(3EA).
Check the FFC(96pin).
Prepare the LCM. Separate the Screw(3EA)
Separate the Cover Shield
I_17780_004.eps
160408
MODEL: LC420WUF-SAC1
