Service Modes, Error Codes, and Fault Finding
EN 19LCD LPL 2k8 5.

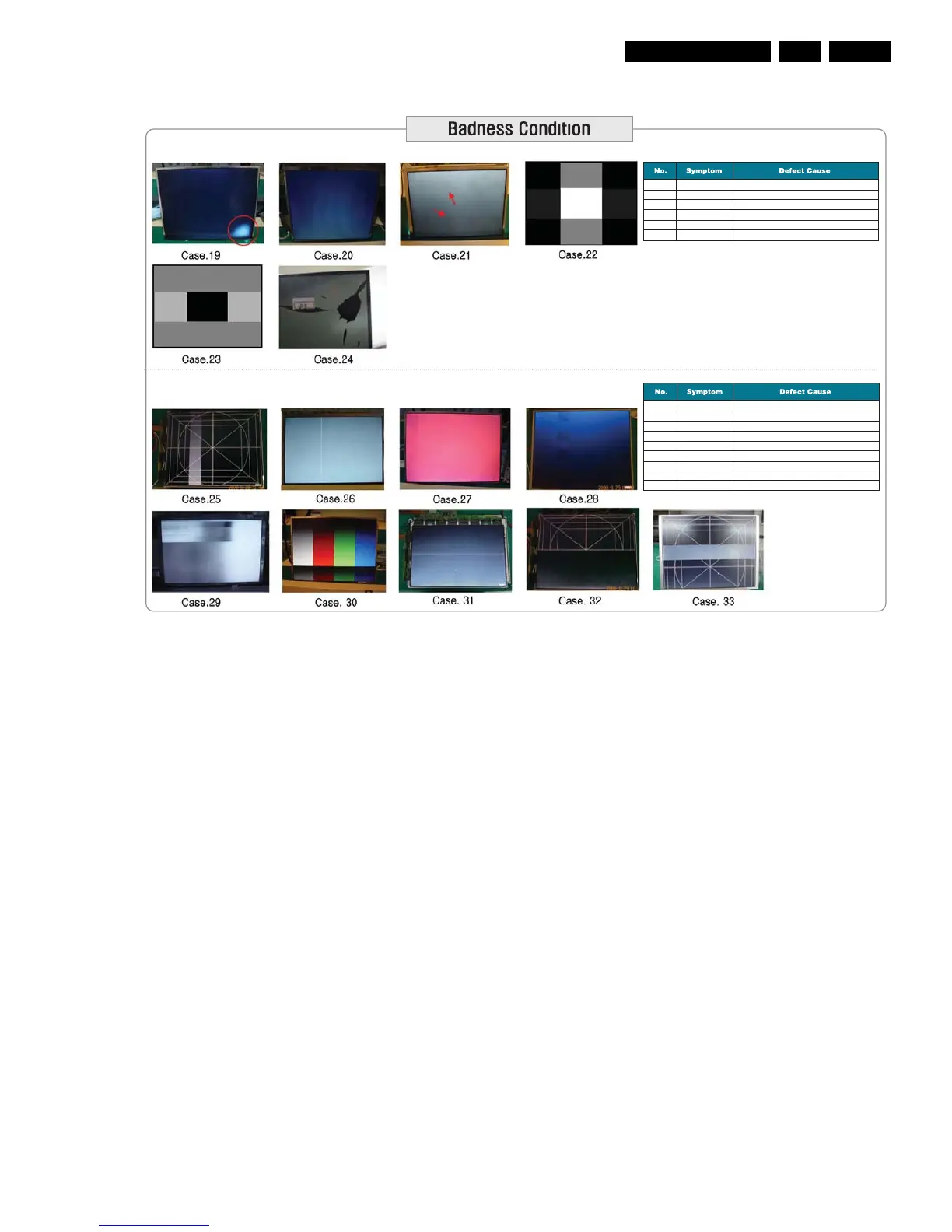

Figure 5-2 Symptom/Cure overview (part 2)
Case 19 Panel Mura CELL Defect
Case 20 Panel Mura CELL Defect
Case 21 Panel Mura Press damage
Case 22 Crosstalk CELL Defect
Case 23 Crosstalk CELL Defect
Case 24 Panel Mura Press damage
Case 25 Vertical-block D-IC Crack / TCP/COF abnormal bonding
Case 26 Vertical-line D-IC abnormal output
Case 27 Vertical-block D-IC Crack / TCP/COF abnormal bonding
Case 28 Vertical-block D-IC Crack / TCP/COF abnormal bonding
Case 29 Horizontal-block D-IC Crack / TCP/COF abnormal bonding
Case 30 Horizontal-block D-IC Crack / TCP/COF abnormal bonding
Case 31 Horizontal-line D-IC abnorm
al output
Case 32 Horizontal-block D-IC Crack / TCP/COF abnormal bonding
Case 33 Horizontal-block D-IC Crack / TCP/COF abnormal bonding
- Exchange Source TAB : Case 25~ Case28
- Exchange Gate TAB : Case 29~ Case33
- Unrepairable : Case.19~ Case24
