9.10.4 Diagram B05A, B05C, Type SVP WX68 (IC7C01), Trident Video processor

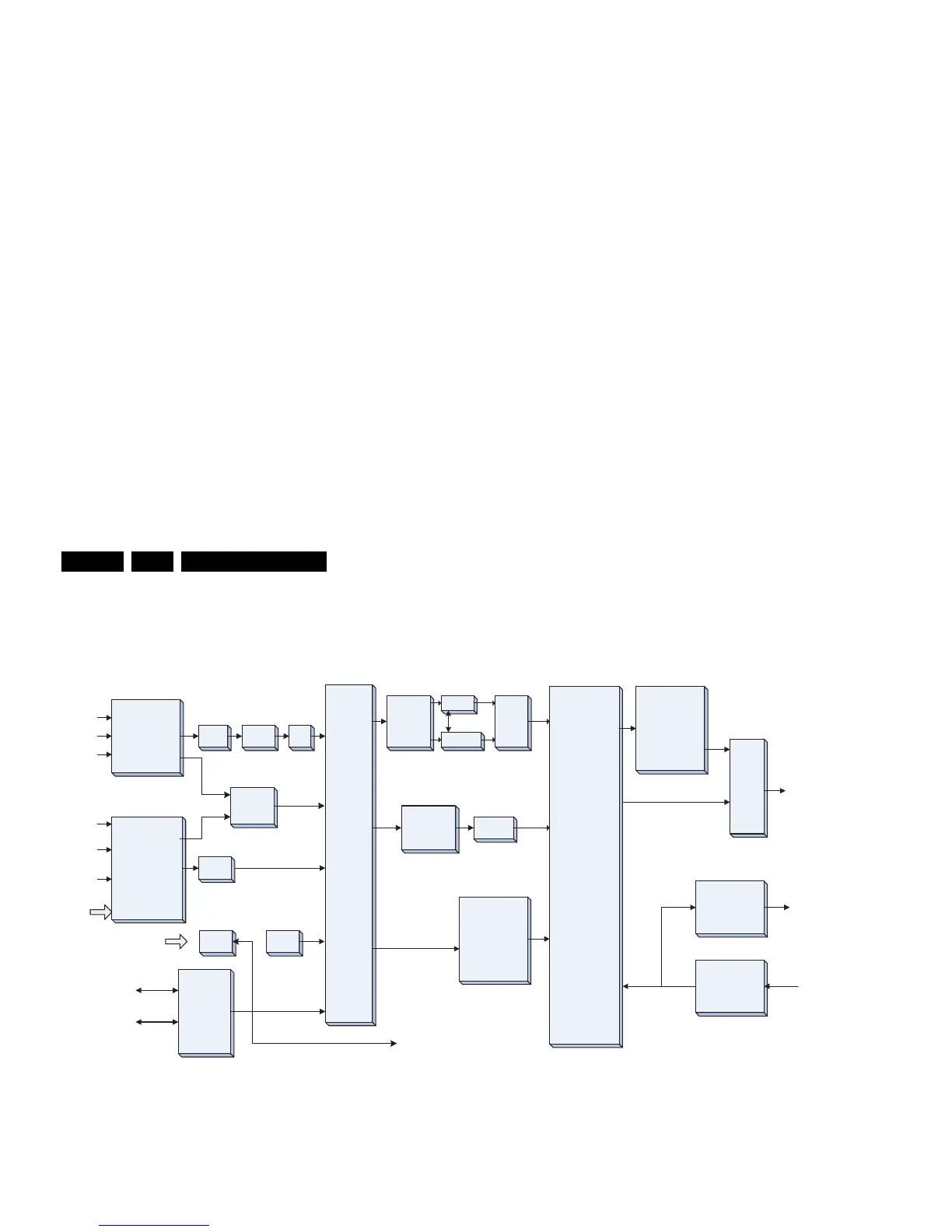

Figure 9-14 Internal block diagram
Block Diagram
H_17370_076.eps
100807
NTSC/PAL/
SECAM
3D Comb
Decoder/
Motion
Adaptive De-
interlacing
ICSC
CPU &
OSD
Interface
CVBS1
CVBS1
S-Video
YPbPr
SXGA RGB
(1280x1024/
60)
8 bit
Digita
l RGB
Hsync/
Vsync
I2C
8 bit Add/Data
Frame
Buffer
Controller
Frame
Rate
Converter
Deinterlacer
3:2/2:2 pull
down
Deinterlace
VBI/OSD/
TELETEXT
Display
Auto Color
Adjustment
ICSC
Blender
Chroma Key
VM Control
H&V Voltage
Protection
Gamma LUT
10 bit
LVDS
CRTC/DPLL
Clock PLL
Auto Mode/Auto
Tune/Auto
Phase
LVDS
H Sync
V Sync
Crystal
BMNR NR
ICSC
Luma
chroma
Cubic4
Scalar
Cubic4
scalar
HDMI HDCP
HDMI
Differential
Signals
I2S SPDIF
ME/MC
